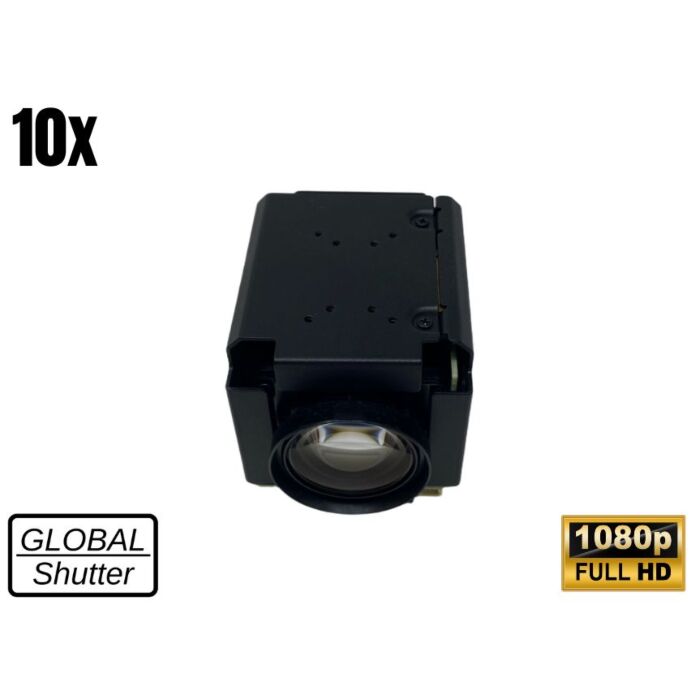

Block Cameras ML-KX10GS (MLKX10GS) 1/3" Sony Pregius Global Shutter CMOS, 3.2MP, 60fps, 10x Optical Zoom, H.265/H.264/MJPEG, Quadruple IP Streaming

The Block Cameras ML-KX10GS is engineered with a 1/3” Sony Pregius global shutter CMOS sensor, delivering precise 3.2MP total resolution (2064 x 1592) and effective Full HD 1920 x 1080 output. Capable of 60/50fps and 30/25fps streaming, the ML-KX10GS ensures smooth motion capture with minimal rolling artifacts, making it ideal for high-speed imaging applications. The 10x optical zoom (4.8–48mm, F1.7–F3.1) delivers wide to narrow fields of view from 62° down to 7.6°, with advanced DC auto iris control and minimum illumination of 0.03 Lux (color) or 0 Lux with IR. With WDR, 2D/3D DNR, BLC, HLC, Defog, DIS, and day/night IR cut filter switching, the camera provides optimized clarity across dynamic lighting environments.

Networking and video output are equally powerful, supporting quadruple IP streaming (H.265, H.264, MJPEG) with bitrates from 512–15,000 kbps. Control protocols include Onvif and RESTful API, ensuring seamless integration across surveillance and vision systems. The ML-KX10GS also includes 256 zoom/focus presets, motion detection (32 × 18 cells), AI-based human/vehicle detection (TBD), privacy masking (up to 8 zones), and OSD controls. Connectivity is robust with 1 alarm input, 1 alarm output, D&N external input, PWM lighting output, UART, and microSD storage up to 2TB. Designed for compact integration at 47 × 47 × 64.4 mm, 155g, the module operates from -10°C to +50°C while consuming only 3.6W @ 12VDC.

Features:

• 1/3” Sony Pregius global shutter CMOS sensor
• 3.2MP total pixels, 1920 × 1080 effective resolution
• 60/50fps, 30/25fps full HD streaming
• 10x optical zoom (4.8–48mm, F1.7–F3.1)
• Quadruple streaming (H.265 / H.264 / MJPEG)
• WDR, 2D/3D DNR, BLC, HLC, Defog, DIS
• Auto/Manual exposure & white balance
• 256 zoom/focus presets
• Onvif & RESTful API support
• Privacy masks, motion detection, AI detection (TBD)
• Audio I/O (G.711, Line In/Out)
• Alarm I/O, PWM, UART, microSD up to 2TB
• Compact size: 47 × 47 × 64.4 mm, 155g
• Low power: Max 3.6W @ 12VDC

Applications:

• Industrial machine vision
• Intelligent traffic monitoring
• UAV / drone payloads
• Remote surveillance & security
• Robotics and automation vision
• Broadcast and live event coverage
• AI-enabled human/vehicle tracking
• Low-light imaging environments
