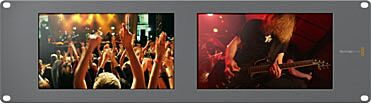

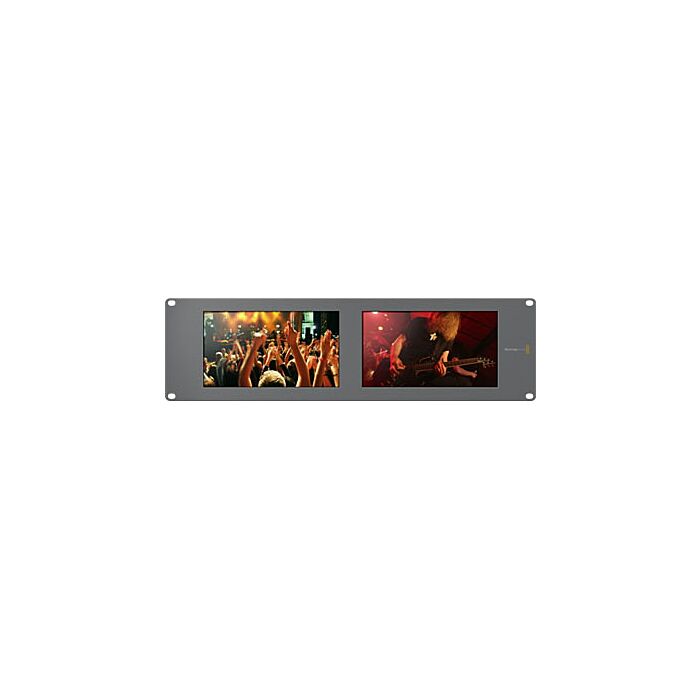

Blackmagic SmartView Duo

Featuring two large independent eight inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need.


  • 3G/HD/SD-SDI Inputs, Both with Loop-Out
  • Integrated Tally for Live Broadcast
  • Ethernet Input for Adjustments
  • Upgradeable Firmware via USB
  • 2K, 1080i/p, 720p & 50/60 Hz SD Support
  • 10-Bit Color & 4:2:2 / 4:4:4 Sampling
  • 800 x 480 Resolution

  • Applications:

  • Broadcasting
  • Large Events
  • Professional AV
  • Post Production
  • Camera Monitoring for Switchers
  • SDI Video Input
    Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
    Updates and Configuration
    Via USB 2.0 high speed (480 Mb/s)
    9-pin D connector
    10/100 BaseT with loop through.
    Multi Rate Support
    Auto detection of 2K, HD or standard definition inputs.
    SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M.
    SDI Auto Switching
    Automatically selects between SD, HD and 3 Gb/s SDI.
    SDI Format Support
    525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25
    SDI Color Space
    REC 601, REC 709
    Video Sampling
    4:2:2 and 4:4:4
    Internal Software Upgrade
    Via included firmware updater software.
    Settings Control
    Via USB or Ethernet.
    Display Element
    TFT Active Matrix LCD.
    Display Resolution
    800 x 480 pixels
    < 15 ms
    Contrast Ratio
    Typically 500:1
    Color Depth
    16.7 Million Colors
    Display Orientation
    Displays can rotate upside down for optimum viewing angle.
    Power Supply
    12V universal power supply included with international socket adapters for all countries.
    Power Consumption
    < 20 Watts
    Operational Voltage Range
    12V - 15V
    Dimensions (H x W)
    482mm x 133mm
    Operating Temperature
    0° to 40° C (32° to 104° F)
    Storage Temperature
    -20° to 45° C (-4° to 113° F)
    Relative Humidity
    0% to 90% non-condensing
