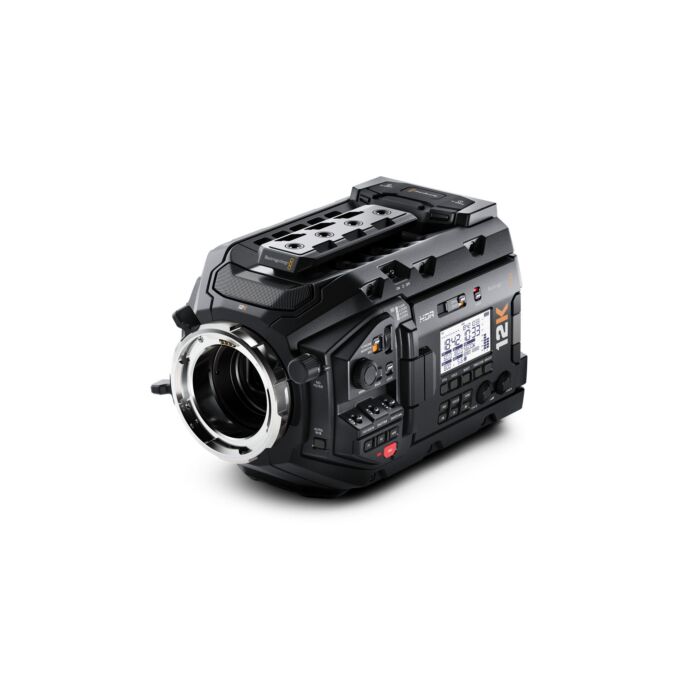

Blackmagic Design URSA Mini Pro 12K OLPF Digital Film Camera
SKU
URSA Mini Pro 12K OLPF
Quick Overview
*Please note this product is subject to tariff fee*
The Blackmagic Design URSA Mini Pro 12K OLPF features a 12K Super 35 sensor, 14 stops of dynamic range, advanced Blackmagic RAW codecs, and frame rates up to 240 fps. Equipped with interchangeable PL lens mount, dual CFast/SD card slots, USB-C for external recording, built-in ND filters, and DaVinci Resolve Studio, this camera redefines high-resolution filmmaking.The Blackmagic Design URSA Mini Pro 12K OLPF redefines digital filmmaking with its 12,288 x 6480 Super 35 sensor, delivering stunning 80-megapixel frames with 14 stops of dynamic range. Featuring advanced Generation 5 color science, this camera is built for cinematic quality, supporting resolutions from 12K DCI to 4K Super16. With frame rates up to 60 fps in full 12K, 120 fps in 8K, and 240 fps in 4K Super16, it offers unparalleled versatility for high-end productions. Built-in ND filters (clear, 2-stop, 4-stop, and 6-stop) ensure precise exposure control, while the interchangeable PL lens mount supports advanced lens compatibility, with optional EF and F mounts available.
The camera supports dual CFast and SD UHS-II cards for flexible recording, along with USB-C connectivity for direct-to-disk recording. Blackmagic RAW codecs ensure optimized data rates and exceptional image quality, from Q0 for maximum fidelity to 18:1 for efficient storage. A 4-inch touchscreen, integrated stereo microphones, 12G-SDI inputs/outputs, and XLR audio with phantom power deliver comprehensive functionality. The included DaVinci Resolve Studio enables seamless editing and color grading, making the URSA Mini Pro 12K OLPF a complete solution for high-resolution, professional filmmaking.
Features:
- 12K Super 35 Sensor: 12,288 x 6480 resolution, 14 stops dynamic range.
- Frame Rates: Up to 60 fps in 12K, 120 fps in 8K, 240 fps in 4K Super16.
- Lens Mount: Interchangeable PL mount, optional EF and F mounts.
- Built-in ND Filters: Clear, 2-stop, 4-stop, 6-stop IR ND.
- Recording Options: Dual CFast 2.0, SD UHS-II, USB-C direct-to-disk.
- Blackmagic RAW: Q0 to 18:1 compression for flexible quality and storage.
- Connectivity: 12G-SDI input/output, USB-C, dual XLR with phantom power.
- Touchscreen: 4-inch capacitive LCD for settings and focus.
- Included Software: DaVinci Resolve Studio for editing and grading.
Applications:
- Feature film production with cinematic 12K resolution.
- Visual effects workflows requiring high-resolution imagery.
- High-speed cinematography with up to 240 fps in 4K.
- Professional post-production, editing, and color grading.
- Live studio setups with 12G-SDI and Blackmagic SDI Camera Control.
- Documentary filmmaking with flexible recording formats and frame rates.
- Commercials and advertising requiring exceptional detail and color fidelity.
- Scientific imaging and archival projects needing ultra-high resolution.
| Effective Sensor Size | 27.03mm x 14.25mm (Super35) |
| Lens Mount | PL mount included. Interchangeable with optional EF and F lens mounts. |
| Lens Control | 12-pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount. |
| Dynamic Range | 14 Stops |
| Shooting Resolutions |
|
| Frame Rates | Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps supported. |
| High Speed Frame Rates |
|
| Built-in ND Filters | Four-position ND filter wheel with clear, 2-stop, 4-stop, and 6-stop IR ND filters. |
| Focus | Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses. Instant auto iris settings available on compatible lenses to ensure no pixel is clipped in film mode. |
| Screen Dimensions | 4-inch |
| Screen Type | LCD capacitive touchscreen |
| Metadata Support | Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using the optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take, and special notes. |
| Controls | Touchscreen menus on 4-inch screen. Push buttons for other controls. 3 assignable shortcut keys. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
| Connections |
|
| Microphone | Integrated stereo microphone |
| Built-in Speaker | 1 x mono speaker. |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit |
| Media | 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. Please refer to the Manual or the Information |
| Alternative Media | 1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder. |
| Supported Codecs | Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Bitrate 18:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5. |
| External Control | Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control. |
| Talkback | SDI Channels 15/16 and iPhone headset. |
| Live Tally Indicator | Tally on LCD, URSA Viewfinder, and URSA Studio Viewfinder. |
| Storage Type | 2 x CFast 2.0 2 x SD UHS-II cards 1 x high-speed USB-C expansion port for external media. |
| 12K Full Sensor | Blackmagic RAW 5:1 - 578 MB/s Blackmagic RAW 8:1 - 361 MB/s Blackmagic RAW 12:1 - 241 MB/s Blackmagic RAW 18:1 - 160 MB/s Blackmagic RAW Q0 - 289 to 1,156 MB/s Blackmagic RAW Q1 - 241 to 963 MB/s Blackmagic RAW Q3 - 145 to 722 MB/s Blackmagic RAW Q5 - 97 to 413 MB/s |
| 8K Full Sensor | Blackmagic RAW 5:1 - 257 MB/s Blackmagic RAW 8:1 - 161 MB/s Blackmagic RAW 12:1 - 107 MB/s Blackmagic RAW 18:1 - 71 MB/s Blackmagic RAW Q0 - 257 to 642 MB/s Blackmagic RAW Q1 - 214 to 428 MB/s Blackmagic RAW Q3 - 107 to 321 MB/s Blackmagic RAW Q5 - 81 to 257 MB/s |
| 6K Super 16 | Blackmagic RAW 5:1 - 146 MB/s Blackmagic RAW 8:1 - 91 MB/s Blackmagic RAW 12:1 - 61 MB/s Blackmagic RAW 18:1 - 40 MB/s Blackmagic RAW Q0 - 73 to 291 MB/s Blackmagic RAW Q1 - 61 to 242 MB/s Blackmagic RAW Q3 - 37 to 182 MB/s Blackmagic RAW Q5 - 25 to 104 MB/s |
| 4K Full Sensor | Blackmagic RAW 5:1 - 161 MB/s Blackmagic RAW 8:1 - 107 MB/s Blackmagic RAW 12:1 - 80 MB/s Blackmagic RAW 18:1 - 53 MB/s Blackmagic RAW Q0 - 161 to 268 MB/s Blackmagic RAW Q1 - 107 to 214 MB/s Blackmagic RAW Q3 - 81 to 179 MB/s Blackmagic RAW Q5 - 54 to 161 MB/s |
| 4K Super 16 (240 fps) | Blackmagic RAW 5:1 - 648 MB/s Blackmagic RAW 8:1 - 405 MB/s Blackmagic RAW 12:1 - 271 MB/s Blackmagic RAW 18:1 - 180 MB/s Blackmagic RAW Q0 - 648 to 1,618 MB/s Blackmagic RAW Q1 - 540 to 1,079 MB/s Blackmagic RAW Q3 - 271 to 810 MB/s Blackmagic RAW Q5 - 203 to 648 MB/s |
| Recording Formats | Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1, and 18:1 Resolutions: 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704, and 2560 x 2136. Data stored as 12-bit non-linear with film, extended video, video, or custom 3D LUT embedded in metadata. |
| Software Included | Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK, Blackmagic RAW Speed Test |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Power Supply | 1 x External 12V power supply. 12 pin Molex connector for rear battery plate. |
| External Power Input | 1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. |
| Power | Rear camera mount compatible with industry standard V-mount or gold mount battery plates. |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic URSA Mini Pro 12K OLPF Body, Turret dust cap, PL lens mount, Power supply, DaVinci Resolve Studio activation key |
