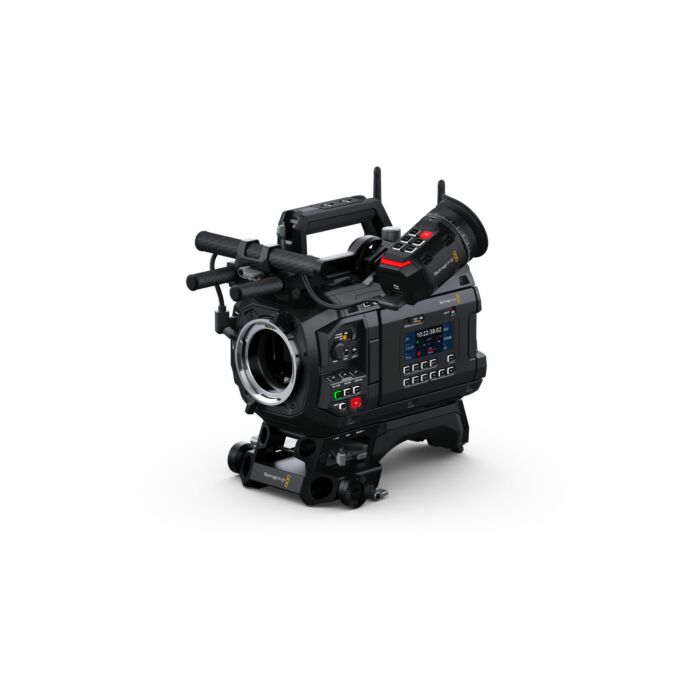

Blackmagic Design URSA Cine 17K 65 + EVF Digital Film Camera
SKU
URSA Cine 17K 65 + EVF
Quick Overview
*Please note this product is subject to tariff fee*
The Blackmagic URSA Cine 17K 65 camera delivers unparalleled 17K resolution with a 65mm RGBW sensor, 16 stops of dynamic range, and flexible lens mounting options (PL, EF, LPL). Featuring 8TB of removable storage, 10Gb Ethernet, dual 5-inch HDR LCD screens, and an OLED EVF, this camera supports up to 170fps in 8K and offers seamless media management with Blackmagic Cloud integration.The Blackmagic Design URSA Cine 17K 65 features a powerful 17,520 x 8,040 65mm RGBW sensor with 2.9 micron pixel pitch and 16 stops of dynamic range. This delivers exceptional detail and dynamic range, even in low-light conditions. With interchangeable PL, LPL, and EF lens mounts, the camera supports a wide variety of lenses, and offers precise focus peaking and auto-focus control (for compatible lenses). The camera supports high-speed frame rates up to 170fps in 8K and includes 8TB of removable high-performance media for large-scale, high-res productions.
Connectivity is streamlined with 10Gb Ethernet, Wi-Fi, and USB-C ports for seamless media transfer and remote control. The dual 5" 1920x1080 LCD screens and OLED EVF (1920x1080, 6.22M dots) offer bright, accurate monitoring, even in challenging lighting conditions. With XLR inputs, 3.5mm audio out, and highly accurate timecode clock (less than 1-frame drift), this camera integrates perfectly into professional audio workflows.
The Blackmagic RAW codec ensures efficient recording with data rates of up to 1,700 MB/s at 17K. With built-in support for FTP, Web Media Manager, and SMB file sharing, this camera is optimized for fast, flexible post-production.
Features:
- 17,520 x 8,040 65mm RGBW sensor for exceptional image resolution
- 2.9 micron pixel pitch for enhanced photo-site accuracy
- 16 stops of dynamic range for superior contrast and detail
- Interchangeable PL, LPL, and EF lens mounts for flexible lens options
- High-speed frame rates up to 170 fps at 8K resolution
- Built-in 8TB removable media module for high-capacity storage
- 10Gb Ethernet and Wi-Fi for fast media upload and remote control
- Dual 5” 1920x1080 HDR LCD monitors for accurate color and brightness
- OLED EVF with 1920 x 1080 resolution and 6.22 million dots
- Real-time metadata support for automatic lens data and camera settings
- 2 x XLR analog audio inputs and 3.5mm audio output for professional audio integration
- USB-C outputs for video, power, and camera control
- Timecode clock with less than 1-frame drift every 8 hours
- Blackmagic RAW recording with variable bitrates up to 1,700 MB/s at 17K
- Built-in FTP, Web Media Manager, SMB file sharing for efficient file management
Applications:
- High-end film production
- Broadcasting
- Commercial video production
- Post-production workflows
- Live streaming and broadcasting
- Virtual production and VFX
- Remote camera control setups
- Cinematic content creation
| Effective Sensor Size | 50.81 mm x 23.32 mm (65mm Format) |
| Pixel Pitch | 2.9 microns |
| Lens Mount | PL mount. Interchangeable with URSA Cine Mount LPL included. |
| Lens Control | Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses. |
| Dynamic Range | 16 Stops |
| Shooting Formats | 17,520 x 8,040 (17K 2.2:1 open gate) 16,128 x 8,040 (17K 2:1) 15,360 x 8,040 (17K 17:9) 14,304 x 8,040 (17K 16:9) 17,520 x 7,296 (17K 2.4:1) 12,288 x 8,040 (12K 3:2) 12,288 x 6,480 (12K 16:9) 12,288 x 6,912 (12K 17:9) 12,288 x 5,112 (12K 2.4:1) 9,648 x 8,040 (12K 6:5) 11,680 x 5,360 (8K 2.2:1 open gate) 10,752 x 5,360 (8K 2:1 full height) 8,192 x 5,360 (8K 3:2) 8,192 x 4,608 (8K 16:9) 8,192 x 4,320 (8K 17:9) 8,192 x 3,408 (8K 2.4:1) 5,840 x 2,680 (4K 2.2:1 open gate) 5,376 x 2,680 (4K 2:1 full height) 4,096 x 2,680 (4K 3:2) 4,096 x 2,304 (4K 16:9) 4,096 x 2,160 (4K 17:9) 4,096 x 1,704 (4K 2.4:1) |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. |
| High Speed Frame Rates | 17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps |
| Built-in ND Filters | None |
| Focus | Focus button turns on peaking, auto-focus available using compatible lenses. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. |
| Screens | 2 x Monitoring Screens 1 x Camera Status Screen 1 x Electronic Viewfinder |
| Monitoring Screen Dimensions | 5 inches. |
| Monitoring Screen Resolution | 1920px x 1080px |
| Monitoring Screen Brightness | 1500 nits. |
| Monitoring Screen Type | LCD capacitive touchscreen |
| EVF Display Resolution | Full 1920 x 1080. 6.22 Million dots |
| EVF Display Type | OLED |
| EVF Diopter Range | -5 to +5 |
| Tally | Live Tally Indicator on LCD, and URSA Cine EVF. |
| Metadata Support | Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. |
| Controls | Touchscreen menus on 5-inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on URSA Cine EVF. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
| Total Video Outputs | 2 |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line, and AES audio. Phantom power support. |
| Analog Audio Outputs | 1 x 3.5mm headphone jack |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. |
| Viewfinder | 1 x Viewfinder USB-C with video, power, camera control data, and locking connector. Works with URSA Cine EVF and PYXIS Monitor. |
| USB-C Monitor Outputs | 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor, or DisplayPort monitors. |
| URSA Cine EVF | 1 x USB-C with power, data, video, and locking connector. |
| Accessories | 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. |
| Computer Interface | 2 x USB-C side expansion ports for camera accessories. |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control, and streaming. |
| Microphone | Integrated stereo microphone. |
| Built-in Speaker | 1 x mono speaker. |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit |
| Media | 1 x Blackmagic Media Module |
| Media Format | Blackmagic |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Bitrate 18:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5. H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
| External Control | Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses. |
| Direct Streaming | Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using Ethernet, WiFi, or USB-C cellular data. |
| NTP | Network time protocol support for syncing camera time with any NTP server when connected to a network. |
| FTP | Download files from any drive attached to your camera using FTP. |
| Web Media Manager | Access, browse, download, and delete files from any drive connected to the camera via a browser connected over Ethernet. |
| SMB | File sharing using SMB. |
| Storage Type | 1 x Blackmagic Media Module 8TB |
| Storage Rates (17K) | Blackmagic RAW 3:1 - 1,700 MB/s, 8:1 - 637 MB/s, 12:1 - 425 MB/s, 18:1 - 283 MB/s, Q0 - 425 to 2,040 MB/s, Q1 - 255 to 1,020 MB/s, Q3 - 170 to 425 MB/s, Q5 - 127 to 319 MB/s |
| Storage Rates (12K) | Blackmagic RAW 3:1 - 1,194 MB/s, 8:1 - 448 MB/s, 12:1 - 298 MB/s, 18:1 - 199 MB/s, Q0 - 298 to 1,432 MB/s, Q1 - 179 to 716 MB/s, Q3 - 119 to 298 MB/s, Q5 - 90 to 224 MB/s |
| Storage Rates (8K) | Blackmagic RAW 3:1 - 533 MB/s, 5:1 - 320 MB/s, 8:1 - 200 MB/s, 12:1 - 133 MB/s, Q0 - 133 to 319 MB/s, Q1 - 80 to 200 MB/s, Q3 - 53 to 133 MB/s, Q5 - 40 to 100 MB/s |
| Storage Rates (4K) | Blackmagic RAW 3:1 - 135 MB/s, 4:1 - 101 MB/s, 5:1 - 81 MB/s, 6:1 - 68 MB/s, Q0 - 34 to 81 MB/s, Q1 - 20 to 50 MB/s, Q3 - 13 to 34 MB/s, Q5 - 10 to 25 MB/s |
| Recording Formats | Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:[17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296]with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:[12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040]with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:[8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360]with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:[4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680]with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. |
| Software Included | URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK |
| Operating Systems | Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Power Supply | +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket.Molex connector for rear battery plate. |
| External Power Input | 1 x 8 pin Lemo compatible socket for external power or battery use.B-Mount battery plate. |
| Power Output | 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply.1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply.B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
| Optional Accessories | Blackmagic URSA Cine EVFBlackmagic PYXIS MonitorBlackmagic PYXIS Monitor KitBlackmagic URSA Cine Mount PLBlackmagic URSA Cine Mount EF (for limited shooting formats)Blackmagic URSA Cine Mount HCBlackmagic URSA Cine Mount ShimsBlackmagic URSA Cine Battery Plate B MntBlackmagic URSA Cine Battery Plate GoldBlackmagic URSA Cine Battery Plate VLockBlackmagic URSA Cine Baseplate 15Blackmagic URSA Cine Baseplate 19Blackmagic URSA Cine HandleBlackmagic URSA Cine GripsBlackmagic URSA Cine 5" LCD SunshadeBlackmagic Media DockBlackmagic Media Module 8TBBlackmagic Media Module CFATEM Streaming Bridge |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic URSA Cine 17K 65 camera with PL lens mount Blackmagic Media Module 8TB Blackmagic Media Module Case Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi antennas Blackmagic URSA Cine Mount LPL and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic PL Body Cap Blackmagic LPL Body Cap Plastic folding screen hood for 5” LCD Blackmagic URSA Cine EVF Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Extension 2 short carbon fibre 15mm rods 1 x long USB viewfinder cable. Right angle to straight 1 x short USB viewfinder cable. Right angle to straight 1 x short USB viewfinder cable. Right angle to right angle Rubber eyecup Fabric eye chamois DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Blackmagic Sticker Blackmagic Design Sticker Pelican 1510 Case with custom foam |
