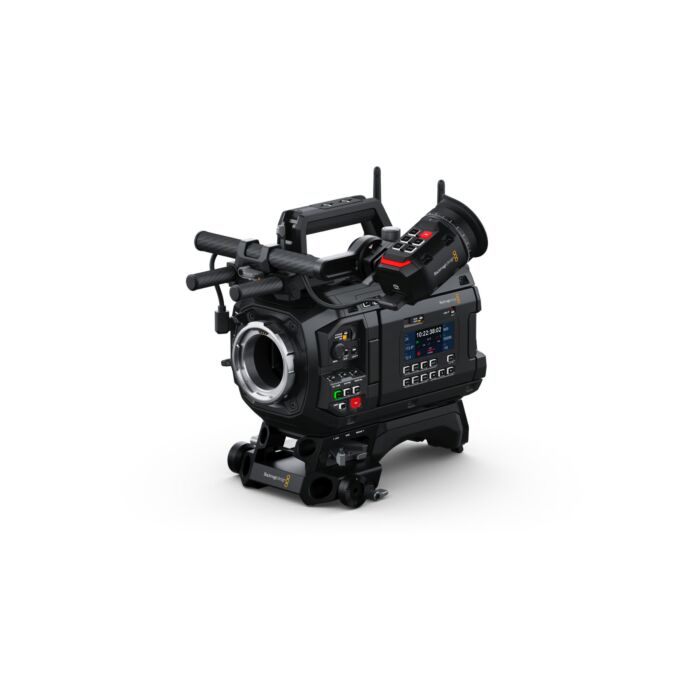

Blackmagic Design URSA Cine 12K LF + EVF Digital Film Camera
SKU
URSA Cine 12K LF + EVF
Quick Overview
*Please note this product is subject to tariff fee*
The Blackmagic URSA Cine 12K LF + EVF delivers cinematic excellence with its 12K RGBW large format sensor, 16 stops of dynamic range, and 8TB removable storage. With high-speed recording (up to 144fps), interchangeable lens mounts, built-in ND filters, and advanced connectivity, this camera is designed for high-end film production.The Blackmagic URSA Cine 12K LF + EVF camera combines cutting-edge technology for high-performance film production. Featuring a 36 x 24mm RGBW sensor with 2.9-micron pixel pitch and 16 stops of dynamic range, this camera captures stunning detail in 12K resolution (up to 12,288 x 8040), offering exceptional flexibility in framing with various aspect ratios. It supports frame rates up to 120fps at 12K and 144fps at 8K. The integrated 8TB Blackmagic Media Module provides ample storage space for high-bit-depth recordings, while the built-in ND filters (2, 4, 6-stop IR) give precise control over exposure.
With interchangeable PL and EF lens mounts, 5” HDR touchscreen (1500 nits brightness), and a high-definition OLED EVF (1920 x 1080), this camera is designed for professional cinematographers. Connectivity options like 10Gb Ethernet, Wi-Fi, and USB-C support high-speed media transfer, live streaming (SRT, RTMP), and remote camera control. Dual SDI outputs, XLR audio inputs, and automatic metadata recording ensure seamless integration into professional production environments. Ideal for film, broadcast, and live streaming, the URSA Cine 12K LF provides everything needed for demanding shoots.
Features:
- Sensor: 36 x 24mm RGBW, 2.9 microns, 16 stops dynamic range
- Resolution: 12K (12,288 x 8040), 9K, 8K, 4K
- Frame Rates: Up to 120fps (12K), 144fps (8K)
- Lens Mount: PL, EF mount included
- Storage: 8TB Blackmagic Media Module
- ND Filters: Built-in 2, 4, 6-stop IR
- Display: 5" HDR touchscreen, 1920 x 1080, 1500 nits
- Viewfinder: OLED, 1920 x 1080, 6.22 million dots
- Audio: 2 x XLR inputs, 1 x 3.5mm headphone jack
- Networking: 10Gb Ethernet, Wi-Fi, USB-C for streaming
- Recording: Blackmagic RAW 3:1, 8:1, 12:1, H.264 proxies
- Power: +24V DC external, B-Mount battery plate
- Controls: Touchscreen, assignable shortcut keys
- Metadata: Lens data, camera settings auto-record
Applications:
- Film Production: 12K resolution for cinematic quality
- Live Streaming: SRT/RTMP support via Ethernet/Wi-Fi
- High-Speed Capture: 120fps at 12K, 144fps at 8K
- Broadcast: 1080p, Ultra HD video standards
- Media Management: Web access, FTP, SMB file sharing
- Cinematic Workflow: Metadata recording for lens data
| Effective Sensor Size | 35.64mm x 23.32mm (Large Format) |
| Pixel Pitch | 2.9 microns |
| Lens Mount | PL mount, Interchangeable with URSA Cine lockable EF mount |
| Lens Control | Control of compatible EF lenses, PL lens data and control |
| Dynamic Range | 16 Stops |
| Shooting Formats | 12K, 9K, 8K, 4K resolutions in various aspect ratios (3:2, 16:9, 17:9, 2.4:1, 6:5) |
| Frame Rates | Project frame rates: 23.98 to 60 fps; High-speed up to 224 fps (8K/4K) |
| Built-in ND Filters | 2, 4, 6-stop IR ND filters |
| Focus | Peaking, autofocus with compatible lenses |
| Iris Control | Manual iris adjustment, auto iris for compatible lenses |
| Screens | 2 x Monitoring screens, 1 x EVF, 1 x Camera status screen |
| Monitoring Screen | 5-inch LCD touchscreen, 1920 x 1080, 1500 nits brightness |
| EVF Display | OLED, 1920 x 1080, 6.22 million dots, diopter range: -5 to +5 |
| Tally | Live Tally Indicator on LCD and EVF |
| Metadata Support | Lens data, camera settings, slate data (project, scene, take) |
| Controls | Touchscreen menus, 7 assignable shortcut keys, EVF controls |
| Timecode Clock | < 1 frame drift every 8 hours |
| Total Video Outputs | 2 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| Analog Audio Inputs | 2 x XLR (switchable mic, line, AES), Phantom power support |
| Analog Audio Outputs | 1 x 3.5mm headphone jack |
| Reference Inputs | Tri-Sync/Black Burst, Timecode |
| Viewfinder | 1 x USB-C (video, power, camera control, locking connector); Compatible with URSA Cine EVF and PYXIS Monitor |
| USB-C Monitor Outputs | 2 x USB-C (URSA Cine EVF, PYXIS Monitor, DisplayPort) |
| URSA Cine EVF | 1 x USB-C (power, data, video, locking connector) |
| Accessories | 1 x 7-pin Lemo ‘EXT’ (power out, serial communication, run/stop) 1 x 3-pin Fischer ‘RS’ (power out, run/stop) |
| Computer Interface | 2 x USB-C (camera accessories), software updates via rear USB-C |
| Ethernet | 1 x 10Gb/s RJ-45 (SMB file sharing, Web Media Management, camera control) |
| Microphone | Integrated stereo microphone |
| Built-in Speaker | 1 x mono speaker |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz, 24 bit |
| Media | 1 x Blackmagic Media Module |
| Media Format | Blackmagic |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1, 18:1 Blackmagic RAW Constant Quality Q0, Q1, Q3, Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
| External Control | Blackmagic URSA Cine EVF triggers record + camera functions assigned to VF1, VF2, VF3, Zoom, Exp, Record buttons External control via REST API (Ethernet, WiFi), serial communication (7-pin Lemo) Run/Stop via 3-pin Fischer and 7-pin Lemo iPad control, Bluetooth control supported Blackmagic Zoom Demand, Focus Demand |
| Direct Streaming | Supports SRT (Secure Reliable Transport), RTMP (Real-Time Messaging Protocol) streaming Local live streaming via Ethernet/WiFi, global live streaming via Ethernet/WiFi/USB-C cellular data |
| NTP | Network time protocol support for syncing camera time with any NTP server |
| FTP | Download files from any drive attached to the camera using FTP |
| Web Media Manager | Access, browse, download, and delete files from any connected drive using a browser over Ethernet |
| SMB | File sharing via SMB |
| Storage Type | 1 x Blackmagic Media Module 8TB |
| Storage Rates (12K - 12,288 x 8040) | Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 298 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 298 to 1,432 MB/s Blackmagic RAW Q1 - 179 to 716 MB/s Blackmagic RAW Q3 - 119 to 298 MB/s Blackmagic RAW Q5 - 90 to 224 MB/s |
| Storage Rates (9K - 9,408 x 6,264) | Blackmagic RAW 3:1 - 713 MB/s Blackmagic RAW 8:1 - 268 MB/s Blackmagic RAW 12:1 - 178 MB/s Blackmagic RAW 18:1 - 119 MB/s Blackmagic RAW Q0 - 178 to 856 MB/s Blackmagic RAW Q1 - 107 to 428 MB/s Blackmagic RAW Q3 - 71 to 178 MB/s Blackmagic RAW Q5 - 54 to 134 MB/s |
| Storage Rates (8K - 8,192 x 5,360) | Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 133 to 319 MB/s Blackmagic RAW Q1 - 80 to 200 MB/s Blackmagic RAW Q3 - 53 to 133 MB/s Blackmagic RAW Q5 - 40 to 100 MB/s |
| Storage Rates (4K - 4,096 x 2,680) | Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 34 to 81 MB/s Blackmagic RAW Q1 - 20 to 50 MB/s Blackmagic RAW Q3 - 13 to 34 MB/s Blackmagic RAW Q5 - 10 to 25 MB/s |
| Recording Formats | Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112], [9,648 x 8,040] Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864], [7,680 x 6,408] Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408], [6,432 x 5,360] Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3, and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704], [3,216 x 2,680] |
| Software Included | URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows (including activation key) Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK |
| Operating Systems | Mac macOS 13.0 Ventura, macOS 14.0 Sonoma or later. Windows Windows 10 and 11. |
| Power Supply | +24V DC external power supply (100 - 240 AC, 50/60Hz) compatible with IEC C14 socket. Molex connector for rear battery plate. |
| External Power Input | 1 x 8-pin Lemo compatible socket for external power or battery use. B-Mount battery plate. |
| Power Output | 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
| Optional Accessories | Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB Blackmagic Media Module CF ATEM Streaming Bridge |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic URSA Cine 12K LF camera with PL lens mount Blackmagic Media Module 8TB Blackmagic Media Module Case Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi antennas Blackmagic URSA Cine Mount EF and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic EF Body Cap Blackmagic PL Body Cap Plastic folding screen hood for 5” LCD Blackmagic URSA Cine EVF Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Extension 2 short carbon fibre 15mm rods 1 x long USB viewfinder cable (Right angle to straight) 1 x short USB viewfinder cable (Right angle to straight) 1 x short USB viewfinder cable (Right angle to right angle) Rubber eyecup Fabric eye chamois DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Blackmagic Design Sticker Pelican 1560 Case with custom foam |
