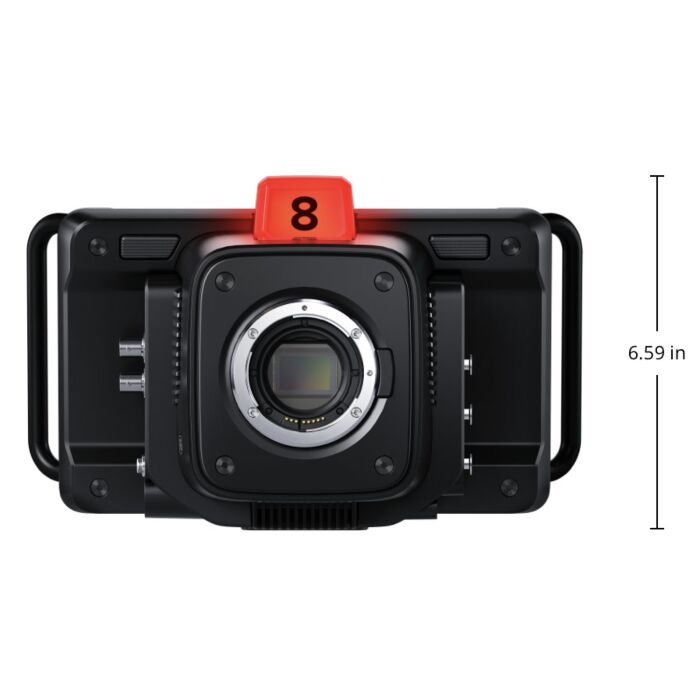

Blackmagic Design Studio 6K Pro Digital Film Camera
*Please note this product is subject to tariff fee*
Blackmagic Studio Camera 6K Pro offers 6K Super 35 imaging, EF lens mount, built-in ND filters, dual native ISO, 13-stop dynamic range, and direct RTMP streaming. Equipped with 12G-SDI, HDMI, and 10Gb Ethernet for streamlined connectivity in professional live productions.The Blackmagic Design Studio Camera 6K Pro is a high-performance digital film camera designed for professional live production environments. Equipped with a Super 35 sensor (23.10mm x 12.99mm), it delivers exceptional 6K resolution, capturing cinematic visuals with unmatched clarity. The EF lens mount provides compatibility with a wide range of lenses, offering enhanced flexibility in creative production. For optimized shooting in varying lighting conditions, the camera features built-in ND filters with four selectable stops, including clear, 2-stop, 4-stop, and 6-stop IR filters, ensuring smooth exposure control in bright environments.
With 12G-SDI, HDMI 2.0, and 10Gb Ethernet connectivity, the Studio Camera 6K Pro ensures seamless data transfer and allows for efficient SMPTE-compliant workflows with low-cost, single-cable connections. The camera supports a variety of frame rates, including up to 60fps in 6K and Ultra HD resolutions, and features a dynamic range of 13 stops and dual native ISO for enhanced low-light performance. Its 7-inch touchscreen provides a crisp, high-brightness display (2000 nits) for precise monitoring and control, while intuitive rotary dials and assignable function buttons streamline camera operation.
Additionally, this model integrates direct live streaming capability via RTMP, allowing instant broadcast to platforms such as YouTube, Twitch, and Facebook. The Studio Camera 6K Pro also supports external control via USB, Ethernet, and SDI, making it highly adaptable to complex production setups. Its extensive audio input/output options, including XLR analog and embedded SDI audio, ensure high-quality audio capture for professional sound integration.
Features:
- Sensor: 6K Super 35 (23.10mm x 12.99mm)
- Lens Mount: Active EF
- ND Filters: 4-position (Clear, 2-stop, 4-stop, 6-stop IR)
- Dynamic Range: 13 Stops
- Dual Native ISO: 0dB and 18dB
- Frame Rates: 23.98 to 60 fps (6K & Ultra HD)
- Connectivity: 12G-SDI, HDMI 2.0, 10Gb Ethernet
- Audio: 2x XLR, 3.5mm TRRS, SDI embedded
- Streaming: RTMP, Facebook, YouTube, Twitch, Vimeo
- Display: 7” LCD, 1920x1200, 2000 nits
- Control: Remote over SDI, HDMI, Ethernet
- Power: 12V DC, PoE, 32W–59W
- Storage: 2x USB-C, Blackmagic RAW codecs
Applications:
- Live production & broadcasting
- Studio cinematography
- Web streaming & content creation
- Professional video shoots
- Multi-camera setups
- Remote live control & management
| Effective Sensor Size | 23.10mm x 12.99mm (Super 35) |
| Lens Mount | Active EF mount |
| Lens Control | Iris, focus, zoom on supported lenses |
| Dynamic Range | 13 Stops |
| Dual Native ISO | 0dB and 18dB gain |
| Sensitivity at 0dB Gain | f11 with 2160p59.94, f12 with 2160p50 at 2,000 lux |
| Signal to Noise Ratio | 64.62dB for 2160p |
| Ultra HD Scaled from | 5.3K |
| Recording Resolutions | 6K, 5.3K, Ultra HD up to 60 fps |
| Frame Rates | 23.98–60 fps, off-speed 5-50 fps in 6K |
| Built-in ND Filters | Clear, 2-stop, 4-stop, 6-stop IR |
| Focus | Auto focus on compatible lenses |
| Screen Dimensions | 7" 1920 x 1200 |
| Screen Type | LCD capacitive touchscreen |
| Screen Brightness | 2000 nits |
| Controls | Touchscreen, rotary dial, assignable function buttons |
| Mounting Options | 2 x 1/4", 1 x 3/8" tripod mounts |
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| HDMI 2.0 Video Outputs | 1 |
| Analog Audio Input | 2 x XLR (mic/line), phantom power, 1 x 3.5mm (Timecode) |
| Analog Audio Output | 1 x 5-pin XLR (talkback), 1 x 3.5mm TRRS (headphones/mic) |
| SDI Audio Output | 2 channels program, 2 talkback on 15 and 16 |
| Reference Inputs | Tri-Sync/Black Burst (with Studio Converter) |
| Remote Control | Over SDI, HDMI or Ethernet |
| Ethernet | 10Gb/s |
| Computer Interface | 2 x USB Type‑C 3.1 Gen 1 (5Gb/s), Software updates via USB-C Port A |
| Microphone | Integrated stereo microphone |
| Built in Speaker | 1 x mono speaker |
| Direct Streaming | RTMP over ethernet or USB-C mobile connection |
| Streaming Platforms | ATEM TV Studio HD8, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Vimeo, and more |
| SD Video Standards | None |
| HD Video Standards | 1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60), 1080i (50, 59.94, 60) |
| Ultra HD Video Standards | 2160p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60) |
| SDI Compliance | SMPTE 292M, 424M, 425M, 2081‑1, 2082‑1 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| Media | 2 x USB-C 3.1 Gen 1 (for recording Blackmagic RAW) |
| Media Format | ExFAT (Windows/Mac) or HFS+ (Mac) |
| Codecs | Blackmagic RAW (3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5) |
| Storage Type | 2 x USB‑C 3.1 Gen 1 expansion ports |
| Recording Formats | Blackmagic RAW (3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5) in 6K, 5.3K, Ultra HD |
| Storage Rates | Rates based on 30 fps |
| 6144 x 3456 (6K) | 3:1 - 323 MB/s, 5:1 - 194 MB/s, 8:1 - 121 MB/s, 12:1 - 81 MB/s, Q0 - 242-483 MB/s, Q1 - 162-387 MB/s, Q3 - 108-277 MB/s, Q5 - 65-162 MB/s |
| 6144 x 2560 (6K 2.4:1) | 3:1 - 240 MB/s, 5:1 - 144 MB/s, 8:1 - 90 MB/s, 12:1 - 60 MB/s, Q0 - 180-359 MB/s, Q1 - 120-287 MB/s, Q3 - 80-205 MB/s, Q5 - 49-120 MB/s |
| 5376 x 3024 (5.3K 16:9) | 3:1 - 248 MB/s, 5:1 - 149 MB/s, 8:1 - 94 MB/s, 12:1 - 63 MB/s, Q0 - 186-371 MB/s, Q1 - 125-297 MB/s, Q3 - 84-212 MB/s, Q5 - 50-125 MB/s |
| 3840 x 2160 (Ultra HD) | 3:1 - 127 MB/s, 5:1 - 77 MB/s, 8:1 - 48 MB/s, 12:1 - 32 MB/s, Q0 - 96-190 MB/s, Q1 - 64-153 MB/s, Q3 - 43-109 MB/s, Q5 - 26-64 MB/s |
| External Control | Blackmagic Zoom Demand, Blackmagic Focus Demand, ATEM switcher, ATEM Software Control, ATEM Camera Control Panel |
| Camera Control Protocol | Blackmagic Control Protocol over SDI, RTMP, HDMI |
| Camera Settings Control | Focus, iris, zoom with compatible lenses, color corrector, tally, record start/stop via USB expansion port |
| REST API | Camera Control via REST API over Ethernet or USB Ethernet with Postman or similar applications |
| NTP Support | Network Time Protocol for syncing time from any NTP server |
| Web Media Manager | Browse, download, and delete files from connected drives via browser over Ethernet |
| FTP | FTP support for downloading files from attached drives |
| SMB | File sharing support using SMB |
| Color Corrector | DaVinci YRGB |
| Live Tally Indicator | 1 x front facing for talent, 1 x rear facing for operator |
| Talkback | SDI Channels 15 and 16 |
| Software Included | Blackmagic Camera Setup for Mac and Windows |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11 |
| Power Supply | 1 x External 12V DC 60W power supply |
| Power Inputs | 1 x 12V DC locking 5.5 mm barrel connector, 1 x 12V DC 4 pin XLR, 1 x RJ45 Ethernet for Type 4 PoE |
| Power Usage | 32 ‑ 52 W using DC, 38 ‑ 59 W using Type 4 PoE |
| Optional Accessories | Blackmagic Focus Demand, Blackmagic Zoom Demand, Blackmagic Studio Converter, ATEM Mini, ATEM SDI/Constellation/Television Studio switchers, ATEM Streaming Bridge, Blackmagic MultiDock 10G, HyperDeck Studio HD Plus/4K Pro, SmartView 4K, Blackmagic Cloud Pod/Store/Store Mini 8TB, Ultimatte 12 HD/4K Mini |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic Studio Camera 6K Pro, Blackmagic Studio Camera Sun Shade, Tripod Mount compatible with 15mm lightweight rails, Tripod Mount Plate, Turret Dust Cap, External 12V DC power supply with locking connector & international adapters, Welcome wallet with QR code for software download, DaVinci Resolve download card, Blackmagic Design sticker |
