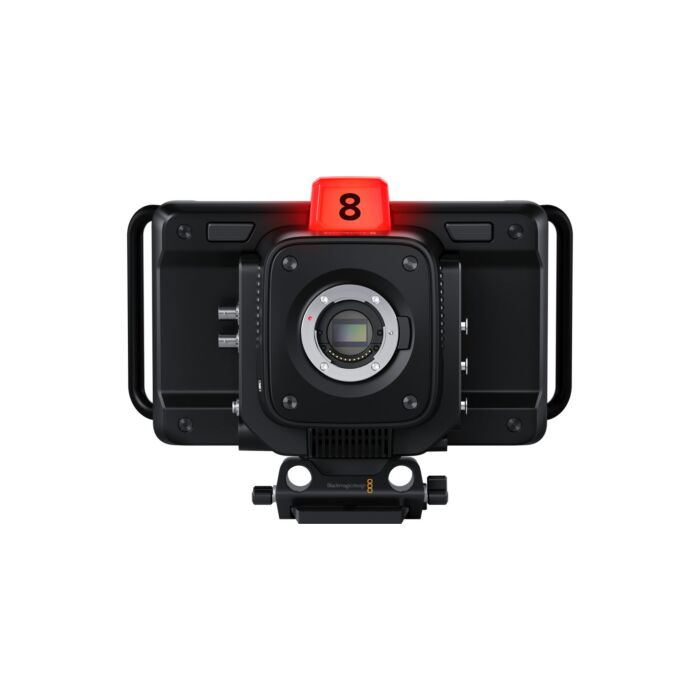

Blackmagic Design Studio 4K Pro G2 Digital Film Camera
*Please note this product is subject to tariff fee*
The Blackmagic Design Studio Camera 4K Pro G2 offers 4K UHD video capture, 12G-SDI & 10G Ethernet connectivity, a 7" 2000-nit touchscreen, and dual native ISO for stunning low-light performance. Features include direct streaming, dual XLR audio inputs, and robust control options. Ideal for professional live streaming and broadcast use.The Blackmagic Design Studio Camera 4K Pro G2 is engineered for professional broadcast environments, offering unparalleled flexibility and connectivity. Featuring a 17.78mm x 10mm Four Thirds sensor and an Active MFT lens mount, this camera supports powerful lenses for precise control over iris, focus, and zoom. It provides 12G-SDI and 10G Ethernet connections, ensuring seamless integration with SDI switchers and allowing longer cable runs without signal degradation.
The camera’s advanced 13-stop dynamic range and dual native ISO (0dB and 18dB) provide exceptional low-light performance, while delivering crisp Ultra HD resolution at up to 60 fps. The 12G-SDI input/output includes program return with camera control, tally, and talkback, making it ideal for complex live productions. Additionally, a HDMI 2.0 output offers remote camera control and integration with various devices.
A high-visibility 7-inch 1920x1200 LCD touchscreen display with 2000 nits brightness ensures excellent monitoring in diverse lighting conditions. Enhanced connectivity includes USB-C 3.1 Gen 1 expansion ports, analog XLR audio inputs, and direct streaming capabilities via RTMP over Ethernet or mobile internet. Perfect for high-end live events, streaming, and broadcast applications, the Blackmagic Studio Camera 4K Pro G2 is the perfect tool for reliable, high-quality video capture and control.
Features:
- 4K UHD Resolution: 3840 x 2160 at up to 60 fps
- 12G-SDI & 10G Ethernet: Professional video and data connectivity
- Active MFT Mount: Supports interchangeable lenses
- 13 Stops Dynamic Range: High detail in shadows and highlights
- Dual Native ISO: 0dB and 18dB for enhanced low-light performance
- 7” LCD Touchscreen: 1920 x 1200 resolution, 2000 nits brightness
- USB-C Expansion Ports: External media storage and control
- XLR Audio Inputs: 2x analog, mic/line switchable, phantom power
- Real-time Streaming: RTMP support for direct streaming
- Remote Control: Over SDI, HDMI, Ethernet
Applications:
- Live Broadcasting: High-quality video for production
- Streaming: RTMP support to platforms like YouTube and Facebook
- Cinematography: Crisp 4K UHD video for films and media
- Event Coverage: Ideal for sports, concerts, and live events
- Corporate Videos: Professional video production and streaming
- News Production: Versatile control and connectivity for reporters
- Virtual Events: Seamless integration with remote production tools
| Effective Sensor Size | 17.78mm x 10mm (Four Thirds) |
| Lens Mount | Active MFT Mount |
| Lens Control | Iris, focus, zoom on supported lenses |
| Dynamic Range | 13 Stops |
| Dual Native ISO | 0dB and 18dB gain |
| Sensitivity at 0dB Gain | f11 with 2160p59.94, f12 with 2160p50 at 2,000 lux with 89.9% reflectance |
| Signal to Noise Ratio | 63dB for 2160p |
| Shooting Resolutions | 3840 x 2160 (Ultra HD) up to 60 fps |
| Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
| Off-speed Frame Rates | Up to 60 fps in Ultra HD |
| Focus | Auto focus on compatible lenses |
| Screen Dimensions | 7 inch, 1920 x 1200 |
| Screen Type | LCD capacitive touchscreen |
| Screen Brightness | 2000 nits |
| Controls | Touchscreen camera settings, rotary dial, assignable function buttons, peaking dials |
| Mounting Options | 2 x 1/4 inch, 1 x 3/8 inch tripod mounts |
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| HDMI 2.0 Video Outputs | 1 |
| Analog Audio Input | 2 x XLR (mic/line levels), Phantom power support |
| 3.5mm Stereo Input | Can also be used for Timecode input |
| Analog Audio Output | 1 x 5-pin XLR for talkback headset |
| 3.5mm TRRS Mini Jack | For headphones with mic |
| Reference Inputs | Tri-Sync or Black Burst (via optional Studio Converter) |
| Program SDI Input | On camera or via Blackmagic Studio Converter |
| SDI Audio Output | 2 channels embedded in 1.5G/3G/6G/12G-SDI |
| Talkback Channels | Channels 15 and 16 |
| Remote Control | Over SDI, HDMI or Ethernet |
| Ethernet | 10Gb/s |
| Computer Interface | 2 x USB Type-C 3.1 Gen 1 (up to 5Gb/s) |
| Microphone | Integrated stereo microphone |
| Built in Speaker | 1 x mono speaker |
| Direct Streaming | RTMP streaming over ethernet or USB-C mobile connection |
| Streaming Platforms | Facebook, Twitch, YouTube, Twitter, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo, Restream.IO |
| SD Video Standards | None |
| HD Video Standards | 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, 424M, 425M (level A/B), 2081‑1, 2081‑10, 2082‑1, 2082‑10 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| HDMI Audio Sampling | 48 kHz, 24-bit |
| Media | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW |
| Media Format | ExFAT (Windows/Mac), HFS+ (Mac) file systems |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1, Constant Quality Q0, Q1, Q3, Q5 |
| Storage Type | 2 x USB-C 3.1 Gen 1 expansion ports for external media |
| Recording Formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840 x 2160 |
| Storage Rates | 3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s |
| External Control | Blackmagic Zoom Demand, Blackmagic Focus Demand, Blackmagic Control Protocol over SDI/HDMI, ATEM Software Control or ATEM Camera Control Panel |
| Camera Control | REST API over Ethernet or USB Ethernet for external control via HTTP (Postman) |
| NTP | Network time protocol support for syncing time on the camera via NTP server |
| Web Media Manager | Access, browse, download, and delete files from any connected drive via Ethernet |
| FTP | Download files from any connected drive using FTP |
| SMB | File sharing via SMB |
| Color Corrector | DaVinci YRGB |
| Live Tally Indicator | 1 x front facing for talent, 1 x rear facing for operator |
| Talkback | SDI Channels 15 and 16 |
| Software Included | Blackmagic Camera Setup for Mac and Windows |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11 |
| Power Supply | 1 x External 12V DC 60W power supply |
| Power Inputs | 1 x 12V DC locking 5.5 mm barrel connector, 1 x 12V DC 4 pin XLR, 1 x RJ45 Ethernet connector for PoE |
| Power Usage | 26 ‑ 40 W using DC input, 30 ‑ 46 W using PoE input |
| Optional Accessories | Blackmagic Focus Demand, Blackmagic Zoom Demand, Blackmagic Studio Converter, ATEM Mini switchers, ATEM Television Studio Pro switchers, Blackmagic 3G‑SDI Shield for Arduino |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic Studio Camera 4K Pro G2, Blackmagic Studio Camera Sun Shade, Tripod Mount compatible with 15mm lightweight rails, Turret Dust Cap, External 12V DC power supply with locking connector and international sockets adapters for most countries |
