main product photo

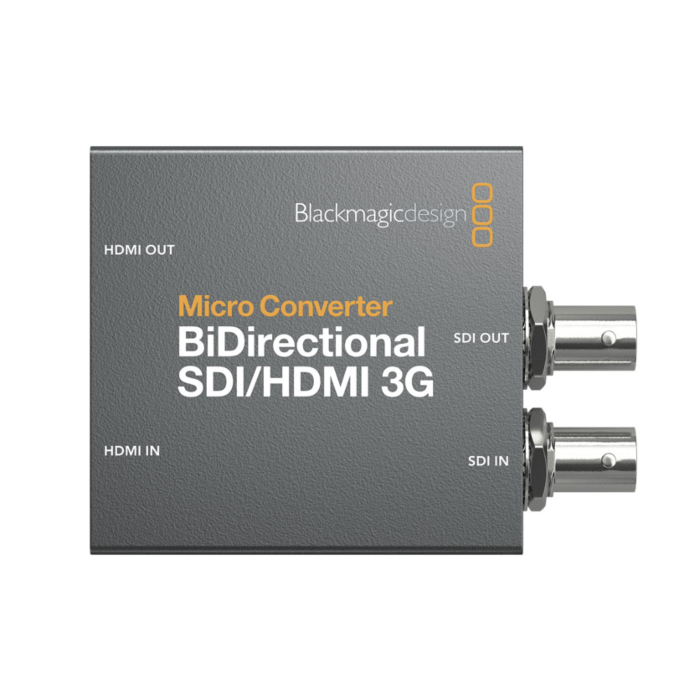

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G

SKU
Micro Converter BiDirectional SDI/HDMI 3G
Please call for pricing
❤
Add to Compare
Quick Overview

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G - Simultaneously convert SDI to HDMI and HDMI to SDI in any SD or HD format all at the same time.

Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!

Features:

  • Use your HDMI camera with an SDI monitor on set
  • Power Micro Converter from your laptop's USB
  • Miniaturized Design
  • Broadcast Quality
  • SDI Re-clocking
  • Full Size Connections
  • USB or DC Power
 SDI Video Inputs 18.96mm x 10mm (Four Thirds)
 SDI Video Outputs 1 x SDI loop out
 HDMI Outputs HDMI Type A out
 Multi Rate Support Auto detection of SD or HD
 Updates, Configurations and Power Micro USB
 SDI Video Standards 525i59.94 NTSC, 625i50 PAL
 HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI
 SDI Color Precision 4:2:2
 SDI Color Space YUV
 SDI Auto Switching Automatically detects SD, HD and 3G-SDI
 HDMI Video Standards 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
 HDMI Color Precision 4:2:2
 HDMI Color Space YUV
 Software Control Mac OS Xô and Windowsô software upgrade via micro USB
 Internal Software Upgrade Via Micro USB
 Power Requirements +5V universal power supply included with international socket adapters for all countries
 Power Consumption 1.60 Watts
 Operational Voltage Range 4.4V to 5.25V DC
 Operating Temperature 0⁰ to 40⁰ C (32⁰ to 104⁰ F)
 Storage Temperature -20⁰ to 60⁰ C (-4⁰ to 140⁰ F)
 Relative Humidity 0% to 90% non-condensing
