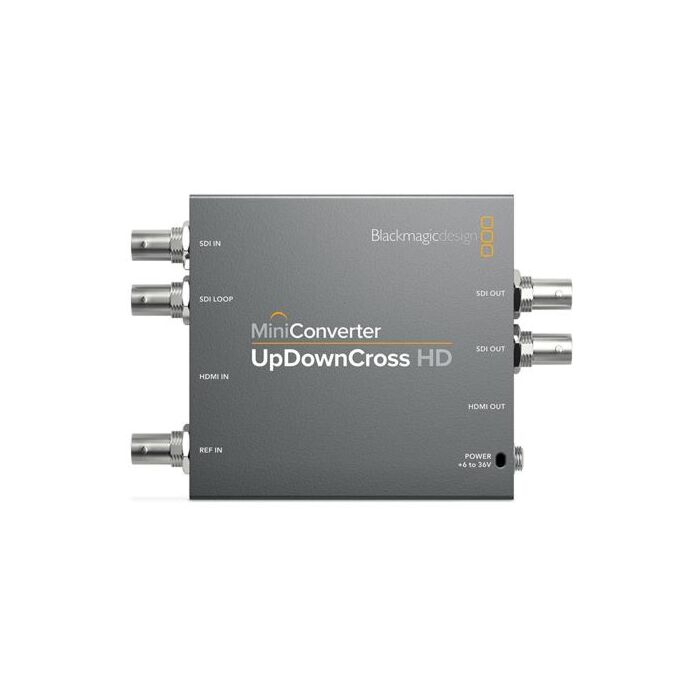

Blackmagic Design Mini Converter UpDownCross HD
SKU
Blackmagic Design Mini Converter UpDownCross HD
Quick Overview
Blackmagic Mini Converters are the world’s most advanced converters because they include the latest 6G-SDI technology, automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30!
Features:
- Simple, Compact and Rugged
- 6G-SDI Ultra HD Models
- Multiple Audio Connections
- Redundant SDI Inputs - runs two alternate sdi input cables
- True broadcast quality for professional use
- HDMI Instant Lock
- Affordable Optical Fiber
- Easy Control - Simple to set up and update
| SDI Video Inputs | 1 x SD, HD or 3G-SDI Video Input and 1 x External ReferenceInput |
| HDMI Video Input | 1 x HDMI type A connector |
| SDI Video Outputs | 1 x loop out and 2xoutputs |
| HDMI Video Output | HDMI type A out. Output supports EDID of themonitor |
| SDI Rates | 270Mb, 1.5G, 3G |
| Reference Input | Black burst and Tri-Sync for SD&HD |
| Multi Rate Support | Auto detection of HD or standard definition SDIinputs |
| Updates and Configuration | USB |
| Reclocking | Yes |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| HDMI Input Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD or 3G-SDI |
| Video Conversion | Convert any SD and HD input to "720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60" |
| Computing Scaling | Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Internal Software Upgrade | Via included updaterapplication |
| Settings Control | Mini Switches |
| Power Requirements | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power Consumption | 5 Watts |
| Operational Voltage Range | 6 - 36V DC |
| Operating Temperature | 0⁰ to 40⁰ C (32⁰ to 104⁰ F) |
| Storage Temperature | -20⁰ to 45⁰ C (-4⁰ to 113⁰ F) |
| Relative Humidity | 0% to 90% non-condensing |
