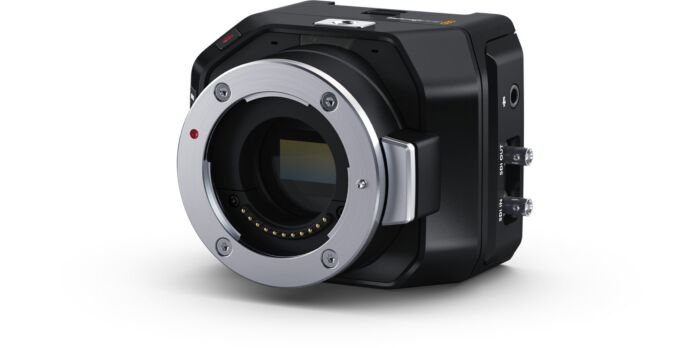

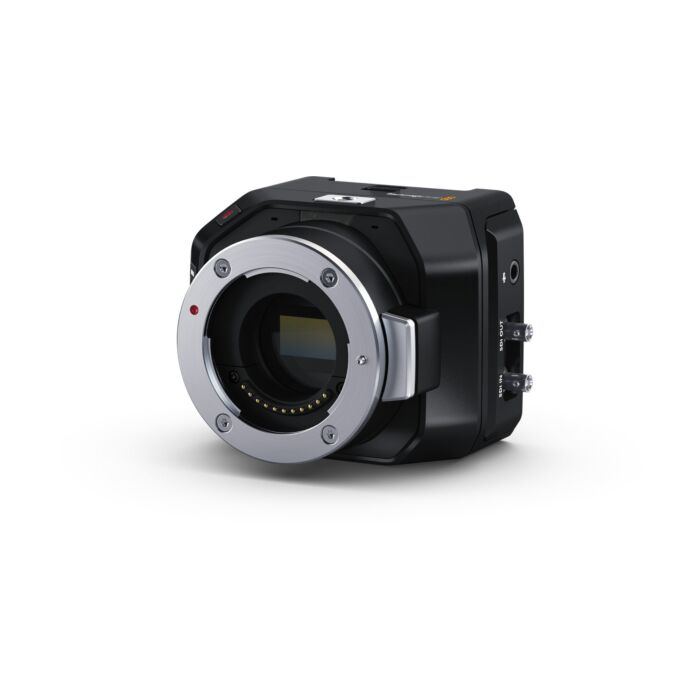

Blackmagic Design Micro Studio 4K G2 Digital Film Camera
*Please note this product is subject to tariff fee*
The Blackmagic Micro Studio Camera 4K G2 offers Ultra HD resolution at 60 fps, 13 stops dynamic range, and professional features including 12G-SDI, Blackmagic RAW recording via USB-C, and MFT lens control. Ideal for compact live productions with flexible mounting and remote control.The Blackmagic Design Micro Studio Camera 4K G2 is a compact, professional-grade camera designed for live broadcast and film production. Featuring a high-performance 17.78mm x 10mm Four Thirds sensor, this camera captures stunning Ultra HD 3840 x 2160 resolution at up to 60 fps, delivering exceptional 13 stops of dynamic range and superb low-light sensitivity. With dual native ISO (0dB and 18dB), the camera maintains pristine image quality in challenging lighting conditions.
The active MFT lens mount supports lens control for iris, focus, and zoom on compatible lenses, while metadata support automatically records lens data, camera settings, and motion sensor data, enhancing production workflow. Integrated with Blackmagic RAW recording via USB-C, the camera provides multiple codecs including Blackmagic RAW 3:1, 5:1, 8:1, 12:1, and Constant Quality options. The camera’s built-in 12G-SDI Micro BNC connectors deliver 10-bit uncompressed video up to 2160p60, with 2-channel embedded audio on SDI outputs. The HDMI 2.0 output provides full camera control when connected to an ATEM Mini or compatible switcher.
Multiple mounting points, including 1/4 inch threads, offer versatile installation options for mounting the camera in tight or unique spaces, allowing you to position it where other cameras cannot. The camera’s remote control features include SDI, HDMI, and USB Ethernet control, with full integration with ATEM switchers for precise adjustments.
Features:
- Sensor: 17.78mm x 10mm Four Thirds
- Dynamic Range: 13 stops
- ISO: Dual Native (0dB, 18dB)
- Resolution: 3840 x 2160 (Ultra HD) up to 60 fps
- Lens Mount: Active MFT
- Frame Rates: 23.98 to 60 fps
- Recording: Blackmagic RAW via USB-C
- Outputs: 12G-SDI, HDMI 2.0
- Audio: 2-channel embedded audio (SDI/HDMI)
- Power: 12V DC, 18-25W
- Connectivity: SDI, HDMI, USB 3.1, Ethernet
- Mounting Points: 1 x top, 3 x bottom (1/4 inch)
- Remote Control: SDI, HDMI, USB Ethernet
Applications:
- Live Broadcast
- Film Production
- Event Coverage
- Studio Recording
- Sports Coverage
- Remote Camera Operation
- Compact Installation
| Effective Sensor Size | 17.78mm x 10mm (Four Thirds) |
| Lens Mount | Active MFT Mount |
| Lens Control | Iris, focus, zoom on supported lenses |
| Dynamic Range | 13 Stops |
| Dual Native ISO | 0dB and 18dB gain |
| Sensitivity at 0dB Gain | f11 with 2160p59.94, f12 with 2160p50 at 2,000 lux with 89.9% reflectance |
| Signal to Noise Ratio | 63dB for 2160p |
| Shooting Resolutions | 3840 x 2160 (Ultra HD) up to 60 fps |
| Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
| Off-speed Frame Rates | Up to 60 fps in Ultra HD |
| Focus | Auto focus with compatible lenses |
| Metadata Support | Lens data, camera settings, motion sensor data, slate data, 3D LUT in Blackmagic RAW |
| Mounting Options | 1 x 1/4 inch (top), 3 x 1/4 inch (bottom) |
| SDI Video Inputs | 1 x 12G‑SDI Micro BNC |
| SDI Video Outputs | 1 x 12G‑SDI Micro BNC |
| SDI Rates | 3G, 6G, 12G |
| HDMI 2.0 Video Outputs | 1 |
| HDMI Video Outputs | 1 x HDMI Type A output, 1080p60 max |
| Analog Audio Input | 1 x 3.5mm Stereo Input (also for Timecode input) |
| Reference Inputs | Program SDI Input on camera |
| SDI Audio Output | 2 channels of program audio embedded in 3G/6G/12G-SDI |
| HDMI Audio Outputs | 2 channels, 48 kHz and 24-bit |
| Remote Control | Remote control over SDI, HDMI, or USB Ethernet with adapter |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 (5Gb/s) for recording, focus/zoom demand, software updates |
| Microphone | Integrated stereo microphone |
| Built in Speaker | None |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10 |
| SDI Audio Sampling | 48 kHz, 24-bit television standard sample rate |
| Media | 1 x USB-C 3.1 Gen 1 for external media and recording Blackmagic RAW |
| Media Format | ExFAT (Windows/Mac), HFS+ (Mac) |
| Codecs | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 (Constant Bitrate and Constant Quality) |
| Storage Type | 1 x USB-C 3.1 Gen 1 expansion ports for external media |
| Recording Formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840 x 2160 |
| Storage Rates (30 fps) | Blackmagic RAW 3:1 - 127 MB/s, 5:1 - 77 MB/s, 8:1 - 48 MB/s, 12:1 - 32 MB/s, Q0 - 96 to 190 MB/s, Q1 - 64 to 153 MB/s, Q3 - 43 to 109 MB/s, Q5 - 26 to 64 MB/s |
| Control | 5 control buttons: Set, Up, Down, Menu, Power |
| External Control | Blackmagic Zoom Demand and Focus Demand for tripod control, external control via ATEM switcher, SDI/HDMI, camera settings, iris, zoom, tally, and record to external media via USB |
| Camera Control REST API | External control via HTTP using REST client applications such as Postman (over USB Ethernet) |
| NTP | Network time protocol support for syncing camera time via any NTP server when connected to the network |
| Web Media Manager | Access, browse, download, and delete files from any connected drive via browser over Ethernet |
| FTP | Download files from any attached drive via FTP |
| SMB | File sharing using SMB protocol |
| Color Corrector | DaVinci YRGB color correction |
| Live Tally Indicator | 1 x front facing for talent |
| Software Included | Blackmagic Camera Setup for Mac and Windows |
| Operating Systems | Mac: 13.0 Ventura, 14.0 Sonoma or later, Windows: 10 and 11 |
| Power Supply | 1 x External 12V DC 36W power supply |
| Power Inputs | 1 x 12V DC locking 5.5 mm barrel connector |
| Power Usage | 18 ‑ 25 W |
| Optional Accessories | Blackmagic Focus Demand, Blackmagic Zoom Demand, ATEM Mini switchers, ATEM SDI switchers, ATEM Television Studio switchers, ATEM Constellation switchers, Blackmagic Video Assist, LP-E6 Battery, Micro BNC Cables |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic Micro Studio Camera 4K G2, Turret dust cap, External 12V DC power supply with locking connector and international socket adapters, Welcome wallet with QR code for software download |
