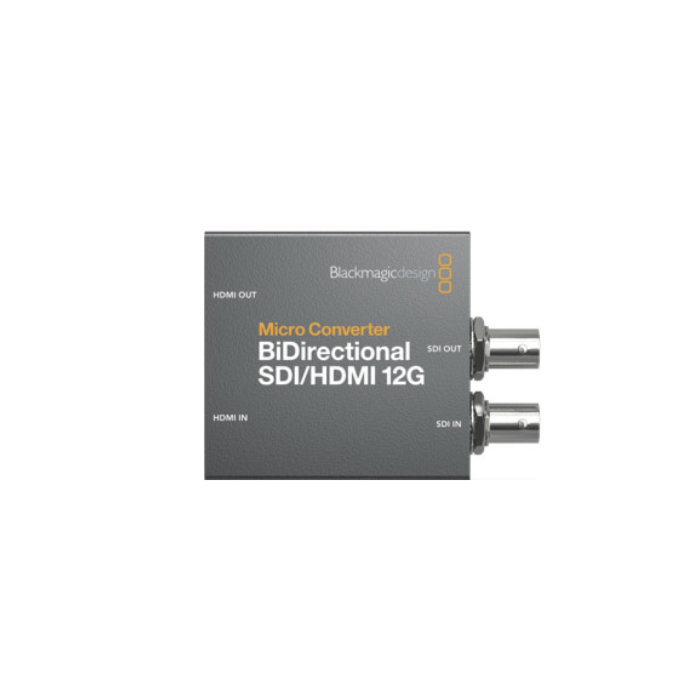

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
SKU
Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
Features:
- Supports SD, HD, Ultra HD & 4K (up to 2160p60)
- 3G-SDI & 12G-SDI models with dual outputs
- Bidirectional SDI/HDMI conversion (select models)
- 17-point & 33-point 3D LUT for color calibration
- Low SDI jitter & re-clocking for long cable runs
- 8-bit & 10-bit video, RGB & YUV color spaces
- Embedded audio & HDMI/SDI timecode support
- HDR metadata (PQ, HLG) & DCI film rates support
- USB-C powered + optional AC with global adapters
- Firmware updates via Blackmagic Converter Utility
- Complies with SMPTE broadcast standards
| Supported Resolutions | SD, HD, Ultra HD, and 4K (up to 2160p60 on 12G-SDI) |
| Video Connections | 3G-SDI or 12G-SDI (model-dependent), HDMI (full-size) |
| Bidirectional Conversion | Available on select models (SDI to HDMI & HDMI to SDI) |
| LUT Support | 17-point & 33-point 3D LUTs (for color calibration) |
| SDI Re-clocking | Yes (for long-distance SDI signal integrity) |
| Color Processing | 8-bit & 10-bit, RGB & YUV color spaces |
| Embedded Audio | Yes, full SDI/HDMI audio support |
| Timecode Support | HDMI/SDI timecode conversion |
| HDR Support | PQ, HLG (per ST2108-1, ST2084, ST425 standards) |
| DCI Film Rates | 1080p24, 4Kp24, 4Kp48, etc. (select models) |
| Power Options | USB-C powered + optional AC adapter (100-240V) |
| Software Configuration | USB firmware updates via Blackmagic Converter Utility |
| Broadcast Standards | SMPTE 259M, 292M, 296M, 424M, 2081-10, 2082-10 |
