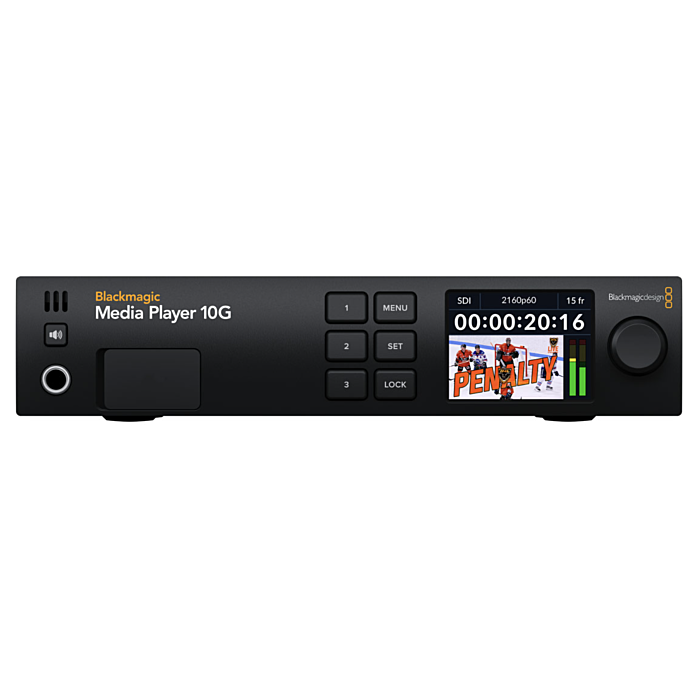

Blackmagic Design Media Player 10G Recorder

The Blackmagic Media Player 10G is a high-performance capture and playout solution engineered for Thunderbolt-equipped computers, offering seamless integration with live production switchers and broadcast environments. Featuring dual 12G-SDI outputs supporting independent fill and key with RGBA and YUVA frame buffers, it enables precise overlay of broadcast graphics with 10-bit color depth. The 12G-SDI input ensures high-fidelity real-time video capture with ultra-low latency, supporting formats from SD to Ultra HD 2160p60. The Thunderbolt 3 interface provides bidirectional data transfer, allowing simultaneous capture and playout, while also delivering power to connected laptops. The dedicated HDMI and 12G-SDI monitoring outputs ensure accurate real-time playback, making it an essential tool for professional broadcast and post-production applications.

Equipped with a high-speed 10G Ethernet interface, the Blackmagic Media Player 10G allows direct access to shared network storage without the need for additional adapters. This ultra-fast connection supports multiple video streams simultaneously, critical for live replay and multi-source editing in DaVinci Resolve 19. It also features RS-422 deck control for broadcast automation, ensuring compatibility with professional workflows. Supporting a wide range of resolutions and frame rates, including 2160p60, 1080p60, 2K DCI, and 4K DCI, the device handles ProRes, DNxHD, and 10-bit uncompressed formats for maximum image fidelity. Whether used in a control room or on location, its compact design allows for desktop placement or rack-mounting using the Blackmagic Universal Rack Shelf, delivering the ultimate flexibility in a professional video workflow.

Features:

• Dual 12G-SDI outputs for fill and key playback
• 12G-SDI capture for live production integration
• 10G Ethernet for high-speed network storage access
• Single Thunderbolt connection for video, Ethernet, and laptop power
• Supports SD, HD, Ultra HD, and 4K DCI video standards
• Simultaneous bidirectional video capture and playback
• Full DeckLink API support for compatibility with most video software
• Supports 10-bit broadcast-quality video formats (Apple ProRes, DNxHD, uncompressed)
• Real-time video processing and graphics overlay with low latency
• Independent video keying with RGBA and YUVA support
• Advanced broadcast graphics with Fusion, After Effects, and Photoshop integration
• Monitoring outputs via HDMI and 12G-SDI for live input preview
• Extended desktop for DaVinci Resolve UI and USB expansion for peripheral devices
• RS-422 control for broadcast automation and disk recorder integration
• Mountable on a desktop or rack with LCD status display and audio meters
• Fast 10G Ethernet for shared media access and ISO video file retrieval

Applications:

• Ideal for live news editing and replay
• Broadcast graphics creation and live keying
• High-performance editing in DaVinci Resolve 19
• Graphics-heavy live events and productions
• Real-time video processing for broadcast graphics, stingers, and effects
• Multi-source video preview and monitoring in live production environments
• Remote control of broadcast automation systems via RS-422
• Seamless integration into existing workflows with major video editing software (Final Cut Pro, Adobe Premiere, Avid Media Composer)
• Fast, efficient access to shared media in collaborative production settings
