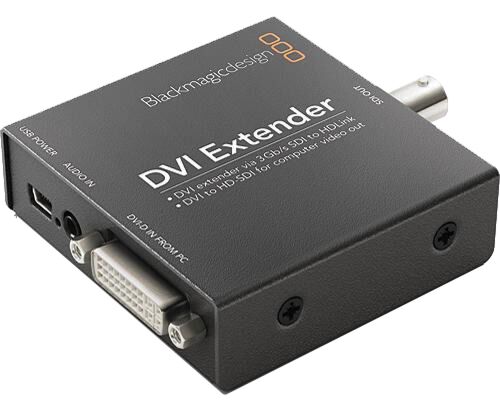

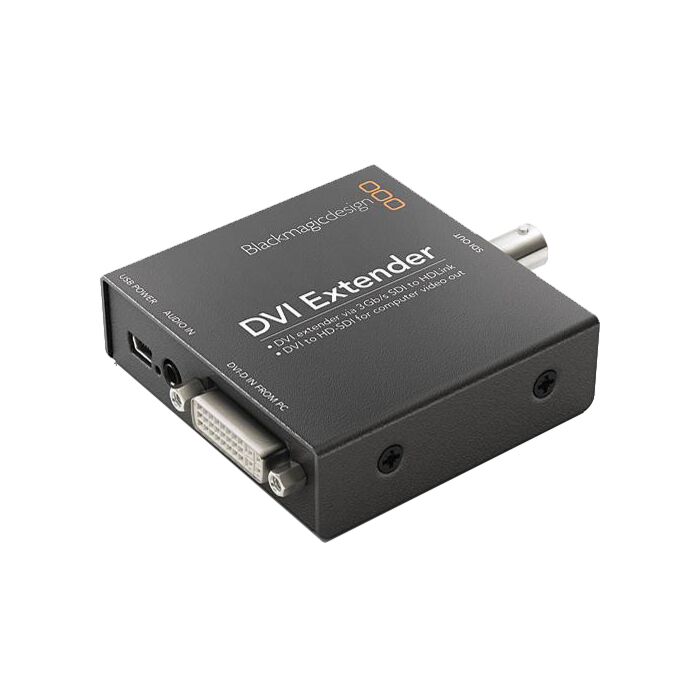

Blackmagic Design HDLEXT-DVI DVI Extender
Blackmagic Design HDLEXT-DVI DVI Extender
SKU
Blackmagic Design HDLEXT-DVI DVI Extender
Blackmagic Design DVI Extender (HDLEXT-DVI)
Features:
- SD/HD SDI
- 3GB/s SDI Technology
- USB Powered
| Video Input | DVI-D x1 |
| Video Output | 1 x 3 Gb/s SD/HD-SDI |
| Audio Input | 1 x 3.5mm stereo mini jack |
| Video Mode Resolutions | When set to Video mode based resolutions, DVI Extender will output conventional SDI video to match the selected video standard. Select 720 x 486 for 525i/59.94 (NTSC), 720 x 576 for 625i/50 (PAL), 1280 x 720 for 720 HD and 1920 x 1080 for 1080 HD video formats. |
| USB | USB 2.0 high speed (480Mb/s) interface |
| Extender Mode Compatibility | Extender mode is compatible with the following HDLink models: HDLink Pro DVI, HDLink Optical Fiber, HDLink Pro DisplayPort |
| Physical Installation | Blackmagic Converter Utility software installed via computerís USB 2.0 port |
| Operating Temperature | 0⁰ to 40⁰ C (32⁰ to 104⁰ F) |
| Storage Temperature | -20⁰ to 45⁰ C (-4⁰ to 113⁰ F) |
| Relative Humidity | 0% to 90% non-condensing |
