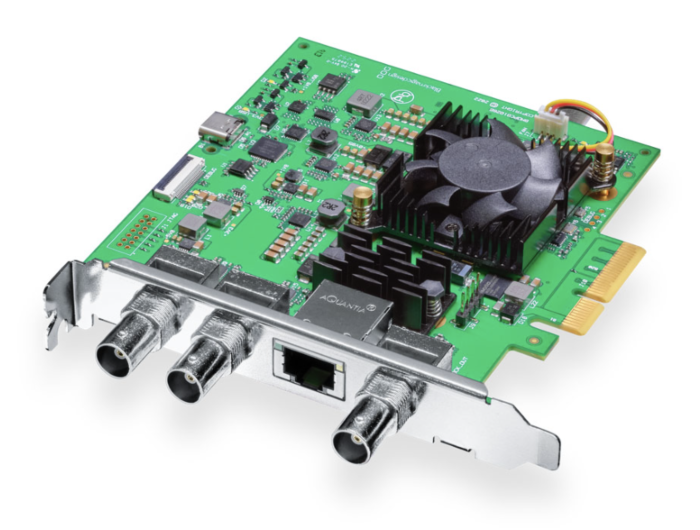

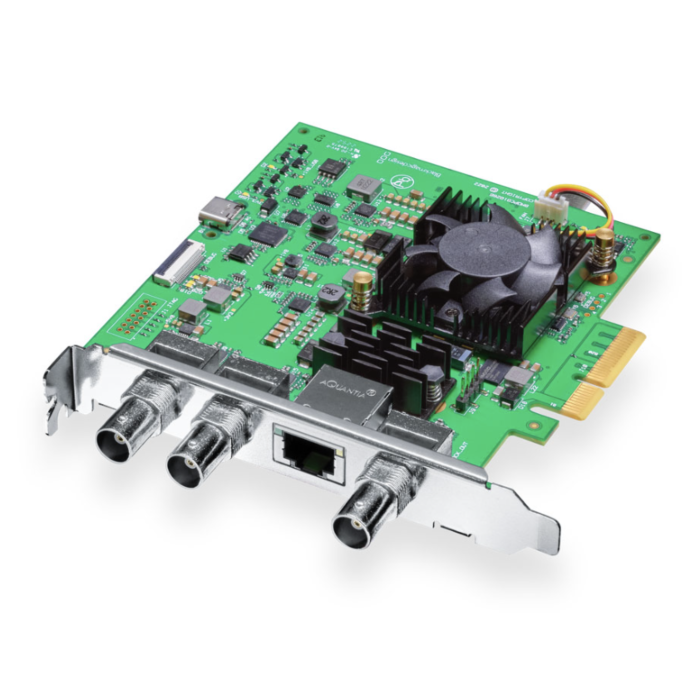

Blackmagic Design DeckLink IP/SDI HD Recorder
The Blackmagic Design DeckLink IP/SDI HD is a dual-channel capture and playback card designed for seamless integration into SMPTE 2110 IP and 3G-SDI broadcast infrastructures. It supports 10-bit uncompressed video, delivering broadcast-quality capture/playback with YUV 4:2:2 color sampling, ensuring pixel-perfect output. With support for 720p, 1080i, and 1080p formats, the card can handle up to 60 fps for smooth, high-quality video playback and capture. Featuring a 10G Ethernet interface, it is built for low-latency, high-bandwidth SMPTE 2110-20 uncompressed video transport, ideal for real-time broadcast environments. The card’s 4-lane PCIe interface allows for fast data throughput, while PTP (Precision Time Protocol) ensures tight synchronization of video, audio, and ancillary data across all IP devices.
The DeckLink IP/SDI HD provides flexible connectivity, including both RJ45 Ethernet for 2110 IP workflows and 3G-SDI I/O, making it perfect for hybrid broadcast systems. With full compliance to the SMPTE 2110 standard, it supports SMPTE 2110-21 (traffic shaping/timing), SMPTE 2110-30 (audio), and SMPTE 2110-40 (ancillary data), enabling seamless integration in complex live broadcast, post-production, and streaming environments. Additionally, the card features a built-in video firewall for security, isolating video traffic from unauthorized data sources. The NMOS (Networked Media Open Specifications) support ensures automatic device discovery and connection management, allowing for easy routing of sources across the network. This makes the DeckLink IP/SDI HD an ideal solution for broadcast automation, high-performance video processing, and IP-based broadcast studios.
Features:
- 2 x bidirectional 12-bit SD/HD SDI ports
- 16 embedded audio channels in SD and HD
- 1 x 10G BASE-T Ethernet port for 2 input/output channels up to 1080p60
- Tri-Sync or Black Burst sync output
- PCI Express Gen 2 interface, compatible with 4, 8, and 16-lane slots
- Supports major codecs: AVC-Intra, ProRes, HEVC, XDCAM, DNxHD, etc.
- Firmware upgradeable via software
- HDR support with HLG and PQ transfer characteristics
- Real-time colorspace conversion
- SMPTE 2110 compliant for uncompressed video and ancillary data
- PTP v2, IGMP v2/v3, and NMOS connection management
- 10 Watts power consumption
- Operating temp: 5°C to 40°C (32°F to 104°F)
- 3-year limited warranty
Applications:
- Live broadcast and streaming
- Video editing and post-production
- Real-time video production and switching
- Visual effects and motion graphics creation
- Live event broadcasting and control
- Video conferencing and remote production
- Media ingest and management
- On-air graphics and broadcast automation
- Video production for virtual sets and augmented reality
- Multi-camera production and live streaming events
- Video playback and graphics for corporate events
- Live sports production and commentary integration
| Connections | 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output, 1 x 10G BASE-T Ethernet, Tri-Sync or Black Burst sync output. |
| SDI Ports | 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. 16 channels audio embedded in SD and HD. |
| 10G Ethernet Port | 1 x 10G BASE-T; supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. |
| Sync Output | Tri-Sync or Black Burst. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, DVCPRO, Apple ProRes (4444, 422 HQ, 422), XDCAM, DNxHR, Uncompressed 8-bit and 10-bit, HEVC, and more. |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver (Mac, Windows, Linux). |
| Internal Software Upgrade | Firmware built into software driver, loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4, 8 lane PCI Express slots on Mac OS, Windows, Linux. Requires a Mac Pro for Mac OS. |
| Supported Software Applications | DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Photoshop, and more. |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL. |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60. |
| SDI Compliance | SMPTE 259M, 292M, 296M, 424M, 425M, level A/B, ITU‑R BT.656, ITU‑R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | 48 kHz, 24-bit television standard. |
| Color Precision | 8, 10, 12-bit RGB 4:4:4, YUV 4:2:2 in all modes up to 1080p30. |
| Color Space | REC 601, REC 709, REC 2020. |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| IP Video Compliance | SMPTE 2110-20 (Uncompressed Video), IGMP v2/v3, PTP v2, NMOS IS-04, IS-05. |
| Real-Time Effects | DaVinci Resolve, Final Cut Pro internal effects, Adobe Premiere Pro CC Mercury Playback Engine, Avid Media Composer internal effects. |
| Physical Installation | Full height PCI Express card. |
| Operating Systems | Mac 14.0+ (Sonoma), Windows 10/11 (64-bit), Linux. |
| Power Requirements | 10 Watts power consumption. |
| Environmental Specifications | Operating Temp: 5° to 40°C (32° to 104°F), Storage Temp: -20° to 45°C (-4° to 113°F), Humidity: 0-90% non-condensing. |
| What's Included | DeckLink IP/SDI HD card, welcome wallet with QR code for software download. |
| Warranty | 3 Year Limited Manufacturer’s Warranty. |
