Blackmagic Design DeckLink IP HD Recorder

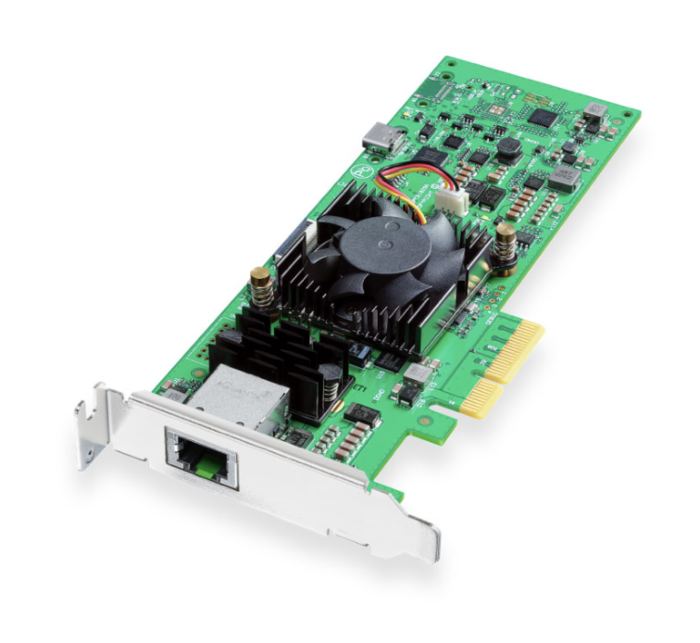

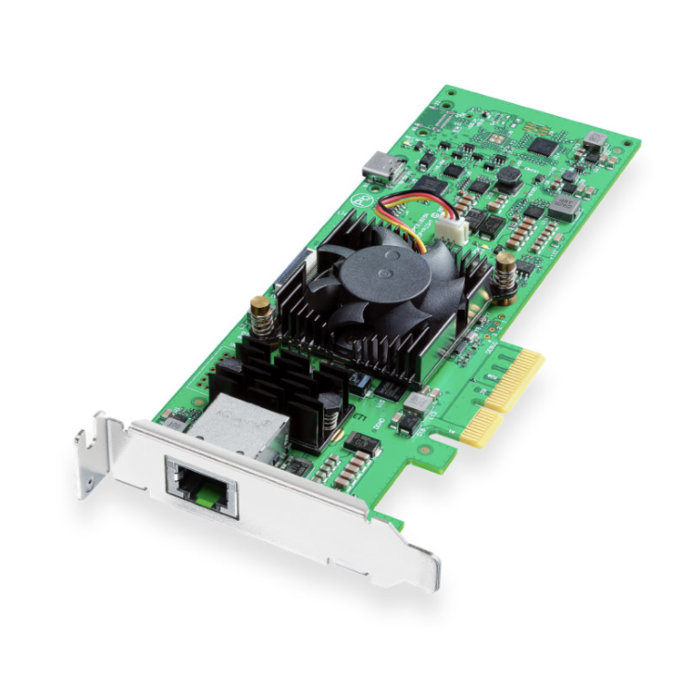

The Blackmagic Design DeckLink IP HD is a powerful PCIe video capture and playback card tailored for 2110 IP-based broadcast systems. It supports dual-channel capture and playback via a single RJ45 Ethernet connection, with resolutions up to 1080p60 in 720p, 1080i, and 1080p standards. The card conforms to the SMPTE ST2110 standard for uncompressed video (SMPTE-2110-20), along with SMPTE-2110-21 for traffic shaping, SMPTE-2110-30 for audio, and SMPTE-2110-40 for ancillary data. The high-speed 10G Ethernet connectivity allows for efficient multicast video distribution and ensures precise synchronization with a common PTP clock, making it ideal for integration into large-scale broadcast infrastructures.

Built for high performance, the DeckLink IP HD leverages a 4-lane PCIe connection to deliver ultra-low latency and superior timing accuracy for real-time applications, such as broadcast graphics, virtual sets, and GPU-driven AI image processing. The card supports 10-bit uncompressed video formats, including ProRes and DNxHD, offering broadcast-quality capture and playback with exceptional color precision for seamless video compositing and visual effects. Its robust security features include an integrated video firewall that isolates video data from external threats, ensuring secure transmission over IP networks. Compatible with all major video software such as DaVinci Resolve, Final Cut Pro, and Adobe Premiere Pro, the DeckLink IP HD is a versatile solution for modern broadcast production environments.

Features:

• Dual-Channel Capture & Playback: Supports two channels of 2110 IP video capture and playback simultaneously.
• 10G Ethernet Support: High-bandwidth Ethernet for efficient multicast video distribution.
• SMPTE 2110 Compliance: Conforms to SMPTE-2110-20, -21, -30, and -40 standards for uncompressed video, traffic shaping, audio, and ancillary data.
• 10-Bit Uncompressed Video: Supports high-quality 10-bit uncompressed video formats for superior broadcast-quality video.
• Low Latency with PCIe 4-Lane Interface: Provides low-latency capture and playback with highly accurate timing synchronization.
• Video Firewall for Security: Isolates video data from external threats using frame buffer isolation.
• Multi-Software Compatibility: Works seamlessly with DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and other broadcast software.
• Multiformat Video Support: Handles a wide range of SD and HD video formats up to 1080p60, with instant switching between standards.
• Broadcast-Grade Graphics Processing: Ideal for integrating with broadcast graphics tools like Fusion and Adobe After Effects.
• NMOS Protocol Support: Facilitates device discovery and connection management for virtual routing over IP networks.
• Versatile Integration: Perfect for use in broadcast automation, live streaming, and custom video solutions.

Applications:

• Broadcast Graphics Creation: Seamless integration with visual effects software for broadcast graphics and titles.
• Live Video Streaming: Supports live video streaming applications, including Open Broadcaster, Wirecast, and XSplit.
• Virtual Sets & GPU Processing: Ideal for use in virtual sets or GPU-based video processing for broadcast environments.
• Post-Production and Editing: Used in professional editing and color correction with DaVinci Resolve and other NLE software.
• Broadcast Automation: Ideal for building custom broadcast automation servers and solutions for local or global broadcasting.
• Broadcast Infrastructure Integration: Perfect for integrating 2110 IP video into existing SDI broadcast systems or complete IP-based setups.
• AI and Graphics Workstations: Supports GPU-driven AI image processing and high-performance broadcast graphics generation.
