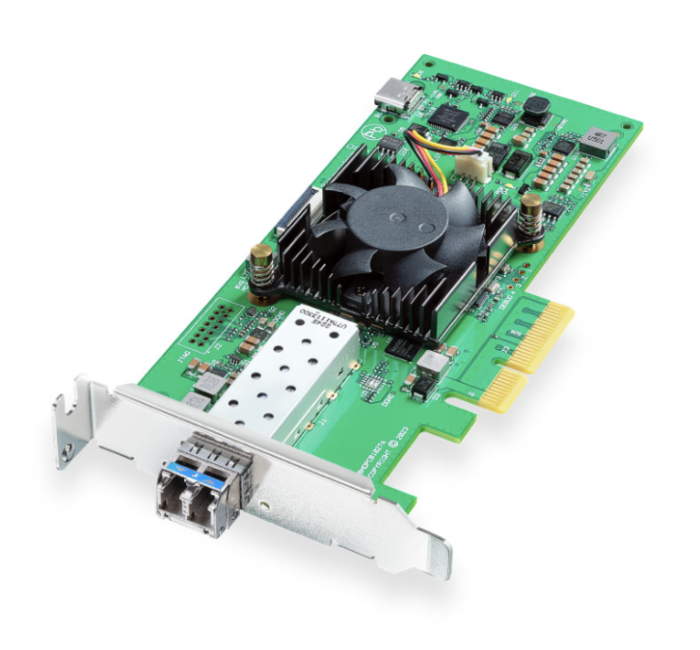

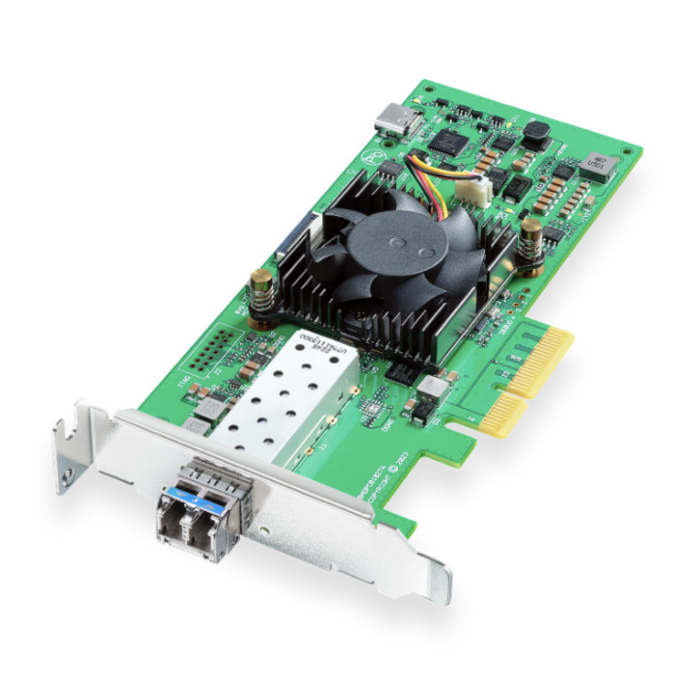

Blackmagic Design DeckLink IP HD Optical Recorder
The Blackmagic Design DeckLink IP HD Optical is a high-performance dual-channel 2110 IP video interface designed for seamless integration into modern broadcast systems. It features two simultaneous channels of capture and playback, supporting all SD and HD video formats up to 1080p60. The card utilizes an SFP-based optical fiber Ethernet connection for robust, high-speed data transfer, enabling 10G Ethernet for multi-channel IP video transport. Compliant with SMPTE ST 2110 standards, it supports uncompressed 10-bit video (ST 2110-20), along with audio (ST 2110-30) and ancillary data (ST 2110-40). This ensures perfect synchronization, allowing for seamless video/audio integration in live production environments.
Equipped with a high-speed 4-lane PCIe connection, the DeckLink IP HD Optical offers ultra-low latency and accurate time synchronization across video channels. The built-in video firewall guarantees network security by isolating video and audio data from unauthorized access, preventing rogue software or hackers from interfering with the IP network. The card supports NMOS protocol (IS-04 & IS-05) for automatic discovery and routing, essential for large-scale IP infrastructure setups. Its low-profile PCIe form factor ensures compatibility with rack-mount servers, making it ideal for broadcast automation, live streaming, AI processing, and virtual graphics in 2110 IP workflows.
Features:
- Dual-channel capture and playback for 2110 IP broadcast systems
- SFP-based optical fiber Ethernet connection for reliable, high-speed data transfer
- Supports SMPTE ST 2110 standards: Video (ST 2110-20), Audio (ST 2110-30), Ancillary Data (ST 2110-40)
- 10G Ethernet interface for high-bandwidth, multi-channel video transport
- Uncompressed 10-bit video for broadcast-quality capture and playback
- High-speed 4-lane PCIe interface for ultra-low latency and high synchronization
- Built-in video firewall isolates video data from network threats and unauthorized access
- NMOS protocol support (IS-04, IS-05) for device discovery and connection management
- Supports all SD and HD formats, including 1080p60, and automatic format switching
- Low-profile PCIe form factor for easy installation in rack-mount servers
- Compatible with popular software like DaVinci Resolve, Final Cut Pro, Premiere Pro, and more
Applications:
- Live production and broadcast environments with real-time IP video capture and playback
- Broadcast automation for seamless integration with control systems and video routers
- Video over IP infrastructure for modern broadcast studios and remote production setups
- Post-production workflows with simultaneous capture, color correction, and video output
- AI-based video processing and GPU-based workflows for real-time broadcasting
- Virtual graphics and broadcast graphics solutions for TV networks and live events
- Global live streaming with IP video capture and conversion to streaming formats
- Broadcast graphics generation for integration with Fusion or After Effects
- Broadcast archive solutions by capturing legacy broadcast decks for digital preservation
- Develop custom broadcast solutions using the DeckLink SDK for tailored workflows
| Connections | 10G Optical Fiber SFP+ Port 1 x 10GBASE-LR |
| Input/Output Channels | Supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4 |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows, and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
| Software Applications | DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop, The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, and many more. |
| Video Standards | SD: 525i59.94 NTSC, 625i50 PAL HD: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Color Space | REC 601, REC 709, REC 2020 |
| IP Video Compliance | SMPTE 2110-20 (Uncompressed Video) IGMP v2/v3 SMPTE 2110-21 (Traffic Shaping) SMPTE 2110-30 (PCM) SMPTE 2110-40 (Ancillary Data) |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1, ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 |
| Processing | Hardware-based real-time colorspace conversion Real-time effects: DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer |
| Physical Installation | PCI Express low profile. |
| Operating Systems | Mac: macOS 14.0 Sonoma, macOS 15.0 Sequoia or later Windows: Windows 10, 64-bit; Windows 11 Linux |
| Power Requirements | Power Consumption: 10 Watts |
| Environmental Specifications | Operating Temperature: 5° to 40° C (32° to 104° F) Storage Temperature: -20° to 45° C (-4° to 113° F) Relative Humidity: 0% to 90% non-condensing |
| What's Included | DeckLink IP HD Optical 10GBASE-LR Optical Fiber SFP+ Module and Cage Low profile slot bracket Welcome wallet with QR code for software download |
| Warranty | 3 Year Limited Manufacturer’s Warranty |
