Blackmagic Design CONVMUDC Mini Converter UpDownCross
Blackmagic Design CONVMUDC Mini Converter UpDownCross
Product is Discontinued For Replacement See: BMD-CONVMUDCSTD/HD
SKU

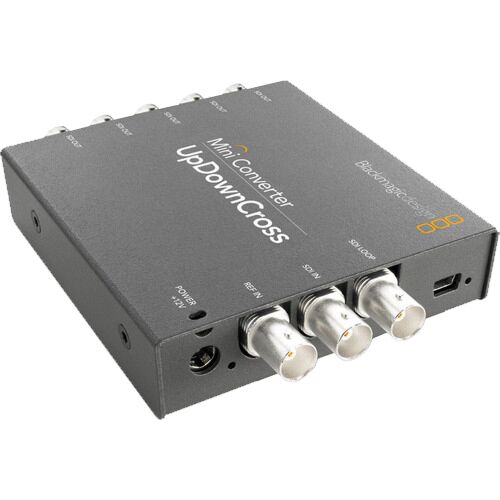

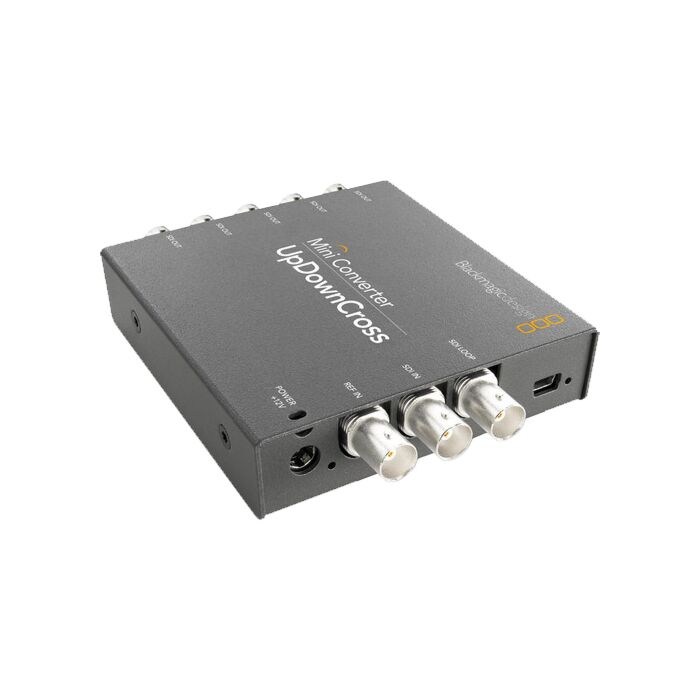

Blackmagic Design CONVMUDC Mini Converter UpDownCross
Blackmagic Design Mini Converter UpDownCross (CONVMUDC)
Features:
- Convert Between SD to HD Video Formats
- Up / Down / Cross Conversions
- Converts 720p to 1080i or Vice-Versa
- Auto SD/HD Switching
- Advanced 3 GB/S SDI Technology
- Uses 10 Bit SDI Video Quality
- Low SDI Jitter
- International Power Supply
| Connections | SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI SDI Video Outputs: 6 x outputs automatically match the SD, HD and 3 Gb/s SDI video input unless up, down, cross and/or standards conversion is enabled Optical Fiber Video Input: None Optical Fiber Video Output: None Multi Rate Support: Auto detection of HD or standard definition SDI inputs Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s) Re-clocking: Yes Optical Fiber Audio Input: None Optical Fiber Audio Output: None Analog Audio: None AES/EBU Digital Audio: None HDMI: None Analog Video: None Reference Input: Blackburst and TriSync for SD & HD. |
| Standards | SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60 SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI. SDI Video Sampling: 4:2:2 SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI Color Precision: 4:2:2 SDI Color Space: YUV SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit. SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI. Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. Analog Color Precision: 4:2:2 Analog Color Space: YUV HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60. HDMI Color Precision: 4:2:2 and 4:4:4 HDMI Color Space: YUV and RGB Copy Protection: For legal reasons HDMI input is unable to receive copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Control | Software Control: Mac OS X and Windows software upgrade via USB. Settings Control: Mini Switches or USB software. |
| Firmware | Firmware Upgrade: Via included firmware updater application |
| Format Conversion | Up, down, cross conversion and/or NTSC/PAL standards conversion. |
| Power Supply | 12VDC universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 110VAC: 88mA 220VAC: 47mA |
