Blackmagic Design CONVMH-DUTYBSH Mini Converter H/Duty – SDI to HDMI
Blackmagic Design CONVMH-DUTYBSH Mini Converter H/Duty – SDI to HDMI
SKU

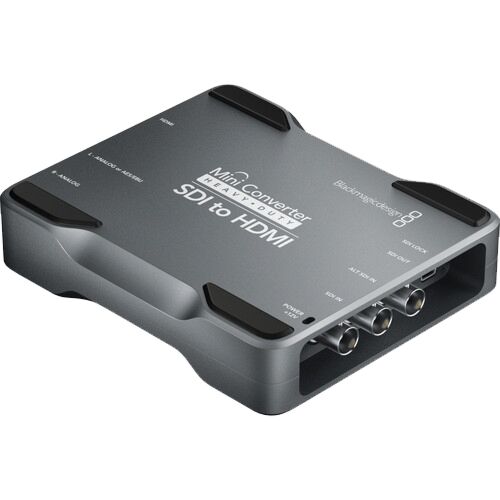

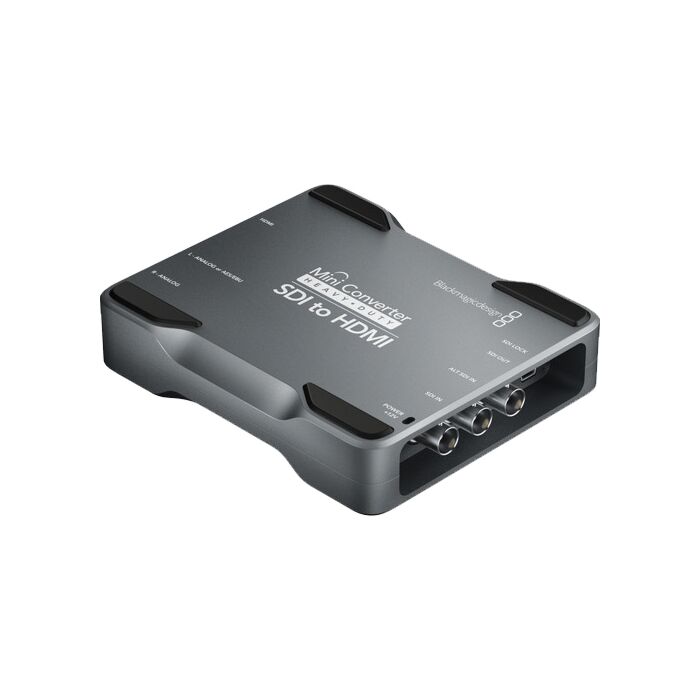

Blackmagic Design Mini Converter H/Duty – SDI to HDMI
Blackmagic Design Mini Converter H/Duty - SDI to HDMI (CONVMH/DUTYBSH)
Features:
- Rugged Machined Aluminum
- SDI to HDMI Conversion
- 2x 3G/HD/SD-SDI In (Redundant Input)
- 1x HDMI Out
- 1x SDI Loop Out
- AES/EBU & Balanced Analog Audio Outputs
- Audio De-Embedding from the SDI Signal
- USB Input & Mini Switches for Settings
- Dust & Dirt Resistant
| Input | 1x SDI (switchable between SD, HD & 3 Gb/s SDI; auto-detects SD or HD) 1x SDI redundant input (automatically switches over if main SDI input is lost) |
| Output | 1x HDMI 1x SDI (automatically matches the SD, HD, or 3 Gb/s input) 2x Channels of balanced analog audio (via standard 1/4" jacks) 2x Channels of balanced AES/EBU digital audio (output shared with analog audio via one of the 1/4" jacks) |
| Updates and Configuration | Via USB 2.0 high speed (480 Mb/s) |
| Standards | SDI Format Support: 625p25 PAL, 525p29.97 NTSC, 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60 HDMI Format Support: 625p25 PAL, 525p29.97 NTSC, 625p50 PAL, 525p59.94 NTSC, 1080p23.98, 1080p24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60 |
| Compliance | SDI: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 |
| Video Sampling | SDI: 4:2:2 |
| Audio Sampling | SDI: 48 kHz and 24-bit |
| Color Precision | SDI: 4:2:2 HDMI: 4:2:2 and 4:4:4 |
| Color Space | SDI: YUV HDMI: YUV and RGB |
| Re-clocking | Yes |
| Settings Control | Mini switches or USB software |
| Firmware Upgrade | Via included firmware updater application |
| Power | 12V DC (universal power supply included, with international socket adapters) |
| Power Consumption | 110V: 82mA 220V: 41mA |
