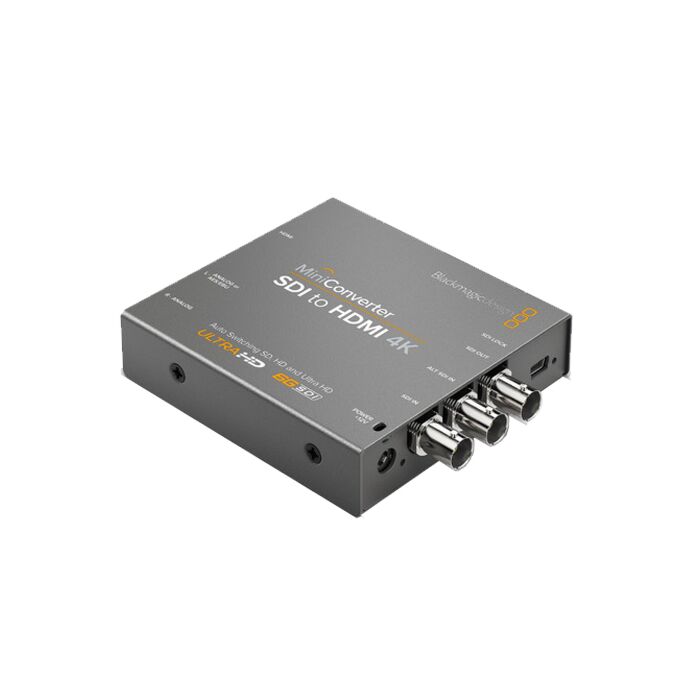

Blackmagic Design CONVMBSH4K Mini Converter - SDI to HDMI 4K
Blackmagic Design CONVMBSH4K Mini Converter - SDI to HDMI 4K
SKU
Blackmagic Design CONVMBSH4K Mini Converter - SDI to HDMI 4K
Blackmagic Design Mini Converter - SDI to HDMI 4K (CONVMBSH4K)
Features:
- Single Link SD/HD/3G/6G-SDI Input
- 4K HDMI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- 24-bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
| Video Input | 1 x 6G-SDI 1 x 6G-SDI redundant input |
| Video Output | 1 x HDMI, Type A 1 x 6G-SDI, loop-through |
| Multi-Rate Support | Auto detection of SD, HD, or 6G SDI signals |
| Reclocking | Yes |
| Audio Input | Embedded in SDI |
| Audio Output | Embedded in HDMI output 2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio |
| Format Support | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M |
| SDI Video Rates | Switchable between SD, HD, and 6G SDI |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI |
| HDMI Format Support | SD: NTSC 525/23.98 and 525/29.97 PAL 625/25 HD: 720p 50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080p 23.98/24/25 UHD/4K 3840x2160p23.98/24/25/29.97/30 4096x2160p 24 |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| HDMI Color Space | YUV and RGB |
| Settings Control | DIP switches or USB software for Mac PS X and Windows |
| Firmware Upgradable | Via USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | 5.2 W |
| Operational Voltage Range | 12 to 31 VDC |
| Operating Temperature | 32 to 104⁰ F (0 to 40 ⁰ C) |
| Storage Temperature | -4 to 113⁰ F (-20 to 45 ⁰ C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.49 x 3.63 x 0.90" (11.40 x 9.22 x 2.29 cm) |
| Weight | 9.13 oz (258.83 g) |
