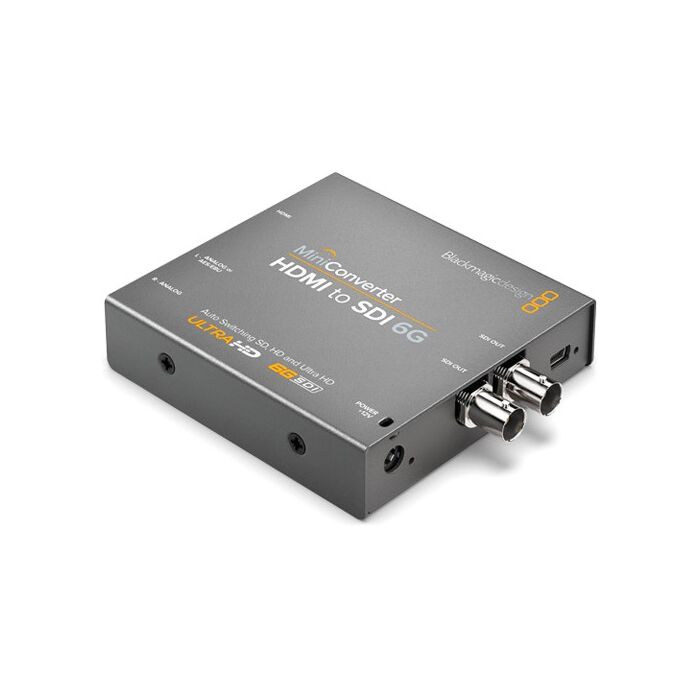

Blackmagic Design CONVMBHS24K6G HDMI to SDI 6G Mini Converter
The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment.
Features:
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
| Video Input | 1 x HDMI, Type A |
| Video Output | 2 x 6G-SDI Note: Both 6G outputs send duplicate signals and can't be used to support Dual Link formats |
| Multi-Rate Support | Auto detection of SD, HD, 3G or 6G SDI signals |
| Reclocking | Yes |
| Audio Input | Analog: 2 channels with 1 x 1/4" jack per channel AES/EBU: 4 channels with 1 x 1/4" jack |
| Format Support | DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
| SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | Switchable between SD, HD, Ultra HD and DCI 4K |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| HDMI Format Support | UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 4:4:4 |
| HDCP Compliance | No. HDMI input is unable to capture from copy-protected HDMI sources |
| Format Conversion | HD down conversion |
| Settings Control | Mini switches or USB software |
| Firmware Upgradeable | Via USB |
| Power Supply | 12 VDC |
| Power Consumption | 4.44 W |
| Operational Voltage Range | 12 to 31 VDC |
| Operating Temperature | 32 to 104⁰ F (0 to 40 ⁰ C) |
| Storage Temperature | -4 to 113⁰ F (-20 to 45 ⁰ C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.49 x 3.63 x 0.90" (11.40 x 9.22 x 2.29 cm) |
| Weight | 8.6 oz (243.8 g) |
