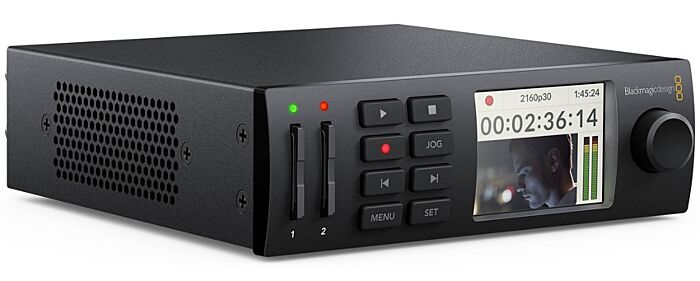

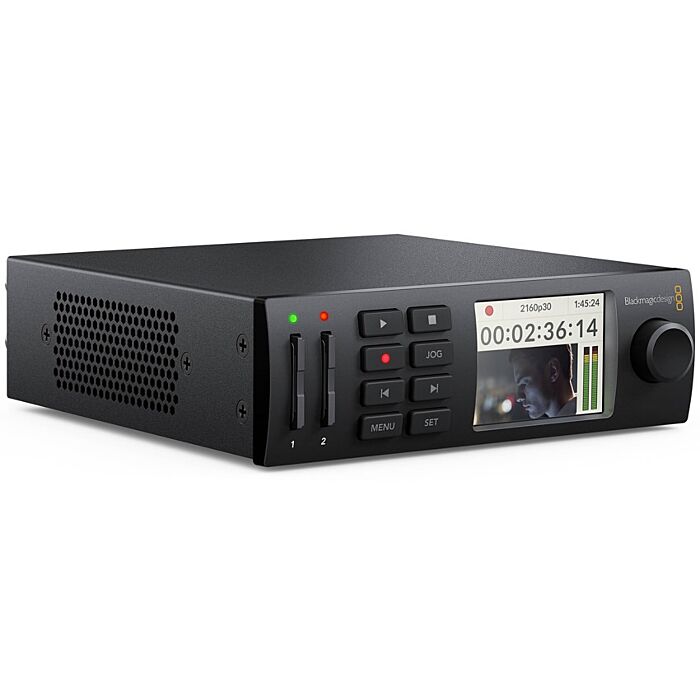

Blackmagic Design BMD-HYPERD/STM HyperDeck Studio Mini
Blackmagic Design BMD-HYPERD/STM HyperDeck Studio Mini
SKU
BMD-HYPERD/ST/DAHM-1 Source
HyperDeck Studio Mini is a miniaturized broadcast deck that’s so compact and portable you can use it anywhere! You get a choice of incredible quality H.264, ProRes or DNx codecs recorded to SD or UHS-II card media in either QuickTime or MXF file formats. HyperDeck Studio Mini has features such as 6G-SDI for all formats up to 2160p30, HDMI for monitoring, dual SD card slots for non-stop recording and built in sync generator that lets you daisy chain and synchronize multiple decks together! The dual link 6G-SDI out can be used for fill and key playback! HyperDeck Studio Mini includes RS-422 deck control, built in AC power and Ethernet with PoE+ for alternate power.
Features:
- SD, HD and Ultra HD recorder and player
- 1 x 6G-SDI input, 2 x 6G-SDI outputs, 1 x HDMI output
- Two SD card slots for continuous recording to regular SD cards or UHS-II cards
- ProRes and DNx codec support
- ProRes 4444 playback with fill and key
- LCD for monitoring, status information and menu settings
- FTP over ethernet
- Remote control via ethernet or RS-422 connection
- Internal sync generator
- Power over ethernet, PoE+
- Built in power supply
| SDI Video Input | 1 |
| SDI Video Output | 2 |
| SDI Rates | 270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI |
| HDMI Video Outputs | 1 x HDMI type A connector |
| Power over Ethernet | 1 x Ethernet with Power over Ethernet |
| Analog Video Inputs | None |
| Analog Video Outputs | None |
| Analog Audio Inputs | None, embedded audio only |
| Analog Audio Outputs | None, embedded audio only |
| Timecode Connection | None |
| SDI Audio Inputs | 16 channels embedded in SD and HD in QuickTime files |
| SDI Audio Outputs | 16 channels embedded in SD and HD in QuickTime files |
| HDMI Audio Inputs | None |
| HDMI Audio Outputs | 8 channels embedded in SD, HD and UHD in QuickTime files |
| Reference Input | Tri-Sync or Black Burst |
| Reference Generator | Tri-Sync or Black Burst |
| Computer Interface | 1 x USB 2.0 type C for software updates and HyperDeck Utility software control |
| SD Video Standard | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standard | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| SDI Compliance | SMPTE 259M, 292M, 296M and 425M |
| SDI Metadata Support | HD RP 188 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48kHz and 24-bit |
| Video Sampling | 4:4:4:4 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Media | 2 x SD for SD, HD and Ultra recording |
| Media Type | UHS II and able to support ProRes 4444 playback and 422 recording |
| Media Format | Can format discs to ExFAT (Windows/Mac) or OS X Extended (Mac) file systems |
| Supported Codecs | DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF. ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime. ProRes 4444 QuickTime in HD for fill and key playback, H.264 in 720p and 1080p |
| Computer Capture | None |
| FTP Clients | Cyberduck, Transmit, FileZilla |
| Built-in Control Panel | 8 buttons for menu control, 2.2 inch color display, and a rotary wheel |
| External Control | RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol. Supports remote FTP file upload |
| Software Included | Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only) |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start, or via updater software |
| Display | Built in LCD for video, audio and timecode monitoring and menu settings 2 x LED indicator lights above the SD slots |
| Power Supply | 1x Internal 100 - 240V AC |
| Operating Temperature | 0° to 40° C (0° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
