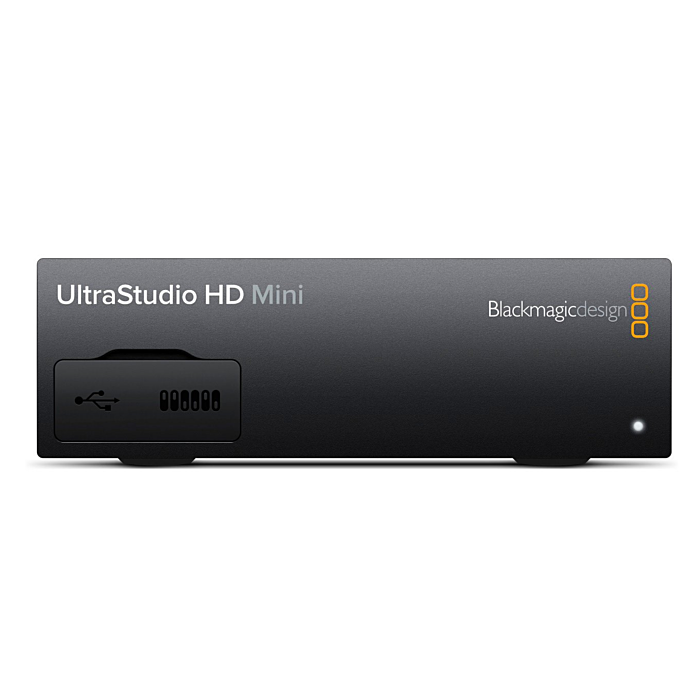

UltraStudio HD Mini
Quick Overview
All in one HD capture and playback in a compact 1/3rd rack width design. Powers from Thunderbolt 3 and includes deck control and reference. Supports 3G‑SDI and HDMI, plus upgradable front panel LCD.
UltraStudio HD Mini is a portable Thunderbolt 3 capture and playback solution that's small enough to take anywhere and powerful enough to work on high end projects. It can capture and playback all formats up to 1080p60 in full 10-bit YUV, or up to 1080p30 and 2K DCI in 12-bit RGB. UltraStudio HD Mini features HDMI output for monitoring on a big screen television, dual 3G-SDI outputs for fill and key playback, plus analog audio and video inputs for digitizing and archiving materials from older analog decks.
Features:
- Thunderbolt 3 interface capable of up to 40 Gb/s transfer speeds.
- Thunderbolt 3 for bus powered operation.
- 3G-SDI input and two 3G-SDI outputs for dual link SDI playback and fill and key.
- Supports 3G-SDI Level A and Level B.
- HDMI 1.4a output.
- Y, Cb, Cr and NTSC/PAL input.
- Two 1/4" jack connectors for balanced analog audio input.
- Tri-Sync and Black Burst reference input.
- RS-422 deck control connection.
- Supports 16 channels of embedded audio on SDI and 2 channels on HDMI.
- Supports all SD and HD formats up to 1080p60 and 2K DCI 25p for 10-bit YUV.
- Supports all SD and HD formats up to 1080p30 for 12-bit RGB.
- Supports optional Teranex Mini Smart Panel for status.
- Supports optional Teranex Mini Rack Shelf for rack mounting.
| SDI Video Input | 1x 3Gb/s SD/HD switchable |
| SDI Video Output | 2x 3Gb/s SD/HD switchable, supports single and dual link 4:2:2/4:4:4 |
| SDI Rates | 270Mb, 1.5G, 3G |
| Optical SDI | None |
| HDMI Video Input | None |
| HDMI Video Output | 1x HDMI 1.4b type A connector |
| Analog Video Input | Y, B-Y, R-Y/NTSC/PAL |
| Analog Video Input | None |
| Analog Audio Input | 2x 1/4 inch jack connectors for balanced and unbalanced analog audio |
| Analog Audio Output | None, embedded audio only |
| SDI Audio Input | 16 Channels embedded in SD and HD |
| SDI Audio Output | 16 Channels embedded in SD and HD |
| HDMI Audio Output | 2 Channels embedded in SD and HD |
| Reference Input | Tri-Sync or Black Burst |
| SD Video Standard | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standard | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60 |
| 2K Video Standard | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning |
| Audio Sampling | Television rate of 48kHz and 24 bit |
| SDI Video Sampling | 4:2:2/4:4:4 |
| Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p30 and 8, 10-bit YUV 4:2:2 in all standards |
| Color Space | REC 601, REC 709 |
| HDMI Resolution | Pixel for pixel HD resolution input to connected device |
| Multiple Rate Support | SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Power Requirement | Powered by Thunderbolt cable |
| Operating Temperature | 32°F to 104°F |
| Storage Temperature | -4°F to 113°F |
| Relative Humidity | 0% to 90% non-condensing |
