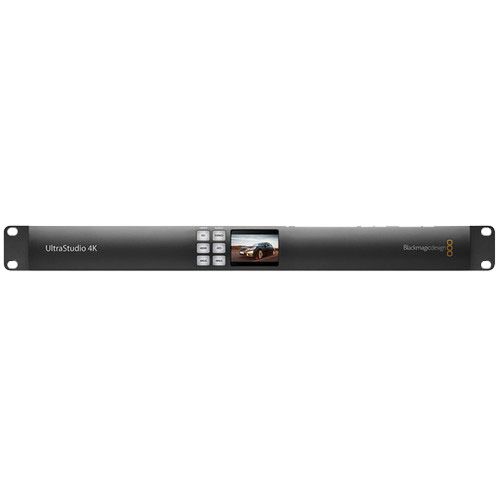

Blackmagic Design BDLKULSR4K-2 UltraStudio 4K 2
Blackmagic Design BDLKULSR4K-2 UltraStudio 4K 2
SKU
Blackmagic Design BDLKULSR4K-2 UltraStudio 4K 2
Blackmagic Design UltraStudio 4K 2 (BDLKULSR4K/2)
Features:
- 1RU Rack Mount & Table-Top I/O Device
- 2x 20Gb/s Thunderbolt 2 Ports
- DCI/UHD 4K 4:2:2 Up to 30p by 1x 6G-SDI
- DCI/UHD 4K 4:2:2 50p-60p by 2x 6G-SDI
- DCI/UHD 4K 4:2:2 by HDMI
- 1080p RGB 4:4:4 by Single-Link 3G-SDI
- 1080p 4:2:2 by Single-Link HD-SDI
- 1080p 4:4:4 by Dual-Link HD-SDI
- Dual Channel 2D/3D Stereoscopic by SDI
- HD Up/Down/Cross Conversion
| SDI Video Input | 2x 10-bit SD/HD/Ultra HD/4K (2D/3D switchable) Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4 4K and 1080p formats supported: DCI / UHD 4K 4:2:2 by single-link 6G-SDI 1080p RGB 4:4:4 by single-link 3G-SDI 1080p 4:2:2 by single-link HD-SDI 1080p 4:4:4 by dual-link HD-SDI |
| SDI Video Loop | 2x reclocked, 10-bit SD, HD, 3G-SDI, 6G-SDI |
| SDI Video Output | 2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable) Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4 4K and 1080p formats supported: DCI / UHD 4K 4:2:2 by single-link 6G-SDI 1080p RGB 4:4:4 by single-link 3G-SDI 1080p 4:2:2 by single-link HD-SDI 1080p 4:4:4 by dual-link HD-SDI |
| Analog Video Input | 1x Component YUV on 3 BNCs 1x Composite on 1 BNC |
| Analog Video Output | 1x Component YUV on 3 BNCs 1x composite on 1 BNC |
| HDMI Video Input | 2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable) Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4 4K and 1080p formats supported: DCI / UHD 4K 4:2:2 by single-link 6G-SDI 1080p RGB 4:4:4 by single-link 3G-SDI 1080p 4:2:2 by single-link HD-SDI 1080p 4:4:4 by dual-link HD-SDI |
| SDI Video Output | 2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable) Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4 4K and 1080p formats supported: DCI / UHD 4K 4:2:2 by single-link 6G-SDI 1080p RGB 4:4:4 by single-link 3G-SDI 1080p 4:2:2 by single-link HD-SDI 1080p 4:4:4 by dual-link HD-SDI |
| SDI Video Output | 2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable) Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4 4K and 1080p formats supported: DCI / UHD 4K 4:2:2 by single-link 6G-SDI 1080p RGB 4:4:4 by single-link 3G-SDI 1080p 4:2:2 by single-link HD-SDI 1080p 4:4:4 by dual-link HD-SDI |
| SDI Video Output | 2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable) Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4 4K and 1080p formats supported: DCI / UHD 4K 4:2:2 by single-link 6G-SDI 1080p RGB 4:4:4 by single-link 3G-SDI 1080p 4:2:2 by single-link HD-SDI 1080p 4:4:4 by dual-link HD-SDI |
