Blackmagic Design BINTSSHU Intensity Shuttle

Blackmagic Design BINTSSHU Intensity Shuttle

Blackmagic Design HYPERD-PT2 HyperDeck Shuttle 2

Blackmagic Design HYPERD-PT2 HyperDeck Shuttle 2

Blackmagic Design BDLKULSDZMINREC UltraStudio Mini Recorder

Blackmagic Design BDLKULSDZMINREC UltraStudio Mini Recorder
SKU

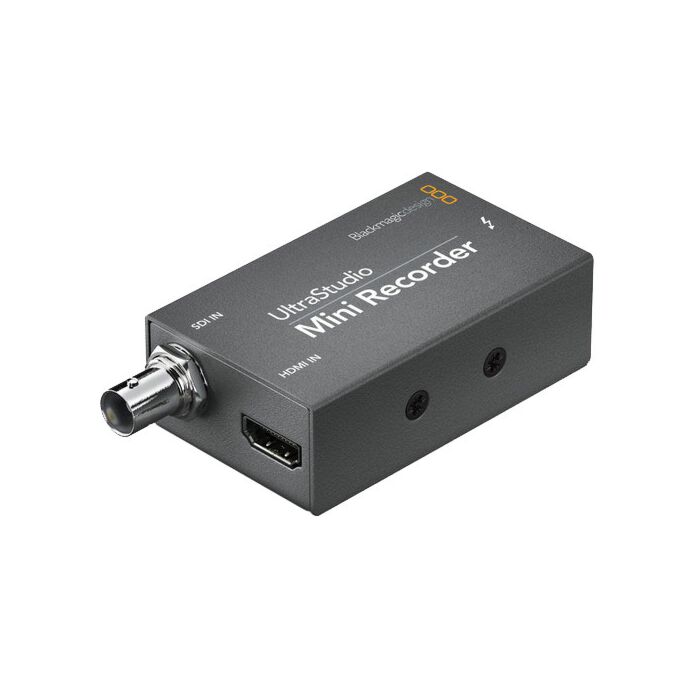

Blackmagic Design BDLKULSDZMINREC UltraStudio Mini Recorder

Blackmagic Design UltraStudio Mini Recorder (BDLKULSDZMINREC)

Features:

  • Capture Aspect of Capture/Playback Card
  • Transfers Video from Camera to Computer
  • SDI, HDMI, Thunderbolt / Embedded Audio
  • Captures Live Feeds and Playback Feeds
  • Supports Resolutions up to 1080i60
  • 10-Bit Color Precision / 4:2:2 Sampling
  • Real Time Colorspace Conversion
  • Software Based Down Conversion
 SDI Video Output  1x 10-bit SD/HD switchable
 HDMI Video Output  1x HDMI type A connector
 SDI Audio Output  8 channels embedded in SD and HD
 HDMI Audio Output  8 channels embedded in SD and HD
 Computer Interface  Thunderbolt
 SD Format Support  625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC
 HD Format Support  720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
 SDI Compliance  SMPTE 259M and SMPTE 292M
 SDI Metadata Support  VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning
 Sampling  Video: 4:2:2Audio: Television standard sample rate of 48 kHz at 24 bit
 Color Precision  10-bit
 Color Space  REC 601, REC 709
 HDMI Configuration  HDMI automatically configures to connected display
 HDMI Resolution  Pixel for pixel HD resolution input to connected device
 HDMI Color Precision  10-bit
 Multiple Rate Support  SDI and HDMI are switchable between standard definition and high definition
 Colorspace Conversion  Hardware based real time
 HD Down Conversion  Software based down conversion during video playback
 Real Time Effects  Apple Final Cut Pro internal effects Adobe Premiere Pro Mercury Playback Engine effects Avid Media Composer 6 internal effects
 Internal Software Upgrade  Firmware built into software driver. Loaded at system start or via updater software
 Physical Installation  Requires computer with a Thunderbolt port
 System Compatibility  Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later
