Blackmagic Design BDLKULSDZMINMON UltraStudio Mini Monitor
Blackmagic Design BDLKULSDZMINMON UltraStudio Mini Monitor
SKU
Blackmagic Design BDLKULSDZMINMON UltraStudio Mini Monitor

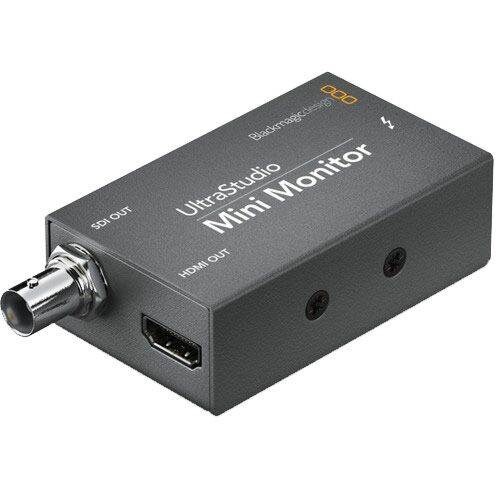

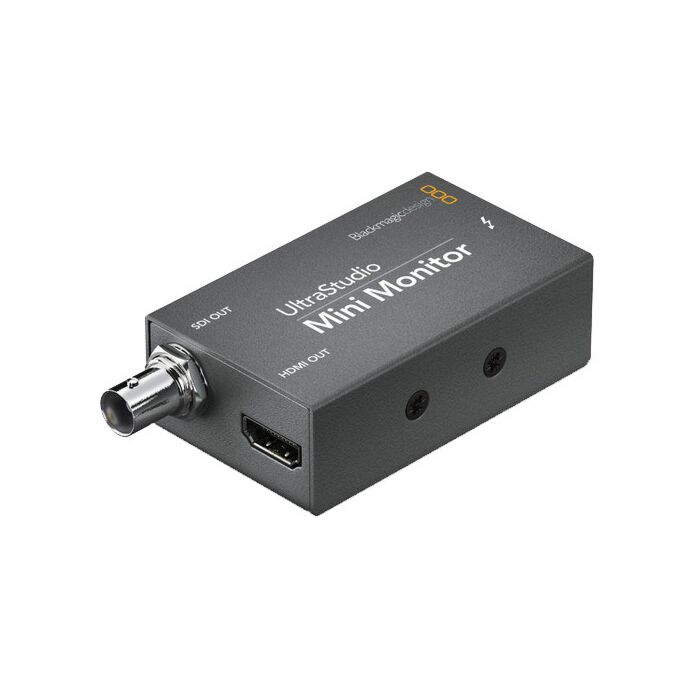

Blackmagic Design UltraStudio Mini Monitor (BDLKULSDZMINMON)
Features:
- Playback Aspect of Capture/Playback Card
- Outputs Footage from Computer to Monitor
- Enables Color Grading on Top-Res Monitor
- SDI, HDMI, Thunderbolt / Embedded Audio
- Supports Resolutions up to 1080i60
- 10-Bit Color Precision / 4:2:2 Sampling
- Real Time Colorspace Conversion
- Software Based Down Conversion
| SDI Video Output | 1x 10-bit SD/HD switchable |
| HDMI Video Output | 1x HDMI type A connector |
| SDI Audio Output | 8 channels embedded in SD and HD |
| HDMI Audio Output | 8 channels embedded in SD and HD |
| Computer Interface | Thunderbolt |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60 |
| SDI Compliance | SMPTE 259M and SMPTE 292M |
| SDI Metadata Support | VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning |
| Sampling | Video: 4:2:2Audio: Television standard sample rate of 48 kHz at 24 bit |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Configuration | HDMI automatically configures to connected display |
| HDMI Resolution | Pixel for pixel HD resolution input to connected device |
| HDMI Color Precision | 10-bit |
| Multiple Rate Support | SDI and HDMI are switchable between standard definition and high definition |
| Colorspace Conversion | Hardware based real time |
| HD Down Conversion | Software based down conversion during video playback |
| Real Time Effects | Apple Final Cut Pro internal effects Adobe Premiere Pro Mercury Playback Engine effects Avid Media Composer 6 internal effects |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software |
| Physical Installation | Requires computer with a Thunderbolt port |
| System Compatibility | Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later |
