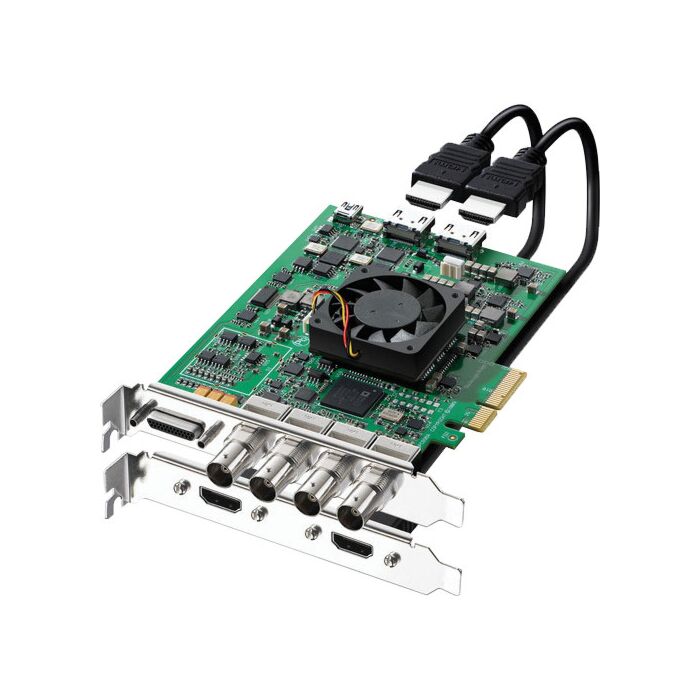

Blackmagic Design BDLKHDEXTR4K Decklink 4K Extreme
Blackmagic Design BDLKHDEXTR4K Decklink 4K Extreme (BDLKHDEXTR4K)
SKU
Blackmagic Design BDLKHDEXTR4K Decklink 4K Extreme
If you are looking for Blackmagic Design Decklink 4K Extreme, USA Security Systems offers a great package deal.
Featuring a High Performance design for Working Film Quality 4K! This includes single and dual channel SDI capture, and offers playback for both regular 2D and 3D stereoscopic workflows. Allows you to work in SD, HD, 2K and 4K. It also includes dual link 3 Gb/s SDI, HDMI 3D and analog component/composite/s-video connections which all work in all video formats up to 1080p60. Offers broadcast quality up, down and cross conversion, plus built in SD/HD internal keyer. May not be compatible with Dell computers.
Features:
- DCI / UHD 4K 4:2:2 by Single-Link 6G-SDI
- DCI 4K 4:2:2 by HDMI
- 1080p RGB 4:4:4 by Single-Link 3G-SDI
- 1080p 4:2:2 by Single-Link HD-SDI
- 1080p 4:4:4 by Dual-Link HD-SDI
- Dual Channel 2D/3D Stereoscopic by SDI
- Breakout Cable for Analog / RS-422
- Genlock, Deck Control, SD/HD Keyer
- Up/Down/Cross Conversion
- Compatible with Mac, Windows, and Linux
- AES and Analog Balanced Audio
- 16 Channel SDI Audio
| SDI Video Input | 2x 10-bit SD/HD/2K/4K and 2D/3D switchable Supports 3 Gb/s and 6 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4 |
| SDI Video Output | 2x 10-bit SD/HD/2K/4K and 2D/3D switchable Supports 3 Gb/s and 6 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4 |
| Analog Video Input | 1x Component YUV on 3 BNCs switchable to S-Video or Composite Component supports HD and SD |
| Analog Video Output | 1x Component YUV on 3 BNCs switchable to S-Video and Composite Component supports HD and SD |
| HDMI Video Input | 1x HDMI type A connector including 3D frame packing support and Ultra HD 4K support |
| HDMI Video Output | 1x HDMI type A connector including 3D frame packing and 4K monitoring support |
| Analog Audio Input | 2 channels of professional balanced analog audio via XLR connectors |
| Analog Audio Output | 2 channels of professional balanced analog audio via XLR connectors |
| AES/EBU Audio Input | 2 channels unbalanced with sample rate converter |
| AES/EBU Audio Output | 2 channels unbalanced |
| SDI Audio Input | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
| SDI Audio Output | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
| HDMI Audio Input | 8 channels embedded in SD and HD |
| HDMI Audio Output | 8 channels embedded in SD and HD |
| Sync Input | Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD or 2K format |
| Device Control | Sony compatible RS-422 deck control ports Serial ports TxRx direction reversible under software control |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe Slots |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC |
| Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4 |
| Supported Applications | Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in / live:cut / just:play / just:live, Softron OnTheAir / MovieRecorder / OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro / Studio / Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC, and 525/23.98 NTSC |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60 |
| 2K Format Support | 2048 x 1556PsF23.98, 2048 x 1556PsF24, 2048 x 1556PsF25, 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25 |
| 4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601 |
| SDI Metadata Support | VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning |
| Sampling | Video: 4:2:2 and 4:4:4 (4K is 4:2:2 only) Audio: Television standard sample rate of 48 kHz at 24 bit |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Configuration | HDMI automatically configures to connected display |
| HDMI Resolution | Pixel for pixel up to 4K resolutions |
| HDMI Color Precision | 10-bit |
| Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K Component analog video connections are switchable between SD and HD |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources Always confirm copyright ownership before capture or distribution of content |
| Colorspace Conversion | Hardware based real time |
| 3D Processing | Dual stream and frame packed capture & playback |
| HD Down Conversion | Built in, high quality hardware down converter outputs HD-SDI on SDI A output, SD-SDI on SDI B output and Composite and S-Video when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles |
| HD Up Conversion | Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog |
| Cross Conversion | Built-in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback |
| Real Time Effects | Apple Final Cut Pro internal effects Adobe Premiere Pro Mercury Playback Engine effects Avid Media Composer internal effects DaVinci Resolve |
| Operating Systems Supported | Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later Windows 7 or Windows 8 Linux |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux |
| Operating Temperature | 32 to 104∞F (5 to 40∞C) |
| Storage Temperature | -4 to 113∞F (-20 to 45∞C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | Depth: 6.38" (16.2 cm) |
| Weight | 6.7 oz (190 g) |
