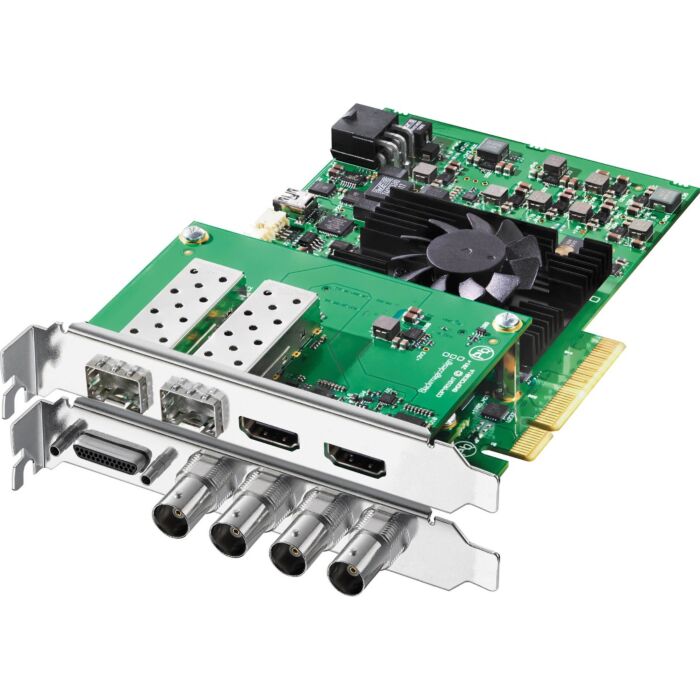

Blackmagic BMD-BDLKHDEXTR4K12G Design DeckLink 4K Extreme 12G
Blackmagic BMD-BDLKHDEXTR4K12G Design DeckLink 4K Extreme 12G
SKU
BMD-BDLKHDEXTR4K12G-1 Source
DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more! Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility!
Features:
- 8-Lane PCIe Gen2 I/O Card
- Multi-Rate 12G-SDI and HDMI Connections
- Supports UHD 4K and DCI 4K Up to 60 fps
- Single & Dual Link 4:4:4:4/4:2:2 Signals
- 3D Stereoscopic SDI Output at 4:4:4:4
- Up/Down/Cross Conversion
- Optional Optical Fiber I/O Modules
- Breakout Cable for Analog / RS-422
- Genlock & Deck Control
- Compatible with Mac, Windows, and Linux
| SDI Video Input | 2 x 12G-SDI Supports single link and dual link 4:2:2/4:4:4 and is 2D/3D switchable |
| SDI Video Output | 2 x 12G-SDI Supports single link and dual link 4:2:2/4:4:4 and is 2D/3D switchable |
| Analog Video Input | 1 x Component YUV on 3 BNCs switchable to S-Video or Composite Component supports HD and SD |
| Analog Video Output | 1 x Component YUV on 3 BNCs switchable to S-Video and Composite Component supports HD and SD |
| HDMI Video Input | 1 x HDMI type A connector (supports Ultra HD 4K 60p in 4:2:0) |
| HDMI Video Output | 1 x HDMI type A connector (supports Ultra HD 4K 60p in 4:2:0) |
| Analog Audio Input | 2 channels of professional balanced analog audio via XLR connectors |
| Analog Audio Output | 2 channels of professional balanced analog audio via XLR connectors |
| AES/EBU Audio Input | 2 channels unbalanced with sample rate converter |
| AES/EBU Audio Output | 2 channels unbalanced |
| SDI Audio Input | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
| SDI Audio Output | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
| HDMI Audio Input | 8 channels embedded in SD and HD |
| HDMI Audio Output | 8 channels embedded in SD and HD |
| Sync Input | Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD or 2K format |
| Device Control | Sony compatible RS-422 deck control ports Serial ports TxRx direction reversible under software control |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe Slots |
| Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4 |
| Supported Applications | Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in / live:cut / just:play / just:live, Softron OnTheAir / MovieRecorder / OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro / Studio / Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster |
| SD Format Support | 625/25i PAL, 525/59.94i NTSC |
| HD Format Support | 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 |
| 2K Format Support | 2048 x 1080PsF 23.98/24/25 2048 x 1080p 23.98/24/25/47.95/48/50/59.94/60 |
| 4K Format Support | 3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60 4096 x 2160p 23.98/24/25/29.97/30/50/59.94/60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601 |
| SDI Metadata Support | VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning |
| Sampling | Video: 4:2:2, 4:4:4, and 4:4:4:4Audio: Television standard sample rate of 48 kHz at 24 bit |
| Color Precision | 8/10-bit YUV 4:2:2 and 8/10/12-bit RGB 4:4:4 in HD, 2K, and 4K |
| Color Space | REC 601, REC 709 |
| HDMI Configuration | HDMI automatically configures to connected display |
| Deep Color Support | Yes |
| Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K Component analog video connections are switchable between SD and HD |
| HDCP Compatible | No |
| Colorspace Conversion | Hardware based real time on output |
| 3D Processing | Dual stream and frame packed capture & playback |
| HD Down Conversion | Built-in hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles. |
| HD Up Conversion | Built in hardware up conversion from SD to 720p or 1080p on playback. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom. HD outputs via HD-SDI, HDMI, and component analog. |
| Cross Conversion | Built-in hardware cross conversion from 720p to 1080p, 1080p to 720p on playback. |
| Real Time Effects | Apple Final Cut Pro internal effects Adobe Premiere Pro Mercury Playback Engine effects Avid Media Composer internal effects DaVinci Resolve |
| Operating Systems Supported | Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later Windows 7 or Windows 8 Linux |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software |
| Physical Installation | PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows, and Linux Mac OS X systems require a Mac Pro computer with PCI Express slots |
| Operating Temperature | 32 to 104∞F (5 to 40∞C) |
| Storage Temperature | -4 to 113∞F (-20 to 45∞C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | Depth: 6.69" (17 cm) |
| Weight | 10.56 oz (299.37 g) |
