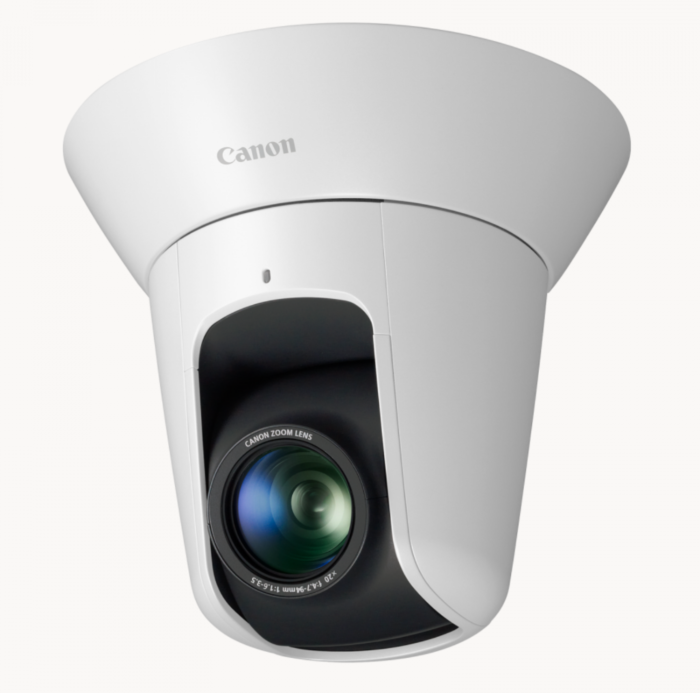

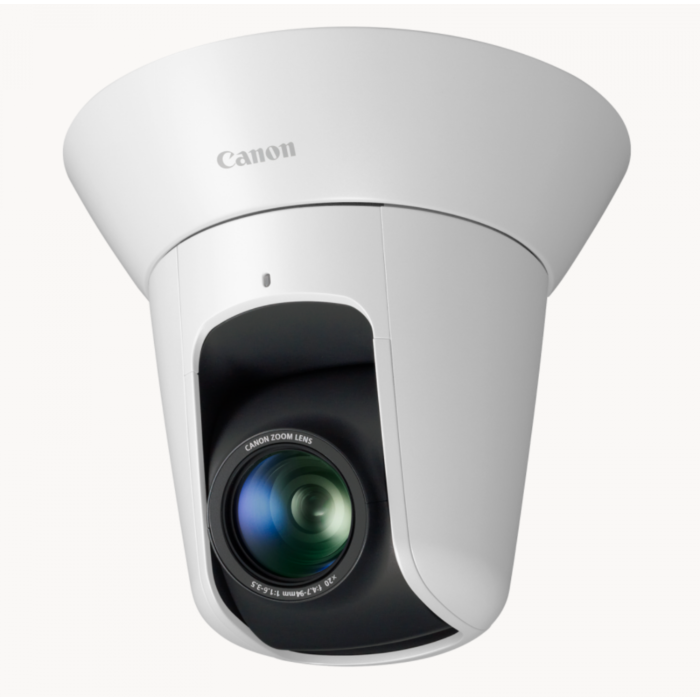

Axis VB-M46 1.3 MP PTZ Security Network Camera

The VB-M46 1.3 MP PTZ IP security camera combines a powerful 320x zoom, excellent low-light capability, WDR (Wide Dynamic Range) function and fast auto-focus. Flexible installation options for indoor use. *Available In Black or White Color Options*
SKU
Axis VB-M46B

The VB-M46 inherits the high performance features of previous Canon PTZ (Pan-Tilt-Zoom) cameras, but includes significant improvements with a new image sensor and processor. Ideal for the security and surveillance markets, the VB-M46 contains a new 1.3 megapixel high sensitivity image sensor (1280 x 960) and 20x optical zoom lens which provides exceptional low light performance with a minimum subject illumination level of just 0.02 lux at 1/30 shutter speed.

The new image processor provides high quality video streaming, including H.265, H.264, and MJPEG video formats up to 60 fps. Other improvements include High Dynamic Range (HDR) that combines frames of different exposure, giving the user even exposure over the camera's field of view. Along with improved video, the VB-M46 also now supports the AAC-LC audio standard for improved audio quality up to 48 kHz at 128 kbps. An available simple camera setting allows users to instantly set their camera up to fit their application such as Motion Priority, Low Light Visibility, Depth Priority, and Data size reductions. Various power sources include Power over Ethernet (PoE), 12V DC, as well as the optional PA-V18 ac adapter. The VB-M46 also supports ONVIF profile T to allow for quick integration with 3rd party video management solutions. With all the new features and performance enhancements, the Canon VB-M46 continues the Canon tradition of exceeding the demands of the security and surveillance market.

Features:

  • 20x Optical Zoom with Fast and Precise Pan/Tilt Mechanism
  • 1.3 Megapixel Sensor (Native 1280 x 960 Resolution) up to 60 FPS
  • Updated 1/2.8" type CMOS type CMOS Sensor with Superb Low Light Performance
  • Enhanced Presets That Include PTZ Positioning and Video Settings
  • Advanced New Image Processor Helps Maximize Image Quality and Minimize Power Consumption
  • Area Specific Data Size Reduction and Motion Adaptive Noise Reduction
  • Wide Dynamic Range (WDR)
  • Simultaneous Streaming of H.265. H.264, and M-JPEG Codecs in Multiple Resolutions
  • 2-way Audio supporting both AAC-LC and G-711 Audio formats
  • On-Board Video Analytics and Versatile Functions
  • ONVIF Profile T Conformant
  • Built-in SD Card Slot with Enhanced SD Card Functionality
  • Various Power Options (12 V DC and PoE IEEE 802.3af)
  • Available In Black and White Color Options
CAMERA
Image Sensor 1/2.8 type CMOS
Number Of Effective Pixels Approx. 1.3 million pixels
Scanning Method Progressive Scan
Lens 20x optical zoom lens with auto focus
Focal Length 4.7 (W) - 94mm (T)
F-Number F1.6 (W) - F3.5 (T)
Digital Zoom 16x
Horizontal Viewing Angle 62.4° (W) - 3.3° (T)
Vertical Viewing Angle 36.3° (W) - 1.9° (T)
Day/Night Switch Auto/Day Mode/Night Mode
I/R Cut Filter Automatically removable infrared-cut filter
Min. Subject Illumination - Day (Color) 0.02 lux (F1.6, shutter speed 1/30 sec., 50IRE)
Min. Subject Illumination - Night (Monochrome) 0.003 lux (F1.6, shutter speed 1/30 sec., 50IRE)
Focus Modes Auto/One-shot AF/Manual/Fixed at infinity
AF Response Speed High, Normal, and Low
Shooting Distance Day Mode: 0.3 m (12 in.) – infinity (W), 1.0 m (3.3 ft.) – infinity (T) Night Mode: 1.0 m (3.3 ft.) – infinity (W), 1.5 m (4.9 ft.) – infinity (T)
Shutter Speed 1 - 1/16000 sec.
Exposure Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Auto (Aperture-priority AE)/Manual
WDR Available
Smart Shade Control Available
Haze Compensation Available
AGC Limit Available
Image Stabilizer Digital (2 Levels)
Motion Adaptive Noise Reduction Available
Clear IR N/A
Pan Angle Range 340° (±170°)
Tilt Angle Range 100° (ceiling-mounted position: -90° - +10°)
Rotation Angle Range N/A
IR Illumination Range N/A
Moving Speed Pan: Max. 150°/sec., Tilt: Max. 150°/sec.
SERVER
Video Compression Method JPEG, H.264, H.265
Bit Rate Control CBR (Constant Bit Rate), VBR (Variable Bit Rate), MBR (Maximum Bit Rate)
Video Size JPEG, H.264, H.265: 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360, 480 x 270, 320 x 180 1280 x 960, 640 x 480, 320 x 240
Video Quality JPEG, H.264: 10 levels
Frame Rate System frequency 60 Hz: 1, 5, 7.5, 10, 15, 30, 60 fps System frequency 50 Hz: 1, 2.5, 5, 6.25, 10, 12.5, 25, 50 fps
Maximum Frame Rate 60fps
ADSR: AREA-SPECIFIC DATA SIZE REDUCTION Number of Specified Areas: Max. 8 windows
I-Frame Interval Available
Simultaneous Client Access Max. 30 Clients + 1 Admin Client – H.264: Max. 10 Clients – H.265: Max. 10 Clients
Camera Control Administrator, Authorized user, Guest user
Access Control User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
Encrypted Communications SSL/TLS
IEEE 802.1X EAP-TLS, EAP-TTLS, EAP-PEAP
ONVIF Version Profile-S, Profile-G, Profile-T
IPv4 Protocol TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary)
IPv6 Protocol TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary)
Auto IP Yes
Audio Compression Method G.711 μ-law (64 kbps), AAC (16/48 KHz, 16/32/64/96/128 Kbps)
Audio Communication Method Full-duplex (two-way)/half-duplex RTP, Sound Transfer Protocol by Canon
Audio File Playback Available
Privacy Mask Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)
View Restriction Available
Presets Number of registers: Max. 64 positions (+Home Position) Number of Preset Tour Route: Max. 5
Intelligent Function - Video Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Face Detection
Intelligent Function - Audio Volume Detection
Intelligent Function - Detection Settings Max. 15
Event Trigger Type External Device Input, Intelligent Function, Timer, Day/Night Mode Switching Number of Linked Events: 2 Linked Event Conditions: OR, AND (whether or not there is a sequence to events)
Image Upload FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS (e-mail)
Event Notification HTTP/HTTPS/SMTP/SMTPS (e-mail)
On-Screen Display Available
Image Cropping Function Digital PTZ
Enhanced Digital Zoom Available
Daylight Saving Time Available
Custom Settings Available
INTERFACE
Network Terminal LAN x 1 (RJ45, 100Base-TX (auto))
Audio Input Terminal ϕ3.5 mm (ϕ0.14 in.) mini-jack connector (monaural) LINE IN or MIC IN
Audio Output Terminal ϕ3.5 mm (ϕ0.14 in.) mini-jack connector (monaural) LINE OUT
External Device I/O Terminal Input x 2, Output x 2
Analog Video Out N/A
Memory Card Type SD Memory Card, SDHC Memory Card, SDXC Memory Card Supported. – Class 10 recommended.
OPERATING ENVIRONMENT
Temperature Temperature: -10°C - +50°C (+14°F - +122°F)
Humidity Humidity: 5% - 85% (without condensation)
STORAGE ENVIRONMENT
Temperature -30°C - +60°C (-22°F - +140°F)
Humidity 5% - 90% RH (without condensation)
POWER SUPPLY
PoE PoE: PoE power supply via LAN connector (IEEE802.3af compliant)
AC Adapter
PA-V18(100 - 240 V AC) (sold separately)
External Power Source 12V DC
POWER CONSUMPTION
With PoE Max. approx. 9.1 W
With AC Adapter AC Adapter PA-V18: Max. approx. 9.2 W (100 V AC) Max. approx. 9.7 W (240 V AC)
With 12VDC 7.9 W
With 24VAC+ N/A
OTHER
Dimensions (f x H) f132 x 155mm (f5.20 x 6.10 in.)
Mounting Position Ceiling
Heater N/A
Weight 1100 g (2.43 lb.)
Outdoor Ready No
IP Rating N/A
Vandal Resistant No
Impact Resistance N/A
