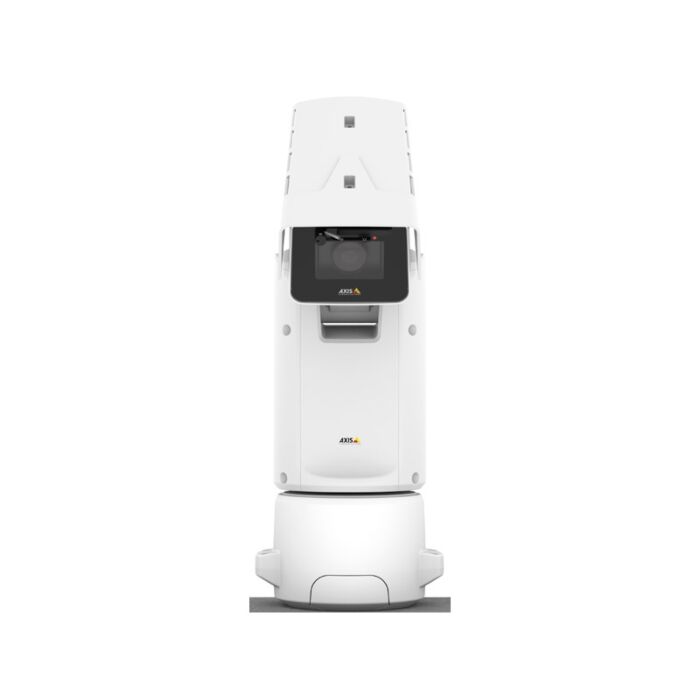

Axis Q8685-E (Q8685E) PTZ Network Camera (Discontinued)
*Product is Discontinued, Call For Replacement Options
Axis Q8685-E is perfect for completely unobstructed views and superb detail.
The new Axis Q8685-E lets operators choose between high-speed and ultra-slow pan and tilt movement – from 0.05 to 120 degrees per second. So they get smooth and jerk-free panoramic viewing when they need it and can respond quickly to events. It is capable of operating in extreme temperatures, and it can withstand hurricane-strength winds when it’s in motion of up to 47-meter per second (106 mph), and winds over 60-meter per second (135 mph) when it’s in motion and without sunshield.
Features:
Applications:
| Image Sensor | 1/2.8” progressive scan CMOS |
| Lens | Varifocal, 4.3–129 mm, F1.6–4.7 |
| Day and Night | Automatically removable infrared-cut filter in night mode |
| Minimum Illumination | Color: 0.2 lux at 30 IRE F1.6 |
| Shutter Time | 1/66500 s to 2 s |
| Pan/Tilt/Zoom | Pan: 360° endless, 0.05°/s to 120°/s |
| Video Compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG |
| Resolutions | 1920x1080 (HDTV 1080p) to 320×180 |
| Frame Rate | Up to 25/30 fps (50/60 Hz) in 1080p Up to 50/60 fps (50/60 Hz) in 720p |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, local contrast, white balance, exposure control, exposure zones, WDR - forensic capture (up to 120 dB), automatic backlight compensation, fine tuning of low-light behavior, manual shutter time, text and image overlay, 20 individual 3D privacy masks, image freeze on PTZ, electronic image stabilization |
| Security | Password protection, IP address filtering, HTTPSd encryption, network failover modef , IEEE 802.1Xd network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPSd , SSL/TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTCIP, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, Axis APTP A |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform ONVIF® Profile S and ONVIF® Profile G, specification |
| Analytics | Included AXIS Video Motion Detection, Shock Detection, Advanced Gatekeeper Supported AXIS Perimeter Defender, AXIS Cross Line Detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Event Triggers | Detectors: live stream accessed, video motion detection, shock detection, day/night mode Hardware: network, temperature Input signal: digital input, manual trigger, virtual inputs PTZ: autotracking, moving, preset reached, ready Storage: disruption, recording System: system ready |
| Event Actions | Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, external output activation, send SNMP trap, illumination, WDR mode, wiper sequence, washer sequence PTZ control: preset position, guard tour, autotracking File upload: FTP, HTTP, HTTPS, SFTP, network share, email Notification: HTTP, HTTPS,TCP, email |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel Counter |
| Casing | IP66-, and NEMA 4X-rated powder coated aluminum Color: white NCS S 1002-B Front window: tempered glass with anti-reflective coating Long-life silicone wiper Sunshield: high-impact UV-stabilized thermoplastic |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | 24 V AC/DC Typical: 16 W Max: 204 W Power loss recovery TVS 2 kV surge protection I/O connector Output voltage: 12 V DC Max load: 50 mA |
| Connectors | SFP slot (SFP module not included) f RJ45 10BASE-T/100BASE-TX/1000BASE-T network connector f Power connector I/O connector: 6-pin terminal block with 4 configurable inputs/outputs |
| Storage | Support for SD/SDHC/SDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS |
| Operating Conditions | Normal: -50 °C to 55 °C (-58 °F to 131 °F) Maximum (intermittent): 65 °C (149 °F) Arctic Temperature Control: start-up at -40 °C (-40 °F) Humidity 10–100% RH (condensing) Wind load when PTZ operational 47 m/s (106 mph), without sunshield > 60 m/s (135 mph)g Maximum effective projected area (EPA): 0.119 m2 |
| Storage Conditions | -40 °C to 70 °C (-40 °F to 158 °F) |
| Approvals | EMC EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-003 Class A, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 Environment IEC/EN 60529 IP66, IEC 62262 IK10h , NEMA 250 Type 4x, ISO 4892-2, IEC 60068-2-6, IEC 60068-2-27 |
| Dimensions | 229 x 411 x 580 mm (9 x 16 x 23 in) Maximum height with 45° tilt upwards: 680 mm (27 in) Maximum width/depth with 360° pan clearance: 633 mm (25 in) |
| Weight | 14 kg (31 lb) |
| Included Accessories | Installation Guide Windows decoder 1-user license Power connector, I/O connector Torx® bits T20 and T30 |
| Optional Accessories | AXIS T94J01A Wall Mount AXIS T94N01G Pole Mount AXIS T95A64 Corner Bracket AXIS Washer Kit B AXIS Cable 24 V DC/24-240 V AC 22 mi AXIS T8611 SFP Module LC.LX AXIS T8612 SFP Module LC.SX AXIS T8613 SFP Module 1000BASE-T AXIS T99 Illuminator Bracket Kit A Power supply DIN PS24 480 W |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3–year warranty and AXIS Extended Warranty |
