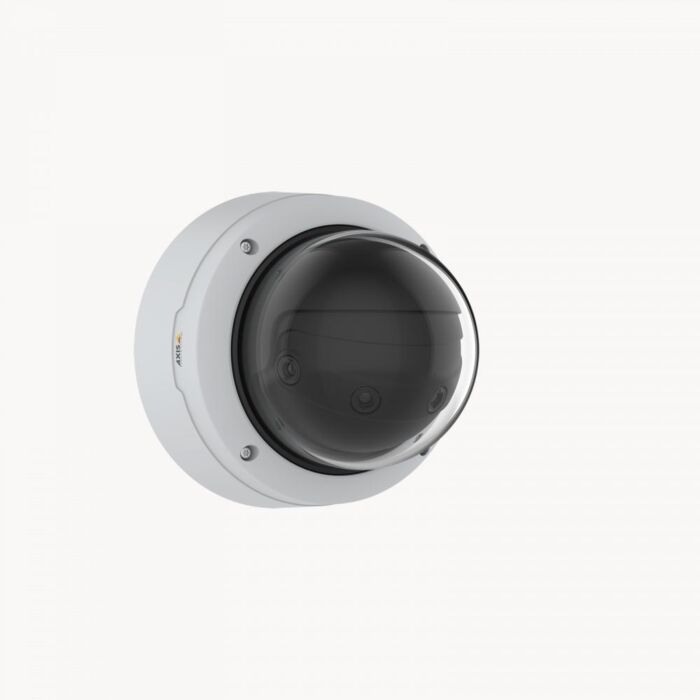

Axis Q3819-PVE Panoramic Camera
With 14 MP resolution, AXIS Q3819-PVE offers seamless stitching of all four images. It delivers a 180º panoramic overview of extensive areas with excellent image usability for quick and intuitive situational awareness.
SKU
01819-001 (Q3819-PVE)
AXIS Q3819-PVE is perfect when you need wide area coverage. With 14 MP resolution, this multisensor camera offers seamless stitching of all four images to deliver a seamless 180° panoramic overview of extensive areas and excellent image usability. You get 180° horizontal coverage and 38° vertical coverage. Additionally, it can be used with AXIS T94V01C Dual Camera Mount to mount two cameras back-to-back for a complete 360° overview. This multisensor camera offers smart pairing with Axis network speakers using edge-to-edge technology.
Features:
- 14 MP multisensor with seamless stitching
- 180° horizontal, 38° vertical coverage
- AXIS Object Analytics
- AXIS Edge Vault and TPM module
- Built-in motors for remote pan/tilt/roll
| Image Sensor | 1/2.5 CMOS |
| Sensor size in megapixel | 0.0 |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.16 lux |
| Min illumination/ light sensitivity (B/W) | 0.06 lux |
| Max video resolution | 8192 x 1728 |
| Max frames per second | 30 |
| Day and Night functionality | Yes |
| Electronic image stabilization | - |
| Focal length | 5.89 mm |
| Horizontal field of view | 180° |
| Vertical field of view | 38° |
| Remote PTRZ | - |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Audio Support | Yes |
| Built-in Microphone | - |
| PoE Class | 4 |
| Wireless | - |
| Signed Firmware | Yes |
| Secure Boot | Yes |
| Remote focus | - |
| Remote zoom | - |
| Built-in IR | - |
| Local Storage (memory card slot) | Yes |
| Operating Temperature | -40 to 50°C |
| Outdoor Ready | Yes |
| Vandal Rating | IK10 |
| IP Rating | IP66/67 |
| Designed for repaint | Yes |
| Sustainability | PVC Free |
