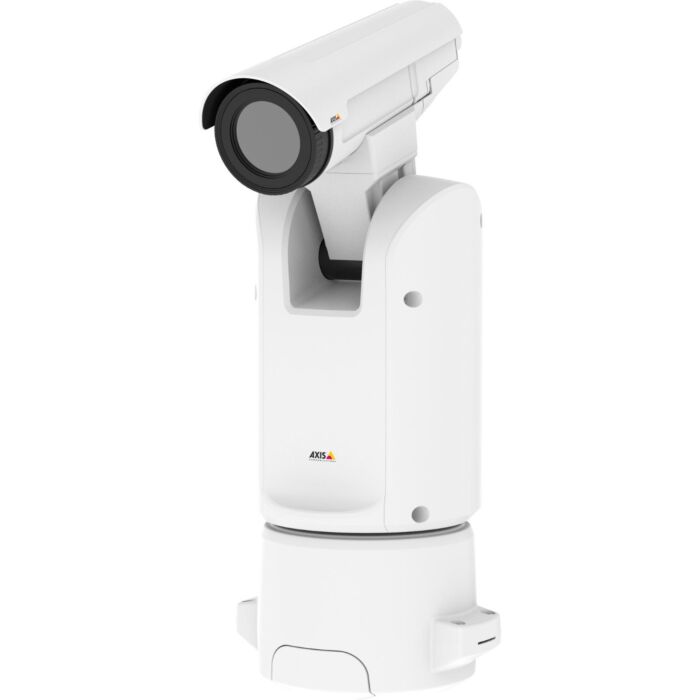

Axis Q8642-E PT Thermal Network Camera
Axis Q8642-E PT Thermal Network Camera: Unmatched Performance for Industrial Security
In the realm of industrial security cameras, the Axis Q8642E PT Thermal Network Camera stands out as a pinnacle of performance. Designed for expansive outdoor areas, this camera offers unobstructed views and long-distance VGA detection, ensuring reliable thermal detection in diverse environments. Its 640x480 thermal resolution delivers outstanding thermal contrast, while the quick and smooth pan and tilt capabilities allow responsive positioning.
Equipped with video analytics prowess, the Axis Q8642-E integrates seamlessly with a wide array of applications, enabling a swift and appropriate response to detected events. The powerful processor analyzes events, dismisses non-threatening ones, and notifies security staff of potential critical situations. The camera's versatility extends to its operational speed, offering operators the choice between slow and super-fast pan and tilt movements for smooth panoramic viewing.
The slim design and accessory options make installation fast and easy, and with an SFP slot supporting fiber-optic connection, it ensures cost-effective, long-distance connectivity. Whether for wide-area coverage, outdoor surveillance, or machine vision applications, the Axis Q8642-E excels, providing accurate and detailed video even in challenging conditions. This camera is the go-to solution for industrial settings demanding top-tier security and surveillance capabilities.
Features:
- VGA 640x480 Thermal Resolution
- Responsive Pan and Tilt Movement
- Video Analytics Integration
- Electronic Image Stabilization
- Zipstream Technology for Bandwidth Savings
Applications:
- Outdoor Surveillance
- Long-Distance Detection
- Machine Vision in Industrial Settings
| Models | Axis Q8642-E 60 mm 30 fps 24 V Axis Q8642-E 60 mm 8.3 fps 24 V |
| Image Sensor | Uncooled Micro bolometer 640x480, pixel size: 17µm Spectral range: 8-14μm |
| Lens | Athermalized Horizontal field of view: 10° view, F1.25 |
| Sensitivity | NETD < 50mK |
| Pan/Tilt | Pan: 360° endless, 0.05°–120°/s Tilt: –90 to +45°, 0.05° –60°/s. Jerk-free movements at low speed: σ <0.01°/s (at 0.05°/s) De-icing control Preset accuracy: 0.05° 256 preset positions, guard tour, control queue, on-screen directional indicator, de-icing control,dynamic load balancing |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) H.264 Baseline and Main Profile, Motion JPEG |
| Resolutions | Sensor is 640x480. Image can be scaled up to 800 x 600 |
| Frame Rate | Up to 8.3 fps and 30 fps |
| Video Streaming | Atl east three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/ABR/MBRH.264 |
| Image Settings | Compression, brightness, sharpness, contrast, exposure zone, text and image overlay, mirroring of images, electronic image stabilization, multiple palettes |
| Security | Password protection, IP address filtering, HTTPS encryption, network fail-over link, IEEE802.1x(EAP-TLS) network access control,digest authentication,user access log, centralized certificate management,brute force delay protection, signed firmware |
| Supported Protocols | IPv4, IPv6USGv6, HTTP, HTTPSc, SSL/TLSc, QoSLayer3DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTCIP, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G and ONVIF® ProfileS, specification |
| Event Triggers | Detectors: live stream accessed, video motion detection,shock detection Hardware: network, temperature Input signal: digital input,manual trigger,virtual inputs PTZ: moving,preset reached, ready Storage: disruption, recording System: system ready Time: recurrence,use schedule |
| Event Actions | Video recording to edge storage, pre- and post- alarm video buffering, external output activation, send SNMP trap, overlay text PTZ control: preset position,guard tour File upload: FTP, HTTP, HTTPS, SFTP, network share,email Notification: HTTP, HTTPS, TCP, email |
| Built-in Installation Aids | Pixel counter |
| Data Streaming | Event Data |
| Applications | Included AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, shock detection Supported AXIS Perimeter Defender Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Casing | IP66– and NEMA 4X-rated powder coated aluminum Color: white NCSS1002–B Front window: germanium Sunshield: high-impact UV-stabilized thermoplastic |
| Sustainability | PVC Free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | 24 V AC/DC Typical 16W, max 182W Power loss recovery, TVS 2 kV surge protection I/O connector Output power 12 V DC,max load 50 mA |
| Connectors | SFP slot (SFP module not included) RJ4510BASE-T/100BASE-TX/1000BASE-T network connector Power connector I/O connector: 6-pin terminal block with 4configurable inputs/outputs |
| Storage | Support for micro SD/micro SDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain 64256 bit) Recording to network-attached storage (NAS) |
| Operating Conditions | -40° C to 60° C (–40° F to 140° F) Humidity 10–100% RH (condensing) Wind load when PT operational 47m/s (106mph) Maximum effective projected area (EPA): 0.105m2 |
| Storage Conditions | -40°C to 65°C (-40°F to 149°F) |
| Approvals | EMC EN55032 Class A, EN55024, EN61000-6-1, EN61000-6-2, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B Class A, VCCI Class AITE, ICES-003 Class A, RCM AS/NZS CISPR 32 Clas sA, EN50121-4, IEC62236-4 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 Environment IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068–2–1, IEC 60068–2–2, IEC 60068–2–6, IEC 60068–2–27 Network NIST SP500-267 |
| Dimensions | 557 x 229 x 289 mm (22 x 9 x 11 in) |
| Weight | 12.2 kg (27 lb) |
| Included Accessories | Installation guide,Windows® decoder 1-user license Power connector, I/O connector, Torx® bits T20 and T30 |
| Optional Accessories | AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Cable 24 V DC/24-240 V AC 22 mf, AXIS T8611 SFP Module LC. LX, AXIS T8612 SFP Module LC. SX, AXIS T8613 SFPModule 1000BASE-T |
| Video Management Software | AXIS Companion, AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | 5–year warranty |
