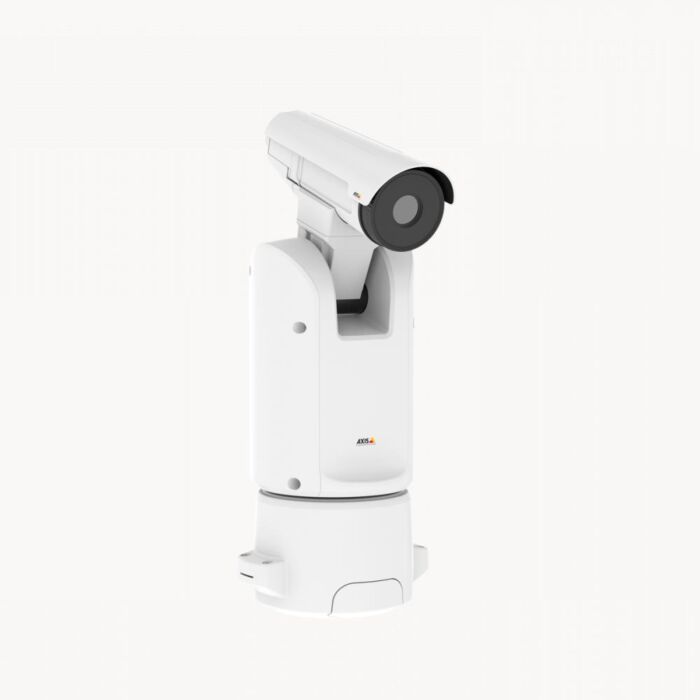

Axis Q8641-E PT Thermal Network Camera
Transform your industrial security with Axis Q8641-E. Unmatched thermal detection, video analytics, and responsive positioning for comprehensive surveillance. Elevate your security standards today!
SKU
Q8641-E
Enhanced Industrial Surveillance with Axis Q8641-E PT Thermal Network Camera
Experience cutting-edge industrial security with the Axis Q8641-E PT Thermal Network Camera. This powerhouse offers unobstructed views and long-distance detection, ensuring comprehensive coverage of expansive outdoor areas. The camera's outstanding thermal contrast and responsive positioning, with quick, smooth pan and tilt capabilities, set a new standard in surveillance.
The video analytics capabilities make Axis Q8641-E a true industry leader. Its powerful processor integrates a wide selection of video analytics solutions, allowing for swift and appropriate responses to detected events. The camera's slim design and versatile accessories make installation easy, while the SFP slot supports cost-effective, long-distance fiber-optic connections.
The Axis Q8641-E features 384x288 thermal resolution, providing wide-area coverage with excellent detail. Electronic image stabilization ensures smooth and steady video, even in vibrating conditions. Save bandwidth with Zipstream technology, and enjoy the flexibility of choosing between slow or super-fast pan and tilt movements. This camera is designed for outdoor use, with high wind resistance and optional accessories like a 22-meter heavy-duty power cable. Elevate your industrial surveillance with Axis Q8641-E.
Features:
- Unobstructed views and long-distance detection
- Video analytics powerhouse with a powerful processor
- Responsive positioning with quick, smooth pan and tilt
- Outstanding thermal contrast and 384x288 thermal resolution
- Electronic image stabilization for smooth video
- Zipstream technology for bandwidth savings
- Slim design and versatile installation options
- Fiber-optic connection support for long-distance connectivity
Applications:
- Industrial Security and Surveillance
- Machine Vision in Manufacturing
- Outdoor Area Monitoring
- Critical Event Response
- Comprehensive Video Analytics Integration
- Unmatched Thermal Detection in Expansive Areas
| Models | Axis Q8641-E 35 mm 30 fps 24 V Axis Q8641-E 35 mm 8.3 fps 24 V |
| Image Sensor | Uncooled Micro bolometer 384x288, pixel size: 17µm Spectral range: 8-14μm |
| Lens | Athermalized Horizontal field of view: 10.7° view, F1.2 |
| Sensitivity | NETD < 70mK |
| Pan/Tilt | Pan: 360° endless, 0.05°–120°/s Tilt: –90 to +45°, 0.05° –60°/s. Jerk-free movements at low speed: σ <0.01°/s (at 0.05°/s) De-icing control Preset accuracy: 0.05° 256 preset positions, guard tour, control queue, on-screen directional indicator, de-icing control,dynamic load balancing |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) H.264 Baseline and Main Profile, Motion JPEG |
| Resolutions | Sensor is 384x288. Image can be scaled up to 768 x 576 |
| Frame Rate | Up to 8.3 fps and 30 fps |
| Video Streaming | Atl east three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/ABR/MBRH.264 |
| Image Settings | Compression, brightness, sharpness, contrast, exposure zone, text and image overlay, mirroring of images, electronic image stabilization, multiple palettes |
| Security | Password protection, IP address filtering, HTTPS encryption, network fail-over link, IEEE802.1x(EAP-TLS) network access control,digest authentication,user access log, centralized certificate management,brute force delay protection, signed firmware |
| Supported Protocols | IPv4, IPv6USGv6, HTTP, HTTPSc, SSL/TLSc, QoSLayer3DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTCIP, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G and ONVIF® ProfileS, specification |
| Event Triggers | Detectors: live stream accessed, video motion detection,shock detection Hardware: network, temperature Input signal: digital input,manual trigger,virtual inputs PTZ: moving,preset reached, ready Storage: disruption, recording System: system ready Time: recurrence,use schedule |
| Event Actions | Video recording to edge storage, pre- and post- alarm video buffering, external output activation, send SNMP trap, overlay text PTZ control: preset position,guard tour File upload: FTP, HTTP, HTTPS, SFTP, network share,email Notification: HTTP, HTTPS, TCP, email |
| Built-in Installation Aids | Pixel counter |
| Data Streaming | Event Data |
| Applications | Included AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, shock detection Supported AXIS Perimeter Defender Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Casing | IP66– and NEMA 4X-rated powder coated aluminum Color: white NCSS1002–B Front window: germanium Sunshield: high-impact UV-stabilized thermoplastic |
| Sustainability | PVC Free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | 24 V AC/DC Typical 16W, max 182W Power loss recovery, TVS 2 kV surge protection I/O connector Output power 12 V DC,max load 50 mA |
| Connectors | SFP slot (SFP module not included) RJ4510BASE-T/100BASE-TX/1000BASE-T network connector Power connector I/O connector: 6-pin terminal block with 4configurable inputs/outputs |
| Storage | Support for micro SD/micro SDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain 64256 bit) Recording to network-attached storage (NAS) |
| Operating Conditions | -40° C to 60° C (–40° F to 140° F) Humidity 10–100% RH (condensing) Wind load when PT operational 47m/s (106mph) Maximum effective projected area (EPA): 0.105m2 |
| Storage Conditions | -40°C to 65°C (-40°F to 149°F) |
| Approvals | EMC EN55032 Class A, EN55024, EN61000-6-1, EN61000-6-2, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B Class A, VCCI Class AITE, ICES-003 Class A, RCM AS/NZS CISPR 32 Clas sA, EN50121-4, IEC62236-4 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 Environment IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068–2–1, IEC 60068–2–2, IEC 60068–2–6, IEC 60068–2–27 Network NIST SP500-267 |
| Dimensions | 557 x 229 x 289 mm (22 x 9 x 11 in) |
| Weight | 12 kg (26.5 lb) |
| Included Accessories | Installation guide,Windows® decoder 1-user license Power connector, I/O connector, Torx® bits T20 and T30 |
| Optional Accessories | AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Cable 24 V DC/24-240 V AC 22 mf, AXIS T8611 SFP Module LC. LX, AXIS T8612 SFP Module LC. SX, AXIS T8613 SFPModule 1000BASE-T |
| Video Management Software | AXIS Companion, AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | 5–year warranty |
