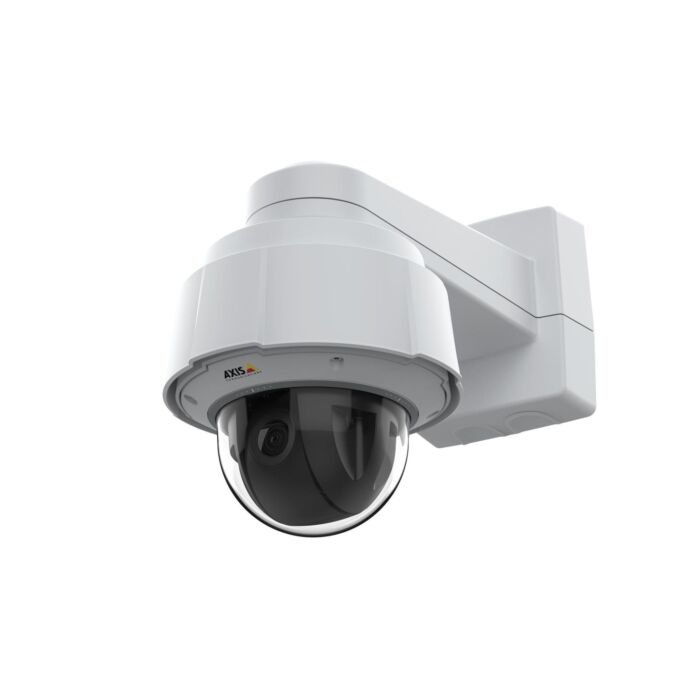

AXIS Q6078-E PTZ Camera

AXIS Q6078-E: Unmatched UHD 4K surveillance with 20x zoom, Zipstream, and advanced cybersecurity. Elevate industrial security and ensure superior video quality.

Unrivaled UHD 4K Surveillance with AXIS Q6078-E PTZ Camera

Discover unparalleled surveillance capabilities with the AXIS Q6078-E PTZ camera, designed for demanding industrial applications. Boasting UHD 4K resolution and 20x optical zoom, this robust outdoor camera ensures exceptional video quality in wide, open areas like cities, airports, and critical infrastructure sites.

Powered by a cutting-edge Axis chipset, the camera delivers impressive overviews and superior detail, allowing users to zoom in for clear, sharp views. Utilizing Zipstream technology with H.264/H.265 support, it maintains crucial forensic details while minimizing bandwidth and storage requirements.

Ideal for diverse environments, the vandal-resistant AXIS Q6078-E is IP66, NEMA 4X, and IK10-rated, offering protection against dust, rain, snow, and impacts. Its Arctic temperature control enables operation in extreme conditions, from -40 °C to 50 °C (-40 °F to 122 °F).

The camera features Autotracking 2 for active object tracking, privacy masking with mosaic for discreet surveillance, and AXIS Object Analytics to detect and classify humans and vehicles, tailored to specific needs. With built-in cybersecurity features, including signed firmware, secure boot, and a Trusted Platform Module (TPM), AXIS Q6078-E prioritizes the security of your surveillance system.


  • UHD 4K resolution with 20x optical zoom
  • Zipstream technology for efficient data management
  • H.264/H.265 support for optimal video compression
  • Vandal-resistant design (IP66, NEMA 4X, IK10)
  • Arctic temperature control for extreme conditions
  • Autotracking 2 for active object tracking
  • Privacy masking with mosaic for discreet surveillance
  • AXIS Object Analytics for human and vehicle detection
  • Built-in cybersecurity features: signed firmware, secure boot, TPM


  • Wide-area surveillance in cities and airports
  • Critical infrastructure protection
  • Industrial surveillance and machine vision applications
  • Discreet surveillance in sensitive areas
  • Active object tracking in dynamic environments


AXIS Q6078-E 50 Hz
AXIS Q6078-E 60 Hz

Image Sensor

1/2.5” progressive scan RGB CMOS


4.4–88.4 mm, F2.0-3.8
Horizontal field of view: 68.3°-4.2°
Vertical field of view: 42.1°-2.34°
Autofocus, P-iris control

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

Color: 0.2 lux at 30 IRE, F2.0
B/W: 0.002 lux at 30 IRE, F2.0

Shutter Time

1/10000 s to 1 s


Pan: 360° endless, 0.05°–450°/s
Tilt: 220°, 0.05°–450°/s
Zoom: 20x optical, 12x digital, total 240x zoom
E-flip, 256 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, orientation aid PTZ, set new pan 0°, adjustable zoom speed, focus recall




2 GB RAM, 512 MB Flash

Compute Capabilities

Machine learning processing unit (MLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG


3840x2160 4K 2160p to 320x180

Frame Rate

Up to 25/30 fps (50/60 Hz) in 4K
Up to 50/60 fps (50/60 Hz) in all other resolutions

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265

Image Settings

Manual shutter time, compression, color, brightness, sharpness, WDR – dynamic contrast, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, polygon privacy masks, electronic image stabilization (EIS), freeze on PTZ, defog, backlight compensation, scene profiles


IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS)a network access control, user access log, centralized certificate management

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T

Event Conditions

Device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature Edge storage: recording ongoing, storage disruption
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position
reached, PTZ ready
Scheduled and recurring: scheduled event Video: live stream open

Event Actions

Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap
PTZ: PTZ preset, start/stop guard tour
File upload via FTP, SFTP, HTTP, HTTPS network share and email MQTT publish
Notification via email, HTTP, HTTPS and TCP

Built-in Installation Aids

Pixel Counter, leveling guide

AXIS Object Analytics

Object classes: humans, vehicles
Scenarios: line crossing, object in area, time in area
Up to 10 scenarios
Metadata visualized with trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event


Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Confidence, position
Event data: Producer reference, scenarios, trigger conditions


AXIS Object Analytics, AXIS Video Motion Detection,
AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, autotracking 2, active gatekeeper, AXIS OSDI Zones, Orientation Aid PTZ
Support for AXIS Camera Application Platform enabling installation of third-party applications


IP66-, IP67-, NEMA 4X- and IK10-rated
Metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (ASA)


PVC Free


Axis High PoE 60 W SFP midspan: 100–240 V AC, max 66.1 W Camera consumption: typical 16 W, max 51 W


RJ45 10BASE-T/100BASE-TX PoE, RJ45 Push-pull Connector (IP66/IP67) included


Support for SD/SDHC/SDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Support for recording to network-attached storage (NAS)

Operating Conditions

With 30 W: -20 °C to 50 °C (-4 °F to 122 °F)
With 60 W: -50 °C to 50 °C (-58 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F)
Arctic Temperature Control: Start-up as low as -40 °C (-40 °F) Humidity 10–100% RH (condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)


EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 50121-4, IEC 62236-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KCC KN32 Class A, KN35
USA: FCC Part 15 Subpart B Class A
IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368–1, IS 13252
IEC/EN 60529 IP66/IP67, NEMA TS 2 (2.2.7-2.2.9),
IEC 62262 IK10, ISO 4892-2, EN 50121-4, IEC 62236-4,
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-60, IEC 60068-2-78,
NEMA 250 Type 4X
NIST SP500-267
ETSI EN 303 645
EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform
TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot

Network Security

IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR,
HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall


Ø232 x 271 mm (Ø9 1/8 x 10.7 in)


3.75 kg (8.3 lb)

Included Accessories

Axis High PoE 60 W SFP midspan 1-port, RJ45 Push-pull Connector (IP66), Sunshield
Installation Guide, Windows decoder 1-user license

Optional Accessories

Smoked dome cover
AXIS T91 Mounting Accessories, AXIS T8415 Wireless Installation Tool, AXIS T90 Illuminators, AXIS T8310 Video Surveillance Control Board, multi-user decoder license pack

Video Management Software

AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners available


English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese


Axis 3–year warranty and AXIS Extended Warranty

(Size: 893.4 KB)
