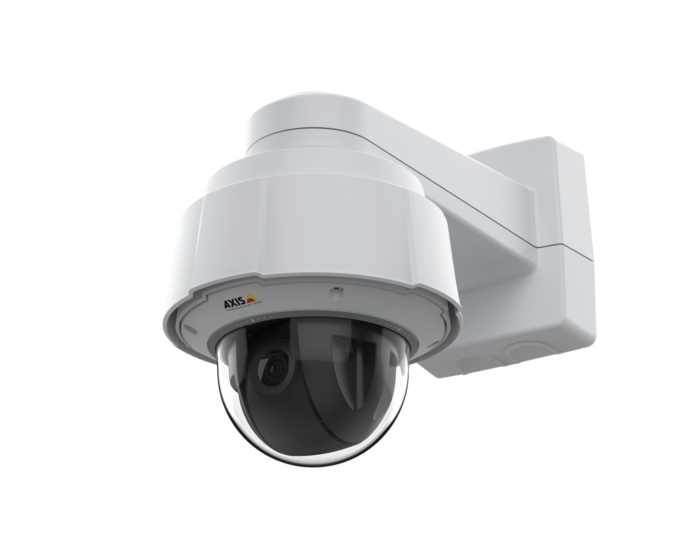

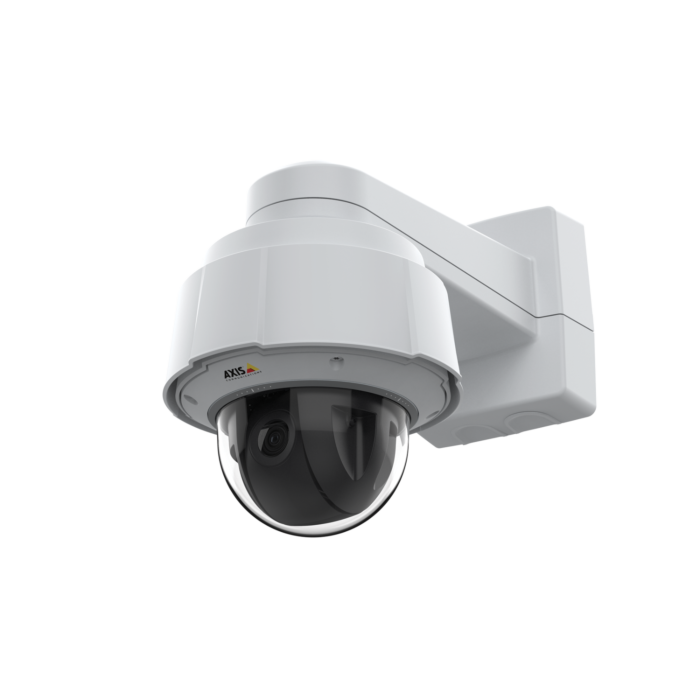

Axis Q6078-E PTZ Outdoor-ready PTZ with UHD 4K Camera
UHD 4K with 20x optical zoom
SKU
Axis Q6078-E PTZ Outdoor-ready PTZ with UHD 4K Camera
This robust, high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It’s ideal for demanding situations in wide, outdoor areas such as cities, airports, and critical infrastructure applications.
Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements.
Features:
- 14 MP multisensor with seamless stitching
- 180° horizontal, 38° vertical coverage
- AXIS Object Analytics
- AXIS Edge Vault and TPM module
- Built-in motors for remote pan/tilt/roll
| Image Sensor | CMOS |
| Image Sensor Size | 1/2.5 |
| Lightfinder | - |
| Wide Dynamic Range | WDR |
| Min. Illumination/Light Sensitivity (Color) | 0.2 lux |
| Min. Illumination/Light Sensitivity (B/W) | 0.06 lux |
| Built-in IR | - |
| Optimized IR | - |
| Local Storage (Memory Card Slot) | Yes |
| Operating Temperature | -50 to 50 °C |
| Outdoor Ready | Yes |
| Vandal Rating | IK10 |
| IP Rating | IP66, IP67 |
| Designed For Repaint | Yes |
| Autotracking Version | Autotracking 2 |
| Orientation Aid | orientation aid PTZ |
| Max Video Resolution | 3840x2160 |
| Max Frames Per Second | 50/60 |
| Day and Night Functionality | Yes |
| Electronic Image Stabilization | Yes |
| Focal Length | 4.4 - 88.4 mm |
| Horizontal Field Of View | 68.3 - 4.20 ° |
| Vertical Field Of View | 42.1-2.34 ° |
| Pan Range | 360 endless |
| Tilt Range | 220 |
| Guard Tour | preset position tour |
| Optical Zoom | 20 |
| Digital Zoom | 12 |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Audio Support | - |
| Built-in Microphone | - |
| Audio Detection | - |
| Active Tampering | - |
| Alarm Inputs/Outputs | - |
| PoE Class | High PoE |
| Signed Firmware | Yes |
| Secure Boot | Yes |
| TPM | Yes |
