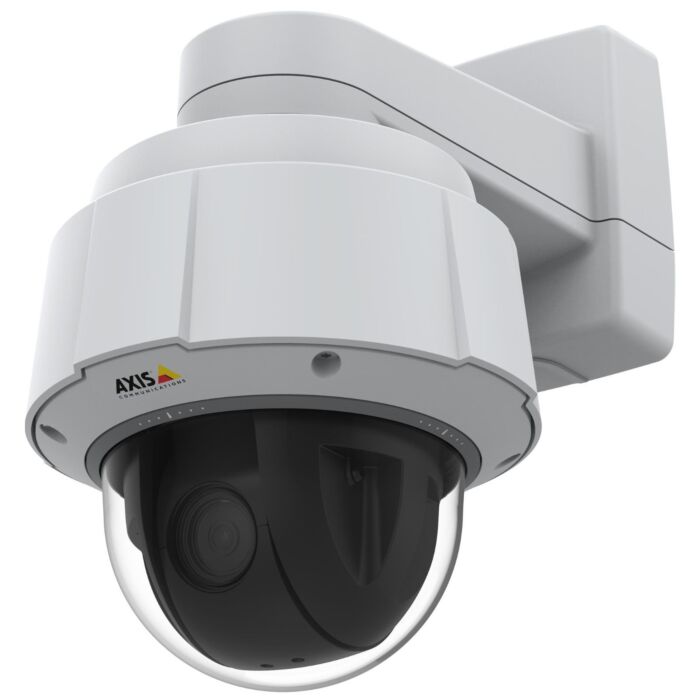

AXIS Q6075-E PTZ Network Camera
Unleashing Cutting-edge Surveillance: AXIS Q6075-E PTZ Network Camera
Elevate your surveillance capabilities with the AXIS Q6075-E, a robust outdoor PTZ camera designed for mission-critical applications. Boasting HDTV 1080p resolution and an impressive 40x optical zoom, this high-performance camera ensures superior video quality, even in challenging light conditions. The incorporation of Axis Lightfinder 2.0 enhances low-light image capture, delivering more saturated colors and sharper details of moving objects.
Equipped with Autotracking 2 and orientation aid, the camera actively tracks objects, providing quick orientation and ensuring optimal coverage. Its rugged design, featuring IP66/67, NEMA 4X, and IK10-ratings, withstands harsh weather conditions, making it ideal for industrial and critical infrastructure surveillance.
The AXIS Q6075-E goes beyond traditional surveillance with built-in analytics for motion detection, intrusion, and loitering. Privacy masking with mosaic ensures privacy in sensitive areas, pixelating neighboring properties. Security is paramount, with signed firmware, secure boot, and TPM FIPS 140-2 level 2 certification, guaranteeing unauthorized access prevention and malware-free operation.
In summary, the AXIS Q6075-E is your go-to solution for advanced outdoor surveillance, delivering unparalleled performance, security, and adaptability.
Features:
- HDTV 1080p resolution
- 40x optical zoom
- Axis Lightfinder 2.0 for low-light performance
- Autotracking 2 and orientation aid
- Built-in analytics for motion detection
- TPM, FIPS 140-2 level 2 certified
- Rugged design with IP66/67, NEMA 4X, and IK10-ratings
Applications:
- Industrial Surveillance
- Critical Infrastructure Monitoring
- Citywide Security
- Mission-Critical Installations
|
Image Sensor |
1/2.8” Progressive Scan CMOS |
|
Lens |
4.25-170 mm, F1.6-4.95 Horizontal field of view: 65.1°-2.00° (1080p) Vertical field of view: 39.1°-1.18° (1080p) Autofocus, auto-iris
|
|
Day and Night |
Automatically removable infrared-cut filter
|
|
Minimum Illumination |
Color: 0.1 lux at 30 IRE, F1.6 B/W: 0.002 lux at 30 IRE, F1.6 Color: 0.15 lux at 50 IRE, F1.6 B/W: 0.003 lux at 50 IRE, F1.6
|
|
Shutter Time |
1/11000 s to 1/3 s with 50 Hz 1/11000 s to 1/3 s with 60 Hz
|
|
Pan/Tilt/Zoom |
Pan: 360° endless, 0.05°–450°/s Tilt: 180°, 0.05°–450°/s Zoom: 40x optical, 12x digital, total 480x zoom E-flip, 256 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, orientation aid PTZ, set new pan 0°, adjustable zoom speed, focus recall |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
HDTV 1080p 1920x1080 to 320x180 |
|
Frame Rate |
Up to 50/60 fps (50/60 Hz) in HDTV 1080p |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
|
Image Settings |
Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, polygon privacy masks, image freeze on PTZ, automatic defog, backlight compensation, scene profiles Wide Dynamic Range (WDR): Up to 120 dB depending on scene, highlight compensation |
|
Audio Streaming |
Two-way: full duplex, half duplex, simplex |
|
Audio Compression |
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
Requires multicable (sold separately) for external microphone or line input, and line output |
|
Security |
Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module |
|
Supported Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T |
|
Analytics |
Included AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, autotracking 2, active gatekeeper, audio detection Basic analytics (not to be compared with third-party analytics): object removed, enter/exit detector, object counter Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
|
Event Triggers |
Audio: audio detection Device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature Edge storage: recording ongoing, storage disruption I/O: digital input, manual trigger, virtual input PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready Scheduled and recurring: scheduled event Video: live stream open |
|
Event Actions |
Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap PTZ: PTZ preset, start/stop guard tour File upload via FTP, SFTP, HTTP, HTTPS network share and email Notification via email, HTTP, HTTPS and TCP External output activation, audio recording to edge storage, play audio clip |
|
Data Streaming |
Event Data |
|
Built-in Installation Aids |
Pixel Counter, leveling guide |
|
Casing |
IP52-rated Metal casing (aluminum), Acrylic (PMMA) clear dome |
|
Sustainability |
PVC Free |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Power |
Axis High PoE 60 W SFP midspan: 100–240 V AC, max 66.1 W Camera consumption: typical 14 W, max 51 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE, multiconnector (cable sold separately) for AC/DC power, 4 configurable alarm inputs/outputs, mic in, line mono input, line mono output to active speaker |
|
Storage |
Support for SD/SDHC/SDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS |
|
Operating Conditions |
0 °C to 50 °C (32 °F to 122 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 Safety IEC/EN/UL 60950-1, IS 13252 IEC/EN 62368–1 Environment IEC/EN 60529 IP52, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 Network NIST SP500-267 Midspan EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR |
|
Dimensions |
Hard-ceiling: Ø198 x 240 mm (Ø7 13/16 x 9 7/16 in) Drop-ceiling: Ø248 x 243 mm (Ø9 3/4 x 9 9/16 in) |
|
Weight |
Camera: 2.85 kg (6.3 lb); with drop-ceiling mount: 3.5 kg (7.7 lb) |
|
Included Accessories |
Axis PoE+ midspan 1-port, Recessed mount for hard and drop ceilings, Smoked dome cover Installation Guide, Windows decoder 1-user license |
|
Optional Accessories |
AXIS P55/Q60 Multi-connector cable, 5 m AXIS T91 Mounting Accessories, AXIS T8415 Wireless Installation Tool, AXIS T90 Illuminators, AXIS T8310 Video Surveillance Control Board, multi-user decoder license pack |
|
Video Management Software |
AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners available |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
