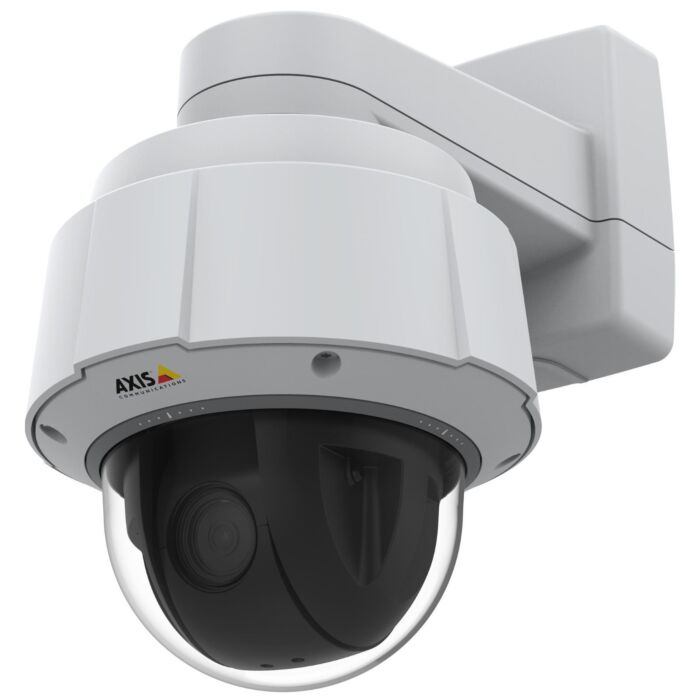

AXIS Q6074-E PTZ Network Camera
Elevating Surveillance Excellence: AXIS Q6074-E PTZ Network Camera Unleashed
In the realm of industrial security cameras, the AXIS Q6074-E PTZ Network Camera stands as a pinnacle of performance. Boasting HDTV 720p resolution and a powerful 30x optical zoom, it delivers exceptional clarity and detail even in challenging lighting scenarios, thanks to Axis Lightfinder 2.0. This outdoor-ready camera is designed for mission-critical surveillance in wide areas, encompassing cities, industrial zones, and critical infrastructure.
Equipped with Autotracking 2 and an orientation aid, it actively tracks objects with precision. The camera's built-in analytics, including intrusion detection and loitering, enhance its surveillance capabilities. With an IP66/67, NEMA 4X, and IK10-ratings, it withstands harsh environmental conditions, ensuring reliability. Privacy masking with mosaic allows selective pixelation for privacy in sensitive areas.
Security is paramount, and the AXIS Q6074-E prioritizes it. Signed firmware and secure boot fortify against unauthorized access, while the Trusted Platform Module (TPM), FIPS 140-2 level 2 certified, ensures secure key and certificate storage, even in the face of a security breach. This high-performance camera promises peace of mind, making it an indispensable asset in the realm of industrial and machine vision applications.
Features:
- HDTV 720p resolution
- 30x Optical Zoom
- Axis Lightfinder 2.0
- Autotracking 2 and orientation aid
- Built-in analytics for motion detection
- IP66/67, NEMA 4X, IK10-ratings for harsh environments
- Privacy masking with mosaic
- Signed firmware and secure boot
- FIPS 140-2 level 2 certified TPM
Applications:
- Mission-critical surveillance
- Wide-area monitoring in cities
- Industrial security and monitoring
- Critical infrastructure protection
- Traffic flow observation
- Machine vision applications
|
Models |
AXIS Q6074-E 50 Hz |
|
Image Sensor |
1/2.8” Progressive Scan CMOS |
|
Lens |
4.25–127.5 mm, F1.6–4.2
Horizontal field of view: 63.8°–2.6° (720p) Vertical field of view: 38.0°–1.47° (720p) Autofocus, auto-iris |
|
Day and Night |
Automatically removable infrared-cut filter
|
|
Minimum Illumination |
Color: 0.1 lux at 30 IRE, F1.6
B/W: 0.002 lux at 30 IRE, F1.6 Color: 0.15 lux at 50 IRE, F1.6 B/W: 0.003 lux at 50 IRE, F1.6 |
|
Shutter Time |
1/11000 s to 1/3 s with 50 Hz 1/11000 s to 1/3 s with 60 Hz
|
|
Pan/Tilt/Zoom |
Pan: 360° endless, 0.05°–450°/s |
|
Model |
ARTPEC-7 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Machine learning processing unit (MLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
|
Resolutions |
HDTV 720p 1280x720 to 320x180 |
|
Frame Rate |
Up to 50/60 fps (50/60 Hz) in HDTV 720p |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
|
Image Settings |
Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, polygon privacy masks, image freeze on PTZ, automatic defog, backlight compensation, scene profiles Wide Dynamic Range (WDR): Up to 120 dB depending on scene, highlight compensation |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T |
|
Event Conditions |
Device status: above operating temperature, above or below |
|
Event Actions |
Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap |
|
Built-in Installation Aids |
Pixel Counter, leveling guide |
|
Casing |
IP66-, IP67-, NEMA 4X- and IK10-rated |
|
Sustainability |
PVC Free |
|
Power |
IP66-, IP67-, NEMA 4X- and IK10-rated |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE, RJ45 Push-pull Connector (IP66/IP67) included |
|
Storage |
Support for SD/SDHC/SDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS |
|
Operating Conditions |
With 30 W: -20 °C to 50 °C (-4 °F to 122 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 50121-4, IEC 62236-4 Safety IEC/EN/UL 60950-1, IS 13252 Environment IEC/EN 60529 IP66/IP67, NEMA TS 2 (2.2.7-2.2.9), Network NIST SP500-267 Midspan EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR |
|
Dimensions |
Ø232 x 271 mm (Ø9.13 x 10.7 in) |
|
Weight |
3.75 kg (8.3 lb) |
|
Included Accessories |
Axis High PoE 60 W SFP midspan 1-port, RJ45 Push-pull Connector (IP66), Sunshield |
|
Optional Accessories |
Smoked dome cover |
|
Video Management Software |
AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners available |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
