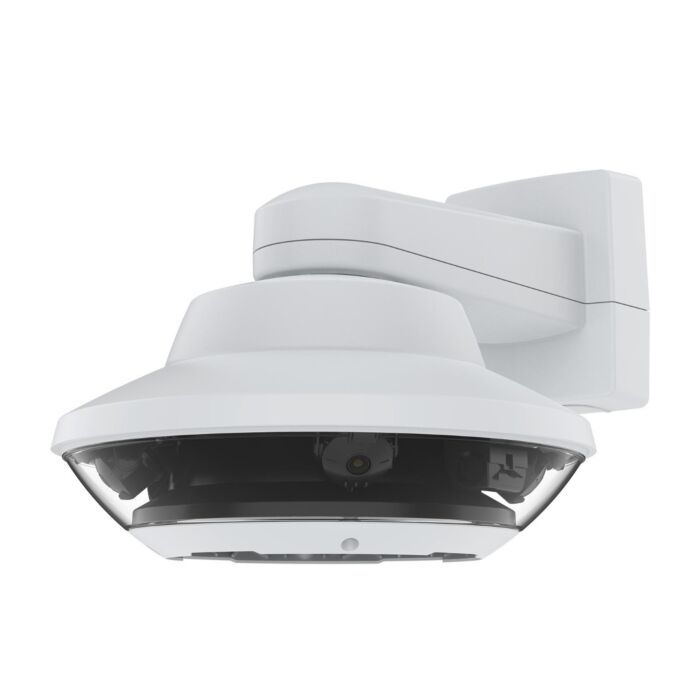

AXIS Q6010-E Network Camera
Discover the AXIS Q6010-E Network Camera – your gateway to total situational awareness. With one-click PTZ control, 20 MP resolution, and seamless integration with AXIS Q60-E series, it's the perfect solution for industrial surveillance. Elevate your monitoring capabilities today.
SKU
Q6010-E
Total Situational Awareness with AXIS Q6010-E Network Camera
In the realm of industrial surveillance and machine vision, the AXIS Q6010-E Network Camera stands out as a powerful and versatile solution. Designed to complement the AXIS Q60-E PTZ Network Camera, this multidirectional device boasts four 5 MP sensors, delivering an impressive total resolution of 20 MP day and night. The camera's exchangeable lenses and corridor format provide flexibility, ensuring optimal coverage in various scenarios, from city crossings to expansive squares.
The standout feature is the seamless integration with AXIS Q60-E, allowing for one-click PTZ control and autopilot tracking. This means users can effortlessly transition from a comprehensive 360° overview to zoomed-in, detailed views with just a mouse click. The camera's advanced technology includes Axis Zipstream with support for H.264/H.265, reducing bandwidth and storage requirements without compromising image quality.
Ease of setup is another advantage, as AXIS Q6010-E utilizes the same bracket, power supply, and network cable as the connected AXIS Q60-E PTZ Network Camera, eliminating the need for additional equipment. With autofocus and positioning calibration, users experience maximum flexibility and precise configuration. In industrial and machine vision applications, this camera promises unparalleled situational awareness and detailed monitoring, making it an indispensable asset for security professionals and businesses alike.
Features:
- 360° Overview
- One-Click PTZ Control
- Autopilot Tracking
- 20 MP Resolution
- Exchangeable Lenses
- AXIS Q60-E Compatibility
- Axis Zipstream (H.264/H.265)
- Autofocus
- Positioning Calibration
Applications:
- Active City Surveillance
- Street Crossings
- Public Squares
- Industrial Surveillance
- Machine Vision Monitoring
- Comprehensive Area Coverage
- Detailed Monitoring in Alleys
- Long Street Surveillance
| Models | AXIS Q6010-E 50 Hz AXIS Q6010-E 60 Hz |
| Supported products | AXIS Q6052-E PTZ Network Camera AXIS Q6054-E PTZ Network Camera AXIS Q6054-E Mk II PTZ Network Camera AXIS Q6054-E Mk III PTZ Network Camera AXIS Q6055-E PTZ Network Camera AXIS Q6074-E PTZ Network Camera AXIS Q6075-E PTZ Network Camera AXIS Q6078-E PTZ Camera |
| Image Sensor | 4 x 5 MP progressive scan RGB CMOS 1/2.5” |
| Lens | Autofocus lenses, Fixed iris, F2.0, Focal length: 2.8 mm Horizontal field of view: 360° Vertical field of view: 84° |
| Day and night | Automatically removable infrared-cut filter |
| Minimum Illumination |
Color: 0.4 lux at 50 IRE, F2.0
B/W: 0.03 lux at 50 IRE, F2.0 |
| Shutter Speed |
1/32500 to 1/20 s
|
| Camera Angle Adjustment |
Pan, tilt and rotate
|
| Pan/Tilt/Zoom |
One-click PTZ control
|
| Model |
S5
|
| Memory |
2048 MB RAM, 512 MB Flash
|
| Video Compression | H.264 (MPEG-4 Part 10/AVC), Main and High Profiles H.265 (MPEG-H Part 2/HEVC), Main Profile |
| Resolutions | 4 x 2592x1944 to 320x240 Default: 2592x1944 |
| Frame Rate | Up to 20 fps (50/60 Hz) in all resolutions |
| Video Streaming | Multiple, individually configurable streams in H.264 and H.265 Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth ABR/MBR H.264/H.265 |
| Image Settings | Resolution, compression, saturation, brightness, sharpness, contrast, white balance, exposure level, exposure mode, shutter & gain fine tuning of behavior at normal and low light, polygon privacy masks (maximum 8 per channel), WDR, dynamic text and image overlay |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDKand Computer Vision SDK. One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, |
| Analytics | Included AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard Autopilot, AXIS Video Motion Detection, active tampering alarm, edge storage events Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Event Conditions | Analytics, edge storage events, virtual inputs through API Device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, storage failure, system ready, within operating temperature Edge storage: recording ongoing, storage disruption I/O: manual trigger, virtual input MQTT subscribe PTZ: PTZ ready Scheduled and recurring: scheduled event Video: day-night mode, live stream open, tampering |
| Event Actions | Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset Overlay text, day/night mode, Status LED, WDR mode MQTT publish |
| Data Streaming | Event Data |
| Built-in installation aids | Installation focus, lens selection, positioning calibration, ptz remote connection. |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area Up to 10 scenarios Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Metadata | Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates Attributes: Vehicle color, upper/lower clothing color, confidence, position Event data: Producer reference, scenarios, trigger conditions |
| Applications | Included AXIS Object Analytics AXIS Video Motion Detection Audio detection, active gatekeeper Autotracker 2 Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Casing | IP66-, NEMA 4X- and IK10-rated Polycarbonate dome Aluminum casing |
| Sustainability | PVC free |
| Power | AXIS Q6010-E with Solo Kit, without a PTZ Camera: Power consumption: typical 9 W, max 22 W External power input 24 V DC: typical 8.0 W, max 74.4 W AXIS Midspan 30 W 1-port: 100-240 V AC, max 30 W AXIS Q6010-E with AXIS Q60-E PTZ Network Cameras: AXIS High PoE Midspan 1-port 100-240 V AC, max 60 W recommended |
| Connectors | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE RJ45 10BASE-T/100BASE-TX/1000BASE-T Q60-E port M8 3-pin AC/DC input |
| Storage | Support for SD/SDHC/SDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Operating Conditions | - 50 °C to 50 °C (–58 °F to 122 °F) with AXIS Camera Heater Kit - 40 °C to 50 °C (–40 °F to 122 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C (–40 °F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
| Approvals | EMC EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35 Safety IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Network NIST SP500-267 |
| Edge Security | Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection Hardware: encrypted file system (AES-XTS-Plain64 256bit) |
| Network Security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2, IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Dimensions | ø 395 mm (15.6 in) Height: 201 mm (7.9 in) |
| Weight | 4.5 kg (9.1 lb)) excluding an AXIS Q60-E PTZ Network Camera |
| Included Accessories | Q60-E adapter, Bayonet screws, Installation guide, Windows® decoder 1-user license |
| Optional Accessories | AXIS Lens M12 6 mm 5P (horizontal field of view: 56°, vertical field of view: 42°), AXIS Lens M12 12 mm 5P (horizontal field of view: 31°, vertical field of view: 23°), AXIS Lens M12 16 mm 5P (horizontal field of view: 20°, vertical field of view: 15°), AXIS Q6010-E Solo kit, AXIS T91 Mounting accessories, Axis Midspan 60 W 1–port, AXIS Camera Heater Power Supply |
| Video Management | AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Warranty | 5 year |
