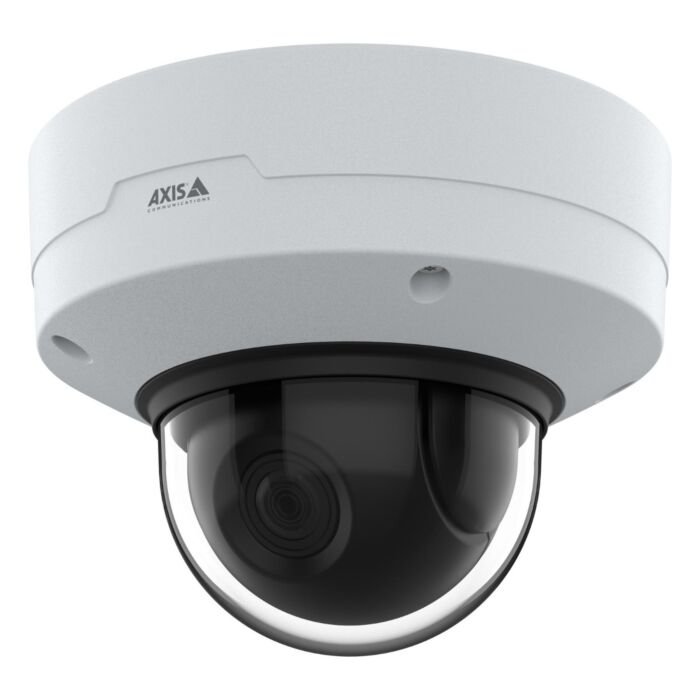

AXIS Q3628-VE Dome Camera
Revolutionize Industrial Surveillance with AXIS Q3628-VE Dome Camera
Elevate your industrial surveillance with the AXIS Q3628-VE Dome Camera, a cutting-edge solution from Aegis Electronic Group. Boasting an advanced 8 MP resolution, this camera ensures outstanding image quality and forensic details even in low light conditions, thanks to Lightfinder 2.0 and Forensic WDR technologies. The remote pan-tilt-roll-zoom (PTRZ) functionality enables effortless adjustment and realignment of the camera view over the network, ensuring flexibility and responsiveness to changing requirements without onsite technician dispatch.
Equipped with deep learning analytics on the edge, this camera allows for advanced object detection and classification. Its robust design, IK10-rating, and vandal-resistant features make it ideal for tough industrial environments and rough weather conditions. Electronic image stabilization ensures smooth video output in situations with vibrations, while cybersecurity features, including Axis Edge Vault with FIPS 140-2 level 2 certification, safeguard against unauthorized access.
Applications for this camera span a wide range of industrial and machine vision scenarios, including perimeter security, manufacturing process monitoring, and critical infrastructure protection. The AXIS Q3628-VE is not just a camera; it's a comprehensive solution for reliable and advanced industrial surveillance.
Features:
- Remote PTRZ for quick and easy adjustment
- Outstanding 8 MP resolution with Lightfinder 2.0 and Forensic WDR
- Deep learning analytics for advanced object detection
- Robust, IK10-rated, vandal-resistant design
- Electronic image stabilization for smooth video output
- Axis Edge Vault for cybersecurity with FIPS 140-2 level 2 certification
Applications:
- Perimeter Security
- Manufacturing Process Monitoring
- Critical Infrastructure Protection
- Industrial Surveillance
- Machine Vision Systems
|
Image Sensor |
1/1.2” progressive scan RGB CMOS Pixel size 2.9 µm |
|
Lens |
Varifocal, 6.2–12.9 mm, F1.6–2.9 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.07 lux at 50 IRE, F1.5 |
|
Shutter Time |
1/66500 s to 2 s with 60 Hz |
|
Camera Angle Adjustment |
Pan ±190°, tilt -8 to +75°, roll ±97° |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8192 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
16:9: 3840x2160 to 160x90 |
|
Frame Rate |
With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Up to 20 unique and configurable video streams |
|
Signal-to-noise ratio |
>55 dB |
|
WDR |
Forensic WDR: Up to 120 dB depending on scene |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Noise Reduction |
Spatial filter (2D noise reduction) |
|
Image Settings |
Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, polygon privacy mask,target aperture |
|
Image Processing |
Axis Zipstream, Forensic WDR, Lightfinder 2.0 |
|
Pan/Tilt/Zoom |
Digital PTZ with preset positions PTRZ preset positions |
|
Audio Features |
AGC automatic gain control |
|
Audio Streaming |
Configurable duplex: |
|
Audio Input/Output |
10-band graphic equalizer Output via network speaker pairing |
|
Audio Encoding |
24bit LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Version SDK. |
|
Video Management Systems |
Compatible with AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development |
|
Onscreen Controls |
Autofocus |
|
Event Conditions |
Audio: audio detection |
|
Event Actions |
Audio clips: play, stop |
|
Built-in installation aids |
Pan-tilt-roll: designed to withstand at least 500 full movement cycles, autoroll, pixel counter, remote zoom and focus, level grid |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included AXIS Object Analytics, AXIS Video Motion Detection, active tampering alarm, audio detection |
|
Casing |
IP66-, NEMA 4X- and IK10-rated |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon) ¾” (M25) conduit side entry |
|
Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 8 W, max 25 W |
|
Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE I/O: 4-pin 2.5 mm terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max load 50 mA) Audio: 3.5 mm mic/line in |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
-50 °C to 55 °C (-58 °F to 131 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC CISPcR 35, EN 50121-4, EN 55032 Class A, EN 55035, Safety CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, Network NIST SP500-267 |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Dimensions |
Height: 141 mm (5.6 in) |
|
Weight |
2100 g (4.6 lb) |
|
Included Accessories |
Camera, weathershield, installation guide, conduit adapter, RESISTORX® TR20 screw bit, terminal block connectors, connector guard, cable gasket, owner authentication key |
|
Optional Accessories |
AXIS TQ3103-E Pendant Kit, AXIS TQ3202-E Recessed Mount AXIS T8415 Wireless Installation Tool |
|
Video Management Software |
AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
