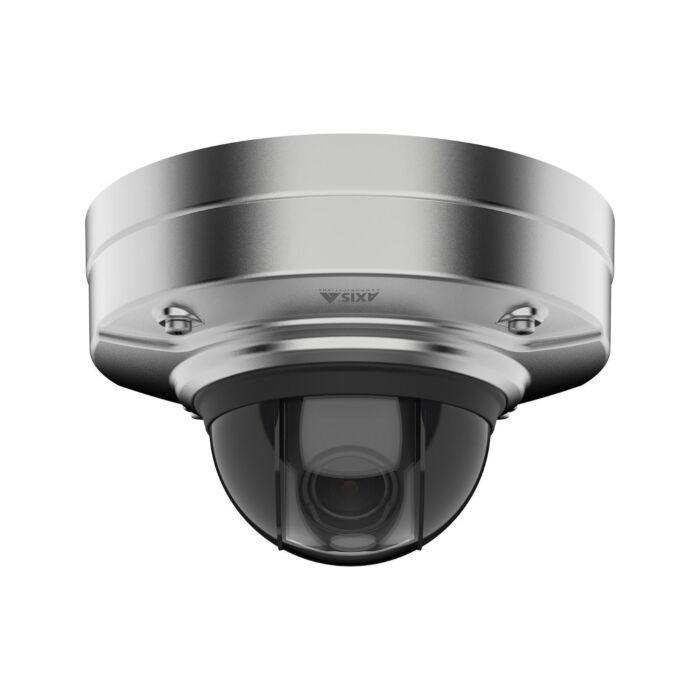

AXIS Q3538-SLVE Dome Camera
Unmatched Surveillance with AXIS Q3538-SLVE Dome Camera
In the realm of industrial security cameras, the AXIS Q3538-SLVE Dome Camera stands as a pinnacle of innovation. Encased in marine-grade stainless steel (SS 316L), it resists corrosion, making it ideal for harsh environments and marine applications. Certified by DNV and NSF/ANSI Standard 169, this vandal-resistant camera ensures security even in the most challenging conditions. Withstanding temperatures from -50 °C to 55 °C, it excels in extreme climates. The Axis Edge Vault guarantees the security of your device and sensitive information, complemented by redundant power for reliability.
This camera's 4K resolution delivers exceptional image quality, aided by OptimizedIR, IR-shielded dome, Forensic WDR, and Lightfinder 2.0 technologies. Electronic image stabilization ensures steady footage in vibrating conditions. The incorporation of Zipstream with H.264/H.265 optimizes bandwidth and storage while maintaining image quality. Moreover, the ARTPEC-8 system-on-chip, featuring a deep learning processing unit, empowers the camera with advanced analytics on the edge. AXIS Q3538-SLVE supports ACAP Version 4, enabling tailor-made applications for deep learning, providing unparalleled surveillance capabilities for industrial and machine vision applications.
Features:
- Marine-grade stainless steel construction
- 4K resolution with OptimizedIR and IR-shielded dome
- Vandal-resistant technology with NSF/ANSI Standard 169 certification
- Axis Edge Vault security and redundant power
- Electronic Image Stabilization and Forensic WDR
- Zipstream with H.264/H.265 for bandwidth optimization
- ARTPEC-8 SoC with deep learning processing unit
- ACAP Version 4 support for tailored applications
Applications:
- Industrial Surveillance
- Machine Vision Systems
- Marine Environments
- Food Processing Facilities
- Harsh Weather Conditions
- Extreme Climate Installations
- Remote Locations
- Forensic Search Capabilities
|
Image Sensor |
1/1.2” progressive scan RGB CMOS Pixel size 2.9 µm |
|
Lens |
Varifocal, 6.2–12.9 mm, F1.6–2.9 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.07 lux at 50 IRE, F1.6 |
|
Shutter Time |
1/66500 s to 2 s |
|
Camera Angle Adjustment |
Pan ±180°, tilt -43 to +80°, rotation ±175° |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8194 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
16:9: 3840x2160 to 160x90 |
|
Frame Rate |
With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth |
|
WDR |
Forensic WDR: Up to 120 dB depending on scene |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping , exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask |
|
Pan/Tilt/Zoom |
Digital PTZ, optical zoom, preset positions Limited guard tour, control queue, on-screen directional indicator Tour recording (max 10, max duration 16 minutes each), guard tour (max 100) 2x optical zoom |
|
Audio Streaming |
Two-way, Full-duplex |
|
Audio Encoding |
24–bit LPCM 48 kHz, AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8kHz, Opus 8/16/48 kHz Configurable bitrate |
|
Audio Input/Output |
External microphone input or line input (balanced or unbalanced), line output, digital audio input, automatic gain control Microphone power: Microphone power 5V on tip, ring power 12V on ring, phantom power 12V on tip/ring |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Version SDK. |
|
Video Management Systems |
AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners |
|
Onscreen Controls |
Electronic image stabilization Day/night shift Defogging Wide dynamic range Video streaming indicator IR illumination Heater |
|
Event Conditions |
Analytics, external input, supervised external input, edge storage events, virtual inputs through API Audio: audio detection, audio clip playing Call: state, state change Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, shock detected, casing open, storage failure, system ready, within operating temperature Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT subscribe MQTT: stateless Scheduled and recurring: schedule Video: tampering, average bitrate degradation, day-night mode, live stream open |
|
Event Actions |
I/O: toggle I/O once, toggle I/O while the rule is active Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap Calls: end SIP call, make SIP call, answer call MQTT publish Overlay text, external output activation, play audio clip, zoom preset, day/night mode, make call, flash status LED, use lights, set defog mode, send MQTT publish message, set WDR mode |
|
Built-in installation aids |
Leveling assistant, straighten image, image grid, pixel counter |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included AXIS Live Privacy Shield, AXIS Object Analytics Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
|
Casing |
IP6K9K-, IP66-, IP67-, IP68- and NEMA 4X-rated, IK11 (50 joules) impact-resistant stainless steel casing |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon) ¾” (M25) conduit side entry |
|
Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 9 W, max 23 W 10–28 V DC, typical 9 W, max 24 W |
|
Connectors |
Audio: 3.5 mm mic/line in, 3.5 mm line out |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
-50 °C to 60 °C (-58 °F to 140 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C (-40 °F) Humidity 10–100% RH (condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, Safety CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, Network NIST SP500-267 |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Dimensions |
Height: 125 mm (4.9 in), 195 mm (7.7 in) |
|
Weight |
2.2 kg (4.9 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill template, terminal block connectors for DC and I/O, RESISTORX® key, connector guard, 5-15mm cable gaskets, 3-5mm cable gasket, mounting bracket, plugs |
|
Optional Accessories |
AXIS TQ3807-E Dome Smoked |
|
Video Management Software |
AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
