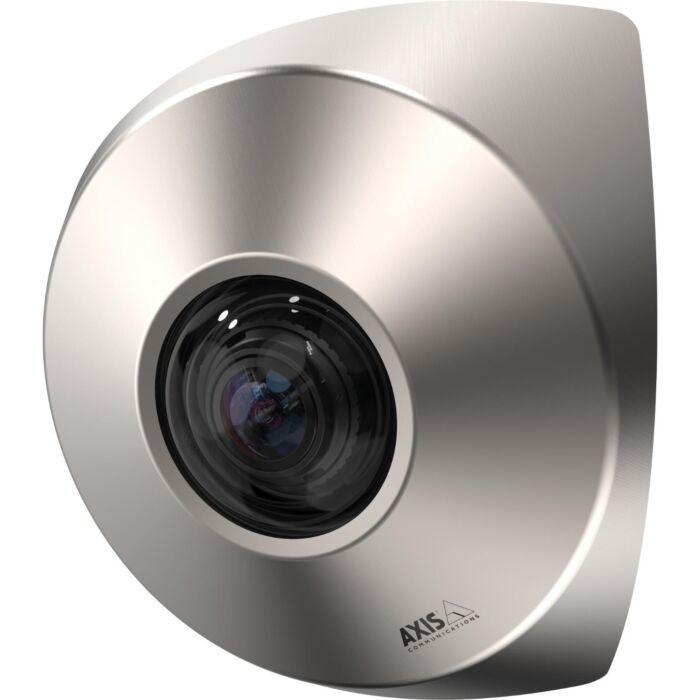

AXIS P9106-V Network Camera
Elevate Security with AXIS P9106-V Network Camera
In the realm of industrial security and machine vision, the AXIS P9106-V Network Camera stands as a pinnacle of innovation. Crafted by Aegis Electronic Group, these indoor, corner-mounted cameras redefine the surveillance landscape, offering a remarkable resolution of up to 3 MP. Choose between the sophisticated brushed steel model (AXIS P9106-V Brushed Steel) or the ligature-resistant matte white variant (AXIS P9106-V White), both designed to seamlessly blend into diverse environments.
Installation is a breeze, as these cameras are engineered for quick corner-mounting, accommodating two of the three surfaces. The AXIS P9106-V goes beyond conventional setups by supporting multiple media converter options, including PoE over 2-wire, making it ideal for elevator installations.
The cameras boast full coverage from any corner, eradicating blind spots with an out-of-the-box optimized field of view. Leveraging Wide Dynamic Range (WDR) and Zipstream technologies, the AXIS P9106-V captures crucial details while optimizing bandwidth and storage usage.
Whether deployed in high-end commercial spaces or security-sensitive environments, these cameras provide an elegant, vandal-resistant solution. Elevate your surveillance game with the AXIS P9106-V Network Camera, where simplicity meets sophistication, ensuring safety, security, and seamless integration. Choose Aegis Electronic Group for a surveillance experience that transcends expectations.
Features:
- Up to 3 MP resolution
- Vandal-resistant (IK10) and IP66-rated
- PoE over 2-wire for elevator installations
- WDR and Zipstream for detailed capture
- Elegant brushed steel and ligature-resistant white finishes
- Quick and cost-effective installation
Applications:
- Elevator surveillance for 24/7 monitoring
- High-security installations (ligature-resistant design)
- Waiting rooms and interview rooms with synchronized audio
- Commercial environments with high-end interior design
- Industrial and machine vision applications
|
Image Sensor |
1/3” progressive scan RGB CMOS |
|
Lens |
M12 mount, fixed focus, fixed iris |
|
Minimum Illumination |
Color: 0.35 lux at 50 IRE F2.4 |
|
Shutter Speed |
1/32500 s to 1/5 s |
|
Camera Angle Adjustment |
Tilt ±5° |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
|
Resolutions |
2016x1512 to 320x240 (4:3) |
|
Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
|
Multi-view Streaming |
2 individually cropped-out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, WDR, white balance, exposure mode, compression, privacy masks, orientation: auto, 0°, 90°, 180°, 270°, mirroring of images, text and image overlays |
|
Pan/Tilt/Zoom |
Digital PTZ, preset positions, guard tours |
|
Audio Input/Output |
Two-way audio connectivity via AXIS T61 Audio and I/O Interfaces with portcast technology |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Video Hosting System (AVHS) with One-Click Connection One-click cloud connection |
|
Event Triggers |
Analytics, edge storage events, virtual inputs through API |
|
Event Conditions |
Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature |
|
Event Actions |
Video recording: to SD card or network share |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Pixel counter |
|
Applications |
Included |
|
Approvals |
EMC EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35 IEC/EN/UL 60950-1, IS 13252 Environment IEC/EN 60529 IP66, IEC/EN 62262 Class IK10, Network NIST SP500–267 |
|
Casing |
IP66, IK10-rated |
|
Sustainability |
PVC Free |
|
Mounting |
Corner mounting on 3 or 2 surfaces (wall + wall or wall + ceiling) |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1 Typical 2.8 W, max 3.2 W |
|
Connectors |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1 Typical 2.8 W, max 3.2 W |
|
Storage |
Support for microSD/microSDHC/microSDXC card with UHS Speed Class U1 |
|
Operating Conditions |
-15 °C to 50 °C (5 °F to 122 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Dimensions |
White |
|
Weight |
White |
|
Included Accessories |
Connector guard |
|
Optional Accessories |
AXIS P91 Skin Cover A Brushed Steel (for white Network Camera) AXIS T6101 Audio and I/O Interface |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
