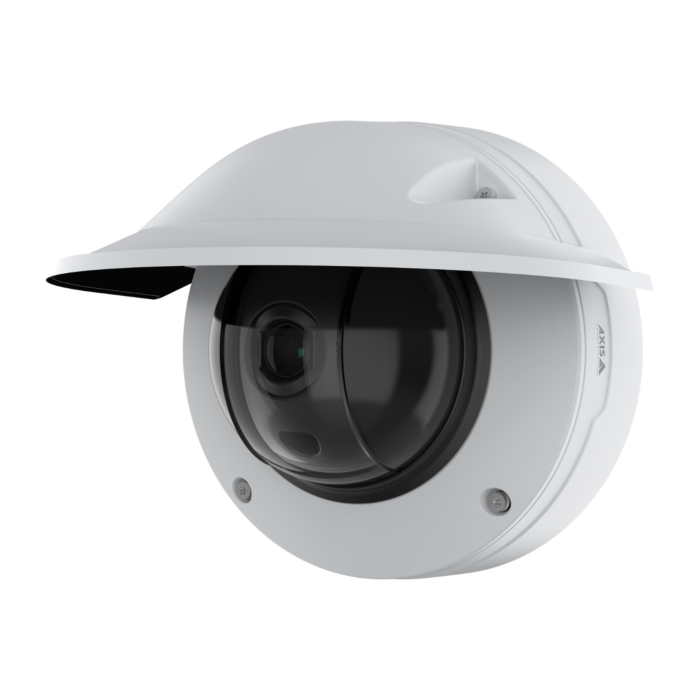

Axis Q3536-LVE Dome Camera Image # 1 with shielded dome

AXIS Q3536-LVE 9MM Dome Camera

AXIS Q3538-LVE Dome Camera Image #1 with weathershield

AXIS Q3538-LVE Dome Camera

AXIS Q3536-LVE 29MM Dome Camera

Experience unmatched surveillance with the AXIS Q3536-LVE Dome Camera from Aegis Electronic Group. This advanced 4 MP security solution, equipped with deep learning analytics, wide/tele lenses, and robust cybersecurity features, ensures precise monitoring for industrial applications. Invest in superior surveillance today!
SKU
Q3536-LVE 29MM

Revolutionize Surveillance with AXIS Q3536-LVE 29MM Dome Camera

Unlock unparalleled surveillance capabilities with the AXIS Q3536-LVE 29MM Dome Camera offered by Aegis Electronic Group. Boasting advanced 4 MP resolution and incorporating deep learning analytics, this industrial security camera delivers outstanding image quality, ensuring precision in monitoring critical areas. The camera is available with both wide and telephoto lenses, offering flexibility in capturing a broad range of scenes with clarity.

Designed with an IR-shielded dome to prevent reflections and housed in a durable metal casing, the AXIS Q3536-LVE ensures reliable performance in diverse environments. Its built-in cybersecurity features provide an additional layer of protection, making it a trustworthy solution for sensitive applications.

Machine Vision and industrial scenarios benefit immensely from this camera's capabilities. Its deep learning analytics enable real-time data analysis, making it ideal for quality control, process monitoring, and anomaly detection. The IR-shielded dome ensures clear imaging in challenging lighting conditions, enhancing overall surveillance effectiveness. Aegis Electronic Group presents a cutting-edge solution for industrial security and machine vision needs, revolutionizing the way you safeguard your operations.

Features:

  • Outstanding image quality in 4 MP
  • Support for analytics with deep learning
  • IR-shielded dome to prevent reflections
  • Built-in cybersecurity features
  • Available with wide or tele lens


Applications:


  • Security
  • Surveillance
  • Stores
  • Hotels
  • Schools
  • Banks
  • Offices
  • Warehouse
  • Parking Lots

Image Sensor

1/1.8” progressive scan RGB CMOS

Lens

AXIS Q3536-LVE 9 mm: Varifocal, 4.3–8.6 mm, F1.5–2.4 Horizontal field of view: 103°–53° Vertical field of view: 56°–30° Varifocal, Remote focus and zoom, P-Iris control, IR corrected
AXIS Q3536-LVE 29 mm: Varifocal, 11.3–29.4 mm, F1.7 Horizontal field of view: 40°–15° Vertical field of view: 22°–9° Varifocal, Remote focus and zoom, P-Iris control, IR corrected

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

AXIS Q3536-LVE 9 mm Color: 0.06 lux at 50 IRE, F1.5 B/W: 0 lux at 50 IRE, F1.5 AXIS Q3536-LVE 29 mm: Color: 0.08 lux at 50 IRE, F1.7 B/W: 0 lux at 50 IRE, F1.7

Shutter Time

1/91000 s to 1 s

Camera Angle Adjustment

Pan ±180°, tilt -43 to +80°, rotation ±175°

Video Compression

H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG

Resolutions

Up to 2688x1512

Frame Rate

With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator

Multi-view Streaming

Up to 8 individually cropped out view areas

Image Settings

Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping , exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask

Pan/Tilt/Zoom

Digital PTZ, optical zoom, preset positions Limited guard tour, control queue, on-screen directional indicator Tour recording (max 10, max duration 16 minutes each), guard tour (max 100) AXIS Q3536-LVE 9 mm: 2x optical zoom

AXIS Q3536-LVE 29 mm: 2.6x optical zoom

Audio Streaming

Two Way, Full-duplex

Audio Encoding

24bit LPCM, AAC-LC 8/16/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate

Audio Input/Output

External microphone input or line input (balanced or unbalanced), line output, digital audio input, automatic gain control Microphone power: Microphone power 5V on tip, ring power 12V on ring, phantom power 12V on tip/ring

Security

Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified)

Supported Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection (O3C) ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T specification

Onscreen Controls

Electronic image stabilization Day/night shift Defogging Wide dynamic range Video streaming indicator IR illumination Heater

Event Triggers

Analytics, supervised external inputs, virtual inputs through API, edge storage events, shock detection

Event Conditions

Analytics, external input, supervised external input, edge storage events, virtual inputs through API Audio: audio detection, audio clip playing Call: state, state change Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, shock detected, casing open, storage failure, system ready, within operating temperature Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT subscribe MQTT: stateless Scheduled and recurring: schedule Video: tampering, average bitrate degradation, day-night mode, live stream open

Event Actions

I/O: toggle I/O once, toggle I/O while the rule is active Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap Calls: end SIP call, make SIP call, answer call MQTT publish Overlay text, external output activation, play audio clip, zoom preset, day/night mode, make call, flash status LED, use lights, set defog mode, send MQTT publish message, set WDR mode

Data Streaming

Event Data

Built-in installation aids

Leveling assistant, straighten image, image grid, pixel counter

Compute Capabilities

Deep learning processing unit (DLPU)

AXIS Object Analysis

Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios Metadata visualized with trajectories and color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event

Applications

Included AXIS Object Analytics AXIS Video Motion Detection, active tampering alarm, audio detection

Supported Support for AXIS Camera Application Platform

Casing

IP66-, IP6K9K-, NEMA 4X- and IK10+-rated Polycarbonate hard coated dome Aluminum and plastic casing, polycarbonate (PC) dome, sunshield (PC/ASA) Color: white NCS S 1002-B For repainting instructions of casing and impact on warranty, contact your Axis partner. This product can be repainted

Mounting

Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon) ¾” (M25) conduit side entry

Sustainability

PVC-free

Power

Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 9 W, max 23 W 10–28 V DC, typical 9 W, max 24 W

Connectors

Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE DC input, 3.5 mm mic/line in, 3.5 mm line out Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max load 50 mA)

IR Illumination

OptimizedIR with power-efficient, long-life 850 nm IR LEDs AXIS Q3536-LVE 9 mm: Range of reach 40 m (130 ft) or more depending on the scene AXIS Q3536-LVE 29 mm: Range of reach 60 m (200 ft) or more depending on the scene

Storage

Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS)

Operating Conditions

-50 °C to 60 °C (-58 °F to 140 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C (-40 °F) Humidity 10–100% RH (condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)

Humidity 5-95% RH (non-condensing)

Approvals

EMC

CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Safety

CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252

Environment

IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, ISO 20653 IP6K9K, IEC/EN 62262 IK10+ (50J), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Network

NIST SP500–267

Dimensions

Height: 124 mm (4.9 in), 184 mm (7.3 in) including weathershield ø 183 mm (7.2 in)

Weight

2.1 kg (4.6 lb) including weathershield

Included Accessories

Installation guide, Windows® decoder 1-user license, drill hole template, terminal block connectors for DC and I/O, RESISTORX® L-key, connector guard, cable gasket, conduit adapter, mounting bracket, weathershield

Optional Accessories

AXIS T8415 Wireless Installation Tool AXIS Surveillance Cards AXIS TQ3807-E Dome Smoked, AXIS T94M01D Pendant Kit

Video Management Software

AXIS Companion, AXIS Camera Station

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Warranty

Axis 3–year warranty and AXIS Extended Warranty
