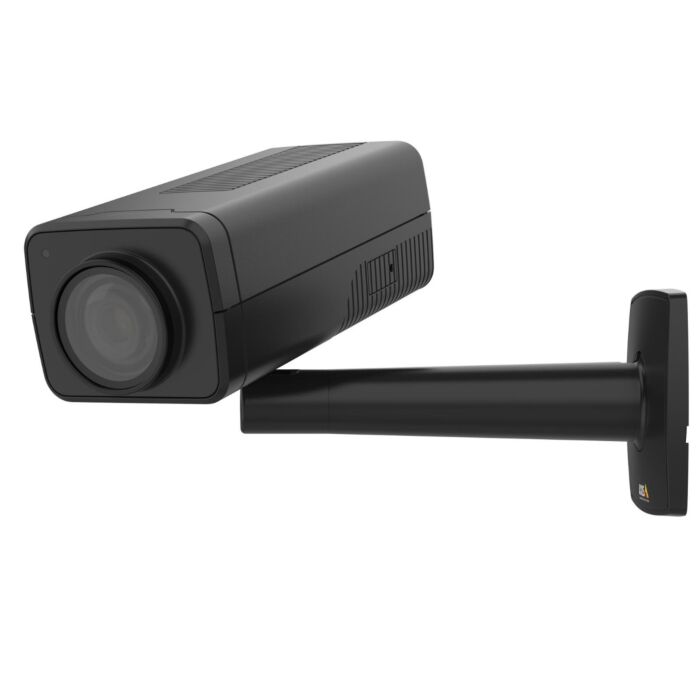

AXIS Q1715 Block Camera

Experience unparalleled security with AXIS Q1715 – the industrial block camera delivering high performance and deep learning analytics. Enhance your surveillance capabilities with 1080p resolution, 21x zoom, and versatile connectivity options. Secure your premises with confidence. Invest in AXIS Q1715 for uncompromising security solutions.
SKU
Q1715

AXIS Q1715 Industrial Block Camera: High-Performance Security Solution

Unlock the potential of industrial surveillance with the AXIS Q1715, a cutting-edge block camera designed for security applications in accessory housings and casings. Boasting a 21x optical zoom and delivering high-definition 1080p at 120 fps, this camera ensures exceptional detail even at extended distances. The integration of a deep learning processing unit (DPLU) empowers advanced analytics, facilitating granular object classification and minimizing false positives.

The AXIS Q1715 offers versatile connectivity with HDMI and HD-SDI outputs, providing options for public viewing monitors and seamless integration with various video equipment. With support for edge computing, it features Axis Object Analytics for nuanced object classification. The device's robust security features, including Axis Edge Vault and FIPS 140-2 Security Level 2 certified TPM, guarantee secure storage of cryptographic keys and certificates.

Ideal for machine vision and industrial applications, the AXIS Q1715 supports I2C control for IR-illumination and supervises inputs to notify users of connection disruptions. It can be powered through DC power and PoE, ensuring continuous operation even during power outages. The camera's exceptional image quality, electronic image stabilization (EIS), and advanced features make it a perfect choice for demanding surveillance scenarios, ensuring optimal coverage and reliable security.

Features:

  • 1080p at 120 fps with 21x zoom
  • Deep Learning Processing Unit (DPLU)
  • HDMI and HD-SDI Output
  • Axis Object Analytics for advanced analytics
  • Secure storage with Axis Edge Vault and FIPS 140-2 certified TPM
  • I2C control for IR-illumination
  • Electronic Image Stabilization (EIS)

Applications:

  • Industrial Surveillance
  • Machine Vision Systems
  • Accessory Housings and Casings
  • Public Monitoring
  • Security in Challenging Environments

Image Sensor

1/2.8” progressive scan RGB CMOS

Lens

Varifocal, 4-84.6 mm, F1.6-F4.5
Horizontal field of view: 76°–3.6°
Vertical field of view: 42°–2.2°
Autofocus, P-Iris control

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

1080p 25/30 fps with Forensic WDR and Lightfinder 2.0:
Color: 0.1 lux at 50 IRE F1.5
B/W: 0.02 lux at 50 IRE F1.5
1080p 50/60 fps with Forensic WDR and Lightfinder 2.0:
Color: 0.2 lux at 50 IRE F1.5
B/W: 0.04 lux at 50 IRE F1.5
1080p 100/120 fps without WDR
Color: 0.4 lux at 50 IRE F1.6
B/W: 0.08 lux at 50 IE F1.6

Shutter Speed

1/66500 s to 2 s

Model

ARTPEC-8

Memory

2048 MB RAM, 1024 MB Flash

Compute Capabilities

Deep learning processing unit (DLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG

Resolutions

1920x1080 HDTV 1080p to 160x90

Frame Rate

With WDR: Up to 50/60 fps (50/60 Hz) in all resolutions
No WDR: Up to 100/120 fps in all resolutions

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Low latency mode
Video streaming indicator

Image Settings

Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, motion-adaptive exposure, defogging, barrel distortion correction, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, polygon privacy masks
Scene profiles: forensic, vivid, traffic overview

Pan/Tilt/Zoom

Zoom: 21x optical
Up to 100 preset positions, control queue, adjustable zoom speed
Uploadable PTZ driver

Audio Encoding

SDI: AES3 24 bit, 48 kHz
HDMI: LPCM 24 bit, 48 kHz
Network: AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz

Audio Input/Output

External microphone input or line input, digital audio input, ring power, network speaker pairing

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK.
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX.

Event Conditions

Audio: audio clip playing, audio clip currently playing
Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, ring power overcurrent protection, storage failure, system ready, within operating temperature, shock detection
Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal OK Edge storage: recording ongoing, storage disruption
I/O: digital input, manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready
Scheduled and recurring: scheduled event
Video: average bitrate degradation, day-night mode, live stream open, tampering

Event Actions

Record video: SD card and network share
MQTT publish
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
Pre- and post-alarm video or image buffering for recording or upload
Notification: email, HTTP, HTTPS, TCP and SNMP trap
PTZ: PTZ preset, start/stop guard tour
Overlay text, external output activation, play audio clip, zoom preset, day/night mode , make call

Data Streaming

Event Data

Built-in installation aids

Leveling guide, pixel counter, license plate capture assistant

AXIS Object Analysis

Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area
Up to 10 scenarios
Metadata visualized with trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event

Metadata

Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Attributes: Vehicle color, upper/lower clothing color, confidence, position
Event data: Producer reference, scenarios, trigger conditions

Applications

Included
AXIS Object Analytics
AXIS Video Motion Detection
Supported
AXIS Audio Spectrum Visualizer
Support for AXIS Camera Application Platform enabling installation of third-party applications

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform
TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot

Network Security

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Casing

Aluminum and plastic casing Color: NCS S 9000-N

Sustainability

PVC and BFR/CFR free

Power

Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Typical: 12.4 W, max 14.2 W
10–28 V DC, typical 12 W, max 13.5 W
When PoE Class 3 is selected:
Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Typical: 11.7 W, max 12.9 W
10–28 V DC, typical 10.8 W, max 12.4 W

Connectors

Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
I/O: 6-pin 2.5 mm terminal block for four configurable inputs RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
3.5 mm mic/line in
DC input
HDMI Type D, BNC for SDI
I2C for AXIS TQ1809–LE Housing
Security lock slot

Storage

Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Support for recording to network-attached storage (NAS)

Operating Conditions

-20 °C to 50 °C (-4 °F to 122 °F)
Humidity 10–85% RH (non-condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)

Approvals

EMC

EN 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9832 Class A, KS C 9835
USA: FCC Part 15 Subpart B Class A

Safety

CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252

Environment

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78

Network

NIST SP500-267

Cybersecurity

ETSI EN 303 645

Dimensions

Height: 66 x 80 x 195 mm (2.6 x 3.1 x 7.7 in)

Weight

650 g (1.4 lb)

Included Accessories

Installation guide, Windows® decoder 1-user license, stand, connector kit, TORX® T20 screw driver, RESISTORX® L-key, terminal block connector

Optional Accessories

AXIS TQ1809-LE Housing T92Ga
AXIS T8415 Wireless Installation Tool
AXIS Surveillance Cards

Video Management

AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Warranty

5 year
