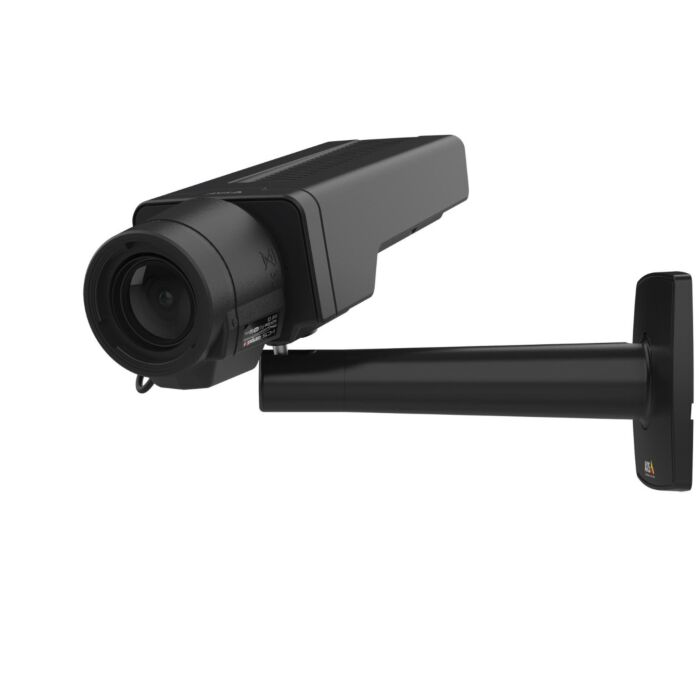

AXIS Q1656 Box Camera

Experience unparalleled security with AXIS Q1656—delivering 4 MP resolution, deep learning analytics, and robust cybersecurity. Upgrade your surveillance today.
SKU
Q1656

Unleashing Superior Performance: AXIS Q1656 Box Camera

Delve into the cutting-edge AXIS Q1656, a high-performance industrial security camera redefining standards. Boasting a remarkable 4 MP resolution and exceptional image quality facilitated by a 1/1.8” sensor, it stands out in diverse applications. With premium Q-line functionality, this camera excels even in challenging lighting conditions, thanks to Lightfinder 2.0. The inclusion of intelligent i-CS lens technology and remote zoom and focus capabilities ensures swift installation and adjustment. Power over Ethernet (PoE) and redundant DC power options guarantee a reliable power supply for uninterrupted surveillance.

The AXIS Q1656 is more than a camera; it's a powerhouse of analytics. Built on the latest Axis system-on-chip (SoC) with a deep learning processing unit (DLPU), it enables powerful analytics on the edge. The ARTPEC-8-based camera supports AXIS Object Analytics, allowing customized detection and classification of humans, vehicles, and specific vehicle types. ACAP version 4 compatibility expands its capabilities, providing tailored applications for your unique requirements.

Security is paramount, and the AXIS Q1656 ensures it with built-in cybersecurity features, including Axis Edge Vault, signed firmware, and secure boot. With a Trusted Platform Module (TPM) certified at FIPS 140-2 level 2, it provides an extra layer of protection. Consider retrofitting with AXIS T92E20 Outdoor Housing for seamless integration and added deep-learning capabilities to existing installations. Elevate your surveillance standards with the AXIS Q1656—where innovation meets reliability.

Features:

  • 4 MP resolution
  • Premium Q-line functionality
  • Remote zoom and focus
  • Intelligent i-CS lens technology
  • Power over Ethernet (PoE) and redundant DC power
  • Latest Axis system-on-chip (SoC) with DLPU
  • AXIS Object Analytics for customized detection
  • ACAP version 4 compatibility
  • Built-in cybersecurity features
  • Retrofitting options for AXIS T92E20 Outdoor Housing

Applications:

  • Industrial surveillance
  • Machine vision systems
  • Outdoor installations
  • Retrofitting existing setups
  • Deep-learning analytics
  • Reliable power-sensitive environments

Image Sensor

1/1.8” progressive scan RGB CMOS

Lens

Varifocal, 3.9–10 mm, F1.5
Horizontal field of view: 120°–47°
Vertical field of view: 63°–27°
Autofocus, i-CS lens, IR corrected, remote zoom and focus, P-Iris control
Minimum focus distance: 0.5 m (1.6 ft)

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

4 MP 25/30 fps with Forensic WDR and Lightfinder 2.0 Color: 0.05 lux at 50 IRE, F1.5
B/W: 0.01 lux at 50 IRE, F1.5
4 MP 50/60 fps with Lightfinder 2.0
Color: 0.1 lux at 50 IRE, F1.5
B/W: 0.02 lux at 50 IRE, F1.5
4 MP 25/30 fps with Forensic WDR and Lightfinder 2.0 With optional F0.9 lens
Color: 0.02 lux at 50 IRE, F0.9
B/W: 0.004 lux at 50 IRE, F0.9

Shutter Time

1/47500 s to 1 s

Model

ARTPEC-8

Memory

2048 MB RAM, 8194 MB Flash

Compute Capabilities

Deep learning processing unit (DLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG

Resolutions

16:9 2688x1512 Quad HD to 160x90
4:3 2016x1512 to 160x120

Frame Rate

No WDR: Up to 60/50 fps (60/50 Hz) in all resolutions
WDR: Up to 30/25 fps (60/50 Hz) in all resolutions

Video Streaming

Multiple, individually configurable streams in H.264, H.265, and

Motion JPEG

Axis Zipstream technology in H.264 and H.265

Controllable frame rate and bandwidth

VBR/ABR/MBR H.264/H.265

Video streaming indicator

Image Settings

Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction
scene profiles: forensic, vivid, traffic overview

Pan/Tilt/Zoom

Digital PTZ

Uploadable PTZ driver (Pelco D pre-installed)

Audio Streaming

Two-way, full duplex
Noise Reduction

Audio Encoding

24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate

Audio Input/Output

External microphone input or line input, line output, built-in microphone (can be disabled), ring power, digital audio input, automatic gain control

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK.
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org

Onscreen Controls

Electronic image stabilization Day/night shift
Defogging
Wide dynamic range
Video streaming indicator

Event Conditions

Analytics, external input, supervised external input, edge storage events, virtual inputs through API
Audio: audio detection
Device status: above operating temperature, above or below operating temperature, below operating temperature, casing open, IP address removed, network lost, new IP address, shock detection, ring power overcurrent protection, storage failure, system ready, within operating temperature
Edge storage: recording ongoing, storage disruption
I/O: digital input, manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready
Scheduled and recurring: scheduled event
Video: live stream open

Event Actions

Overlay text, external output activation, play audio clip, zoom preset
I/O: toggle I/O once, toggle I/O while the rule is active
MQTT: publish
Notification: HTTP, HTTPS, TCP, and email
Pre- and post-alarm video or image buffering for recording or upload
PTZ: PTZ preset, start/stop guard tour
Record video: SD card and network share
SNMP traps: send, send while the rule is active
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email

Built-in installation aids

Remote zoom and focus, remote back focus, leveling assistant, pixel counter

AXIS Object Analysis

Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area
Up to 10 scenarios
Metadata visualized with trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event

Metadata

Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Confidence, position
Event data: Producer reference, scenarios, trigger conditions

Applications

Included
AXIS Object Analytics
AXIS Live Privacy Shield
AXIS Video Motion Detection
Supported
AXIS Perimeter Defender

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Secure boot

Network Security

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Casing

Aluminum casing
Color: black NCS S 9000-N

Mounting

¼”-20 tripod screw thread

Sustainability

PVC Free, BFR/CFR free, 0% recycled plastics, 4% bio-based plastics

Power

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5.1 W, max 8.2 W
10–28 V DC, typical 4.6 W, max 7.7 W
Power redundancy

Connectors

RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Terminal block for two supervised and two unsupervised configurable inputs / digital outputs (12 V DC output, max load 50 mA)
RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris)
AXIS T92G20 connector, Security lock slot

Storage

Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Support for recording to network-attached storage (NAS)

Operating Conditions

-20 °C to 60 °C (-4 °F to 140 °F) Humidity 10–85% RH (non-condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)

Approvals

EMC

EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: CISPR 24, CISPR 35,
RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(B)/NMB-3(B)
Japan: VCCI Class A
Korea: KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547 USA: FCC Part 15 Subpart B Class A

Safety

IEC/EN/UL 62368-1

Environment

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78

Network

NIST SP500-267

Cybersecurity

ETSI EN 303 645

Dimensions

214 x 80 x 68 mm (8.4 x 3.2 x 2.7 in)

Weight

790 g (1.7 lb)

Included Accessories

Installation guide, Windows® decoder 1-user license, stand, drill hole template, connector kit, RESISTORX® L-key

Optional Lenses

AXIS T8415 Wireless Installation Tool
AXIS Surveillance Cards

Optional Accessories

Lens CS 4-10 mm F0.9 P-Iris
Lens i-CS 9-50 mm F1.5 8 MP
Lens CS 12-50 mm F1.4 P-Iris 8 MP

Video Management Software

AXIS Companion, AXIS Camera Station, video management

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Warranty

5 year
