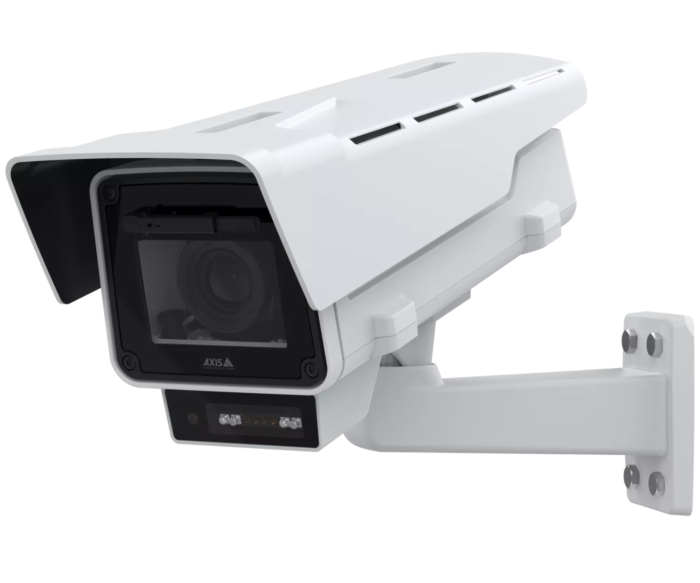

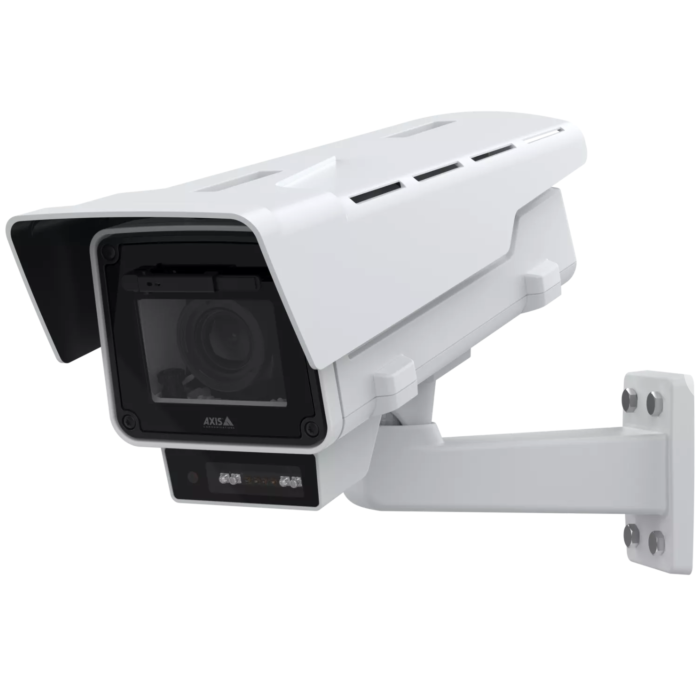

AXIS Q1656-LE 4MP Box Camera with 1/1.8” Sensor, 60fps, Deep Learning, IR, IK10, IP67, and Built-in Wiper
The AXIS Q1656-LE delivers superior 4MP video at up to 60 fps, powered by a 1/1.8" CMOS sensor and Axis' ARTPEC-8 SoC with built-in deep learning processing. It excels in low-light conditions with Lightfinder 2.0 and Forensic WDR, capturing color down to 0.05 lux and monochrome to 0.01 lux. The integrated IR white LED ensures performance in total darkness, and its motorized 3.9–10 mm CS-mount lens supports remote zoom and focus. The camera also features EIS, local storage, and Zipstream with support for H.264 and H.265 compression.
Built for harsh environments, the Q1656-LE is housed in an IK10-rated casing (IK08 for front window) with IP66/IP67 and NEMA 4X/TS2 certifications, and withstands winds up to 60 m/s. Operating from -40 °C to 60 °C, it includes a built-in wiper for rain/snow, redundant power (PoE Class 4 and DC 10–28V), and surge protection. Embedded cybersecurity includes signed firmware, secure boot, and secure keystore with CC EAL6+ certified Secure Element. It also supports AXIS Object Analytics and ACAP 4.0 for scalable, edge-based AI.
Features:
- 4 MP resolution at up to 60 fps (2688x1512)
- Large 1/1.8” CMOS sensor with Lightfinder 2.0
- Forensic WDR and Electronic Image Stabilization
- ARTPEC-8 chip with Deep Learning Processing Unit
- AXIS Object Analytics with edge AI classification
- Remote zoom/focus CS-mount lens (3.9–10 mm)
- Replaceable lens (i-CS compatible)
- Built-in IR LED and automatic wiper
- IK10, IP66/IP67, NEMA 4X/TS2 rated
- -40 °C to 60 °C operating temperature
- Secure boot, signed OS, and CC EAL6+ secure element
- PoE Class 4 and 10–28 VDC dual power input
- Local storage via microSD card slot
Applications:
- Critical infrastructure surveillance
- Airport and transit hub monitoring
- Traffic and roadway camera systems
- Industrial perimeter security
- City surveillance and smart city use
- AI-based intrusion detection and classification
- Environments requiring secure and weatherproof hardware
| Camera | |
|---|---|
| Lightfinder | Lightfinder 2.0 |
| Min Illumination (Color) | 0.05 lux |
| Min Illumination (B/W) | 0.01 lux |
| Image Sensor | CMOS |
| Image Sensor Size | 1/1.8" |
| Wide Dynamic Range | Forensic WDR |
| Video | |
| Max Video Resolution | 2688x1512 |
| Max Frame Rate | 50/60 fps |
| Electronic Image Stabilization | Yes |
| Lens | |
| Focal Length | 3.9 - 10 mm |
| Horizontal Field of View | 113° – 47° |
| Vertical Field of View | 60° – 27° |
| Lens Mount | CS |
| Replaceable Lens | Yes (i-CS compatible) |
| Compression | |
| Zipstream | Yes |
| H.264 | Baseline, Main, High |
| H.265 | Yes |
| AV1 | – |
| Audio | |
| Audio Support | Yes |
| Network | |
| PoE Class | Class 4 |
| Wireless | – |
| Security | |
| Signed OS | Yes |
| Secure Boot | Yes |
| Secure Keystore | Secure Element (CC EAL6+) |
| General | |
| Remote Focus | Yes |
| Remote Zoom | Yes |
| Built-in IR | Yes (White LED) |
| Local Storage | Yes (microSD slot) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Outdoor Ready | Yes |
| Vandal Rating | IK10 (IK08 front window) |
| IP Rating | IP66, IP67 |
| Designed for Repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
| Wiper | Built-in automatic wiper |
| Power | |
| Power (Max) | 25.5 W |
| Power (Average) | 11.2 W |
| DC Input Voltage | 10–28 V DC |
* Specifications may vary depending on configuration and environment.
