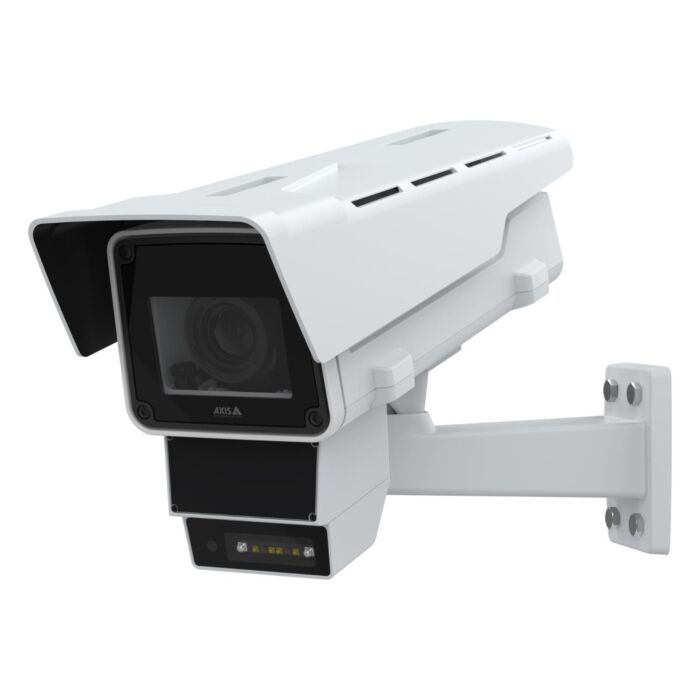

AXIS Q1656-DLE Radar-Video Fusion Camera
Revolutionary AXIS Q1656-DLE: Next-Level Detection and Fusion Technology
Unleash the power of cutting-edge technology with the AXIS Q1656-DLE Radar-Video Fusion Camera. This device seamlessly combines video and radar analytics through AXIS Object Analytics, resulting in unparalleled detection and visualization capabilities. Harnessing the precision of deep learning, video analytics offer precise localization and object classification. Simultaneously, radar analytics add distance and speed measurement, enhancing scene intelligence and forensic value.
The AXIS Q1656-DLE is more than just a fusion of technologies; it's a synergy of premium Q-line camera functionality and a fully integrated radar – a first in Axis's product lineup. Operating in low-light conditions, the radar detects objects over wide areas and visualizes the speed and distance of moving objects directly in the application view. The device's robustness, weather resistance, and built-in cybersecurity features, such as Axis Edge Vault, ensure the utmost security for your system.
Experience the benefits of lower costs with simplified installation, reduced energy consumption, and storage optimization. With a single device, cable drop, IP address, and video management software license, you'll enjoy efficient, cost-effective surveillance. The AXIS Q1656-DLE empowers security personnel to act on real threats, maximizing their efficiency and saving both time and money.
Features:
- Next-level detection and visualization
- Fusion of video and radar analytics
- Deep learning-powered object classification
- Reliable detection 24/7
- Premium Q-line camera functionality
- Built-in cybersecurity features
Applications:
- Wide-area intrusion protection
- Industrial and machine vision applications
- Surveillance in low-light conditions
- Forensic detail and object classification
- Efficient security personnel management
|
Image Sensor |
1/1.8” progressive scan RGB CMOS |
|
Lens |
Varifocal, 3.9–10 mm, F1.5 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
4 MP 25/30 fps with Forensic WDR and Lightfinder 2.0 |
|
Shutter Time |
1/47500 s to 1 s |
|
Profiles |
Area Monitoring |
|
Sensor |
FMCW (Frequency Modulated Continuous Wave) |
|
Object Data |
Object type (classes: humans, vehicles, unknown), range, direction, velocity |
|
Frequency |
Channel 1: 61.00–61.25 GHz |
|
RF Transmit Power |
<100 mW (EIRP) |
|
Recommended mounting height |
3.5–12 m (11–39 ft)a |
|
Recommended mounting tilt |
15–45°a |
|
Detection range |
Area monitoring profile: 5–60 m (16–200 ft) when detecting |
|
Radial Speed |
Area monitoring profile: Up to 55 km/h (34 mph) |
|
Field Of Detection |
Horizontal: 95° |
|
Speed Accuracy |
+/- 2 km/h (1.25 mph) |
|
Distance Accuracy |
Area monitoring profile: 0.5 m (1.6 ft) |
|
Angle accuracy |
1° |
|
Spatial Differentation |
3 md |
|
Data Refresh Rate |
10 Hz |
|
Coverage |
Area monitoring profile: 2700 m2 (29000 sq ft) for persons 6100 m2 (65600 sq ft) for vehicles |
|
Coexistence zone |
Frequency band: 61 GHz |
|
Radar Controls |
Multiple detection zones, line crossing detection with one or two lines, exclude zones with filters for short-lived objects, object speed, and object type, configurable trigger duration |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8194 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
16:9 2688x1512 Quad HD to 160x90 |
|
Frame Rate |
No WDR: Up to 60/50 fps (60/50 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction |
|
Pan/Tilt/Zoom |
Digital PTZ, preset position |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input or line input, line output, built-in microphone (can be disabled), ring power, digital audio input, automatic gain control |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Onscreen Controls |
Electronic image stabilization |
|
Event Conditions |
Analytics, external input, supervised external input, edge storage events, virtual inputs through API |
|
Event Actions |
Overlay text, external output activation, play audio clip, zoom preset |
|
Built-in installation aids |
Remote back focus, leveling assistant, pixel counter |
|
AXIS Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66-, IP67-, and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure with integrated dehumidifying membrane IK10 impact-resistant plastic front window |
|
Sustainability |
PVC free, BFR/CFR free, 2% recycled plastics, 7% bio-based plastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 11.8 W, max 12.95 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 50 m (164 ft) or more depending on the scene |
|
Illumination LED |
Power-efficient, long-life white LED |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 50121-4 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B) NIST SP500-267 Cybersecurity ETSI EN 303 645 |
|
Dimensions |
404 x 159 x 182 mm (16 x 6.3 x 7.2 in) |
|
Weight |
4.4 kg (9.0 lb) |
|
Included Accessories |
Sunshield, connector kit, resistorx® T20 tool, installation guide, Windows® decoder 1-user license |
|
Optional Lenses |
Lens CS 4-10 mm F0.9 P-Iris |
|
Optional Accessories |
AXIS T8415 Wireless Installation Tool AXIS Surveillance Cards |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
|
Warranty |
5 year |
