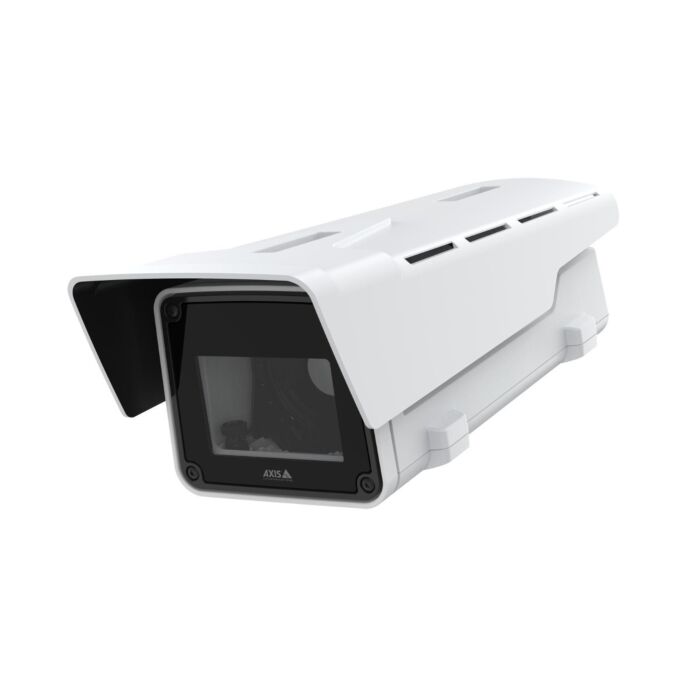

AXIS Q1656-BE Box Camera
Unparalleled Performance with AXIS Q1656-BE Industrial Camera
The AXIS Q1656-BE stands at the pinnacle of industrial security cameras, delivering unparalleled performance in challenging environments. Boasting a 4 MP resolution and a 1/1.8” sensor, it ensures exceptional video quality, even in low light, thanks to Lightfinder 2.0 and premium Q-line functionality. This outdoor barebone model is designed for customization, allowing you to tailor it to meet your specific requirements with various lens and mounting options. The support for i-CS lens and AXIS TQ1901-E IR Illuminator Kit enhances its flexibility.
Powered by the latest Axis system-on-chip (SoC) with deep learning capabilities, this camera offers powerful analytics on the edge, eliminating the need for expensive servers. The ARTPEC-8-based design includes a deep learning processing unit (DLPU), enabling detection and classification of humans, vehicles, and specific vehicle types with AXIS Object Analytics.
Reliability is at the core of AXIS Q1656-BE, with a robust, impact-resistant IK10-rated casing, water-resistant IP66 and IP67 ratings, and the ability to withstand winds up to 60 m/s. Supporting PoE and redundant DC power, it ensures flexible installation, while built-in cybersecurity features and surge protection guarantee secure and reliable operation.
Features:
- 4 MP Resolution with 1/1.8” Sensor
- Customizable Barebone Design
- Deep Learning Analytics (DLPU)
- i-CS Lens Support
- Outdoor-Ready and Robust (IK10)
- Weatherproof (IP66, IP67)
- Power over Ethernet (PoE)
- Redundant DC Power Support
- Surge Protection
- AXIS Object Analytics
Applications:
- Industrial Surveillance
- Machine Vision Systems
- Perimeter Security
- Critical Infrastructure Protection
- Transportation and Traffic Monitoring
- Factory Automation
- Outdoor Surveillance
- Deep Learning-based Analytics
- Remote Monitoring
- Customized Security Solutions
|
Image Sensor |
1/1.8” progressive scan RGB CMOS |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
4 MP 25/30 fps with Forensic WDR and Lightfinder 2.0 Color: 0.05 lux at 50 IRE, F1.5 |
|
Shutter Time |
1/47500 s to 1 s |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8194 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
16:9 2688x1512 Quad HD to 160x90 |
|
Frame Rate |
No WDR: Up to 60/50 fps (60/50 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction |
|
Pan/Tilt/Zoom |
Digital PTZ, preset position |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input or line input, line output, built-in microphone (can be disabled), ring power, digital audio input, automatic gain control |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Onscreen Controls |
Electronic image stabilization |
|
Event Conditions |
Analytics, external input, supervised external input, edge storage events, virtual inputs through API |
|
Event Actions |
Overlay text, external output activation, play audio clip, zoom preset |
|
Built-in installation aids |
Remote back focus, leveling assistant, pixel counter |
|
AXIS Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66-, IP67-, and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure with integrated dehumidifying membrane IK10 impact-resistant plastic front window |
|
Sustainability |
PVC free, BFR/CFR free, 0% recycled plastics, 5% bio-based plastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 11.8 W, max 12.95 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 Safety IEC/EN/UL 62368-1 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 Cybersecurity ETSI EN 303 645 |
|
Dimensions |
404 x 159 x 182 mm (16 x 6.3 x 7.2 in) |
|
Weight |
3.3 kg (7.3 lb) |
|
Included Accessories |
Sunshield, connector kit, resistorx® T20 tool, installation guide, Windows® decoder 1-user license |
|
Optional Lenses |
Lens i-CS 9-50 mm F1.5 8 MP Lens CS 12-50 mm F1.4 P-Iris 8 MP Lens i-CS 1/1.8" 3.9-10 mm F1.5 |
|
Optional Accessories |
AXIS T8415 Wireless Installation Tool AXIS Surveillance Cards |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
|
Warranty |
5 year |
