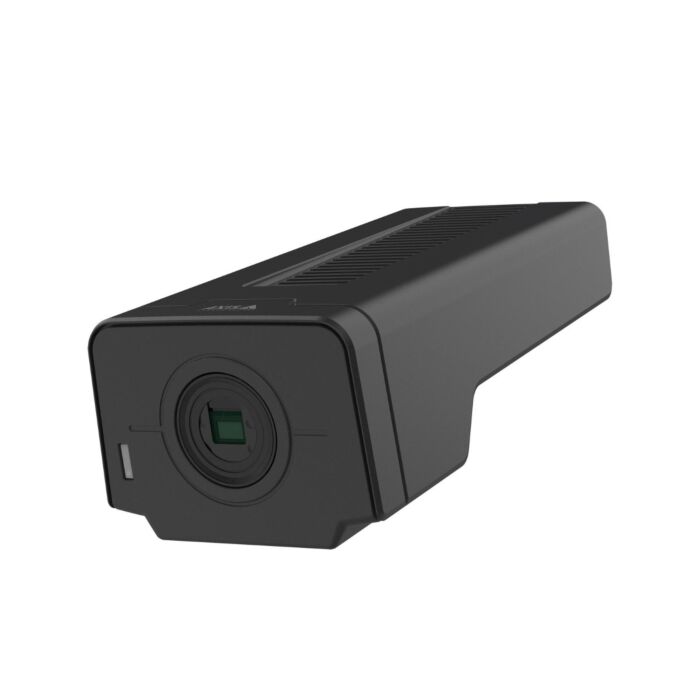

AXIS Q1656-B Box Camera
Unleashing Power: AXIS Q1656-B Industrial Box Camera
Immerse yourself in the pinnacle of surveillance technology with the AXIS Q1656-B Industrial Box Camera. This cutting-edge device is meticulously crafted for industrial and machine vision applications, setting a new standard for image quality and analytics. The 4 MP resolution, coupled with a 1/1.8” sensor, ensures exceptional clarity, even in the most challenging low-light scenarios. AXIS Q1656-B leverages the latest Axis system-on-chip (SoC), ARTPEC-8, empowering it with deep learning analytics capabilities on the edge.
Flexibility defines the AXIS Q1656-B, offering support for i-CS lenses and a barebone model ready for customization. Tailor it to your specific needs, creating a unique solution for your industrial vision requirements. The camera seamlessly integrates into existing installations, allowing for retrofits with accessories like the AXIS T92E20 Outdoor Housing, effortlessly adding deep-learning capabilities.
Beyond its impressive imaging capabilities, the AXIS Q1656-B prioritizes security. With built-in cybersecurity features such as Axis Edge Vault, Trusted Platform Module (TPM), and a security lock slot, your data is safeguarded against unauthorized access. Easy installation is facilitated through Power over Ethernet (PoE) support and redundant DC power options, ensuring a reliable and resilient surveillance solution. Elevate your surveillance strategy with AXIS Q1656-B – where innovation meets reliability for unparalleled industrial vision excellence.
Features:
- 4 MP resolution with 1/1.8” sensor
- Deep learning analytics with ARTPEC-8
- Customizable barebone model with i-CS lens support
- Cybersecurity features: Axis Edge Vault, TPM, and security lock slot
- Easy installation with PoE and redundant DC power support
Applications:
- Industrial machine vision
- Surveillance in challenging low-light conditions
- Retrofitting existing installations with deep-learning capabilities
- Reliable detection and classification of humans and vehicles
- Customized solutions for specific industrial needs
|
Image Sensor |
1/1.8” progressive scan RGB CMOS |
|
Lens |
Varifocal, 3.9–10 mm, F1.5 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
4 MP 25/30 fps with Forensic WDR and Lightfinder 2.0 |
|
Shutter Time |
1/47500 s to 1 s |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8194 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
16:9 2688x1512 Quad HD to 160x90 |
|
Frame Rate |
No WDR: Up to 60/50 fps (60/50 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction |
|
Pan/Tilt/Zoom |
Digital PTZ, preset position |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input or line input, line output, built-in microphone (can be disabled), ring power, digital audio input, automatic gain control |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Onscreen Controls |
Electronic image stabilization |
|
Event Conditions |
Analytics, external input, supervised external input, edge storage events, virtual inputs through API |
|
Event Actions |
Overlay text, external output activation, play audio clip, zoom preset |
|
Built-in installation aids |
Remote zoom and focus, remote back focus, leveling assistant, pixel counter |
|
AXIS Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Secure boot |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
Aluminum casing |
|
Mounting |
¼”-20 tripod screw thread |
|
Sustainability |
PVC Free, BFR/CFR free, 0% recycled plastics, 4% bio-based plastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5.1 W, max 8.2 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-20 °C to 60 °C (-4 °F to 140 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 Safety IEC/EN/UL 62368-1 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 Cybersecurity ETSI EN 303 645 |
|
Dimensions |
214 x 80 x 68 mm (8.4 x 3.2 x 2.7 in) |
|
Weight |
790 g (1.7 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, stand, drill hole template, connector kit, RESISTORX® L-key |
|
Optional Lenses |
AXIS T8415 Wireless Installation Tool |
|
Optional Accessories |
AXIS T8415 Wireless Installation Tool AXIS Surveillance Cards |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
|
Warranty |
5 year |
