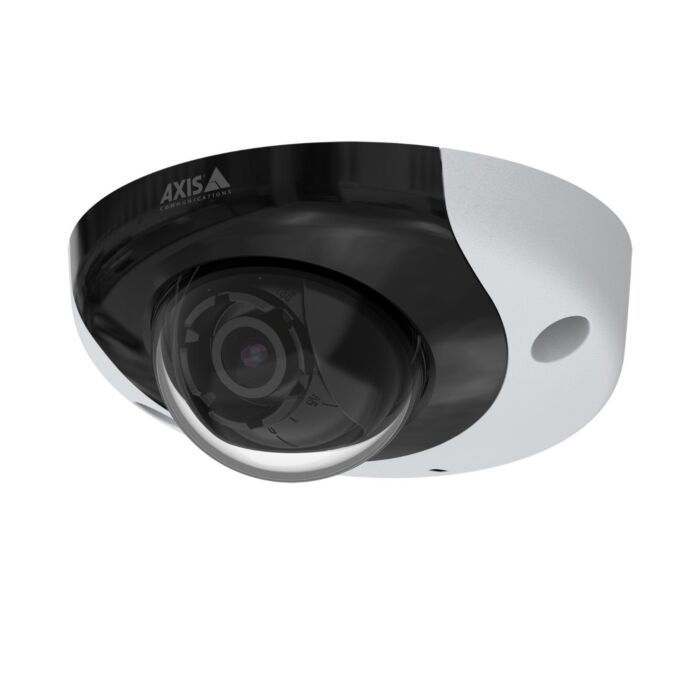

AXIS P3925-R Ceiling Angled Left

AXIS P3925-R Network Camera

AXIS P3935-LR Network Camera

AXIS P3935-LR offers cutting-edge onboard surveillance, complying with transportation standards. With superior imaging, IR, and enhanced security, ensure 24/7 protection. Secure your journey today.
SKU
P3935-LR

AXIS P3935-LR: Cutting-Edge Onboard Surveillance for Transportation

Experience unparalleled onboard surveillance with the AXIS P3935-LR, a top-tier industrial camera designed for vehicles like trains, buses, and emergency vehicles. Encased in a vandal-resistant, metal casing with an IK10 rating, it complies with stringent transportation industry standards (EN50155, EN45545, NFPA 130). The camera boasts superior imaging capabilities, featuring Axis Forensic WDR for high-quality images in varying light conditions and Lightfinder for sharp color images in low light. The built-in invisible IR LEDs enable video surveillance in complete darkness without distraction.

Perfectly optimized for the transportation sector, the AXIS P3935-LR ensures compliance with IP66 and IP67 standards, safeguarding against water, corrosion, and dust. With M12 and RJ45 connectors, installation is seamless in any vehicle. Its electronic image stabilization (EIS) guarantees stable video capture even during vibrations, making it ideal for police vehicles and ambulances. The camera's advanced security features include signed firmware, secure boot, and block view detection for comprehensive system protection. With powerful analytics capabilities, audio surveillance, and detection through a built-in microphone and external microphone input, the AXIS P3935-LR is the ultimate choice for secure and reliable onboard surveillance in the transportation industry.

Features:

  • Superior imaging with Forensic WDR and Lightfinder
  • Vandal-resistant, metal casing with IK10 rating
  • Compliance with EN50155, EN45545, NFPA 130
  • Invisible IR LEDs for complete darkness surveillance
  • Electronic Image Stabilization (EIS) for stable video capture

Applications:

  • Onboard surveillance for trains, buses, and emergency vehicles
  • Ideal for police vehicles and ambulances with forward-facing dashboard mounting
  • Transportation industry compliance with IP66 and IP67 ratings
  • Powerful analytics for customized surveillance solutions


Models

AXIS P3935-LR RJ45
AXIS P3935-LR M12

Image Sensor

1/2.9” Progressive scan RGB CMOS

Lens

2.8 mm, F1.6
Horizontal field of view: 110°
Vertical field of view: 62°
M12 mount, fixed iris
See Optional accessories for exchangeable lenses

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

Color: 0.06 lux at 30 IRE F1.6
B/W: 0.01 lux at 30 IRE F1.6, 0 lux with IR illumination on
Color: 0.12 lux at 50 IRE F1.6
B/W: 0.02 lux at 50 IRE F1.6, 0 lux with IR illumination on

Shutter Speed

1/33500 s to 2 s

Camera Angle Adjustment

Pan ±30°, tilt 15 - 90°, rotation ±175°

Model

ARTPEC-7

Memory

1 GB RAM, 512 MB Flash

Video Compression

H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG

Resolutions

1280x960 to 160x120
1920x1080 to 160x90

WDR

Forensic WDR

Frame Rate

Up to 25/30 fps (50/60 Hz) in all resolutions
45 fps in 720p
Capture mode 2MP 1920x1080 (16:9) @25/30 fps
Capture mode 1MP 1280x720 (16:9) @45 fps

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and Motion JPEG
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth
VBR/ABR/MBR H.264 and H.265
Video streaming indicator
Low latency mode

Multi-view Streaming

Up to 8 individually cropped out view areas

Image Settings

Compression, brightness, sharpness, contrast, white balance, Forensic WDR, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic overlay, 20 individual polygonal privacy mask, mirroring of images, defogging, electronic image stabilization
Scene profiles: forensic, vivid, traffic overview

Pan/Tilt/Zoom

Digital PTZ, preset positions, guard tour, control queue

Audio Streaming

Audio in, simplex

Audio Encoding

AAC- LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz Configurable bit rate

Audio Input/Output

External microphone input or line input, built-in microphone

Network Protocols

IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP
v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Video Hosting System (AVHS) with One-Click Connection One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and ONVIF® Profile T

Event Conditions

Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature
Edge storage: recording ongoing, storage disruption
I/O: manual trigger, virtual input
MQTT subscribe
Scheduled and recurring: scheduled event
Video: average bitrate degradation, day-night mode, live stream open, tampering

Event Actions

Day-night mode
Defog
Guard tours
Upload images or video clips: FTP, HTTP, HTTPS, SFTP, email and network share
Notification: HTTP, HTTPS, TCP and email
Overlay text
Preset positions
Record video: SD card and network share
SNMP trap messages
WDR mode
MQTT publish

Data Streaming

Event Data

Built-in installation aids

Pixel counter

Applications

Included
AXIS Video Motion Detection, active tampering alarmb Supported
AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard Support for AXIS Camera Application Platform enabling installation of third-party applications

Approvals

EMC

EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498,
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A,
Korea: KS C 9835, KS C 9832 Class A,
USA: FCC Part 15 Subpart B Class A
Rolling stock: EN 50121-3-2, EN 50121-3-4, IEC 62236-4

Safety

IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 EN 45545-2, NFPA 130c

Environment

IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of
Parts of NEMA 250 Type 4X (ingress of water and gasket test), IEC/EN 62262 IK10,
IEC 60721-3-5 Class 5M3 (vibration and shock), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64,
IEC 60068-2-78, IEC 60068–2–14
IEC/EN 61373 Category 1 Class B, EN 50155:2017 OT1/ST2

Network

NIST SP500–267

Cybersecurity

ETSI EN 303 645

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)

Network Security

IEEE 802.1x (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Casing

IP66/67-, NEMA 250 4X-, IP6K9K- and IK10+-rated aluminum casing, polycarbonate clear dome

Sustainability

PVC Free

Mounting

Inside vehicles and rolling stock

Power

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 IR illumination on: typical 6.6 W, max 11.8 W

Connectors

RJ45: male, 10BASE-T/100BASE-TX
M12: female, rugged, D-coded with rotatable coupling nut All connectors support PoE
3.5 mm audio in connector, mono
I/O 4-pin, 1 input, 1 output + 12 V DC/15 mA

IR Illumination

OptimizedIR with power-efficient, long-life 940 nm IR LEDs Range of reach 15 m (49 ft) or more depending on the scene

Storage

Support for microSD/microSDHC/microSDXC card with UHS Speed Class U1
Support for SD card encryption (AES-XTS-Plain64 256bit) Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com

Operating Conditions

Normal, IR off: -40 °C to 55°C (-40 °F to 131°F) Normal, IR on: -40 °C to 45°C (-22 °F to 113°F) Maximum (intermittent): 70 °C (158 °F)
Arctic Temperature Control: start-up at -40 °C (-40 °F) Humidity: 10-100% RH (condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)

Approvals

EMC

EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
VCCI Class A, RCM AS/NZS CISPR 32 Class A,
KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2,
IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498

Safety

IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC 62471, IS 13252

Environment

IEC/EN 61373 Category 1 Class B,
IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of
NEMA 250 Type 4X (ingress of water and gasket test),
IEC/EN 62262 IK10,
IEC 60721-3-5 Class 5M3 (vibration and shock),
EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78

Network

NIST SP500–267

Dimensions

Height: 49.4 mm (1.94 in), ø 110 mm (4.33 in)

Weight

RJ45: 400 g (0.88 lb)
M12: 410 g (0.90 lb)

Included Accessories

Installation guide, Windows® decoder 1-user license, drill hole template, lens tool, Resistorx® L-key, masking kit

Optional Accessories

Lenses
Lens M12 2.1 mm F1.8 IR: horizontal field of view 145°Lens M12 3.6 mm F1.8 IR: horizontal field of view 87°Lens M12 6 mm, F1.9 IR: horizontal field of view 56°
Lens M12 8 mm F1.8 IR: horizontal field of view 40°
Other
AXIS T94D02S Curved Mount Bracket, network coupler IP66, network cable coupler indoor

Video Management Software

AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Warranty

5–year warranty
