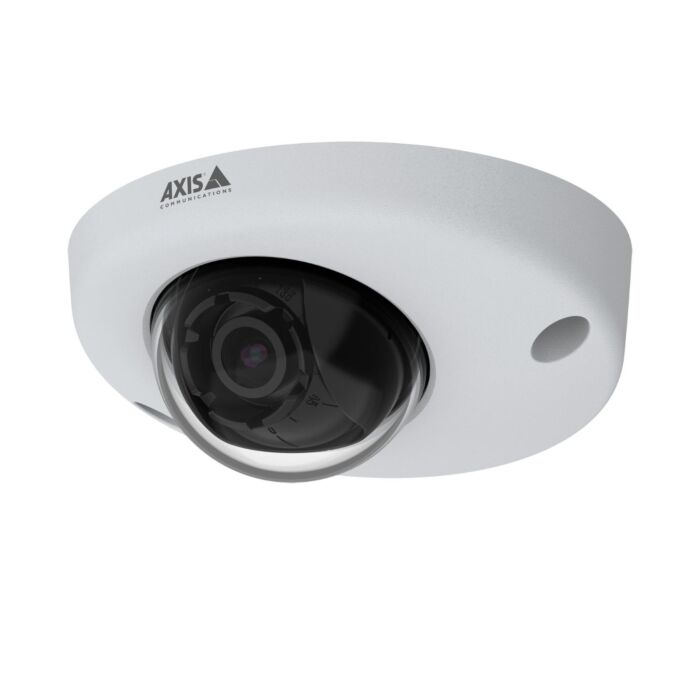

AXIS P3925-R Network Camera
AXIS P3925-R Network Camera: Advanced Onboard Surveillance Solution
Unveil a new era in onboard surveillance with the AXIS P3925-R Network Camera from Aegis Electronic Group. Engineered for the transportation industry, this industrial camera is specifically designed for use on vehicles such as trains, buses, and emergency vehicles, offering unparalleled imaging quality, enhanced security features, and extended analytics capabilities.
The AXIS P3925-R boasts a vandal-resistant metal casing with an IK10 rating and complies with industry regulations including EN50155, EN45545, and NFPA 130. Its robust design ensures protection against water, corrosion, and dust, making it ideal for challenging environments. Equipped with Forensic WDR and Lightfinder technologies, it excels in delivering high-quality images, even in varying light conditions, essential for surveillance in tunnels or under bridges.
This best-in-class dome camera provides electronic image stabilization (EIS), ensuring stable video capture during vehicle vibrations, making it perfect for applications in police vehicles and ambulances. With connectivity options such as M12 and RJ45 connectors, it can be effortlessly installed in any vehicle type.
Security is paramount with AXIS P3925-R, featuring signed firmware, secure boot, and advanced security functionalities to prevent unauthorized access and ensure the integrity of the system. Elevate your onboard surveillance with AXIS P3925-R, where innovation meets reliability.
Features:
- Vandal-resistant metal casing (IK10)
- Forensic WDR and Lightfinder technologies
- Electronic Image Stabilization (EIS)
- EN50155, EN45545, NFPA 130 compliant
- IP66, IP67 rated for water and dust protection
- Multiple connectivity options (M12, RJ45)
- Advanced security features (signed firmware, secure boot)
Applications:
- Onboard surveillance in trains, buses, and emergency vehicles
- Forward-facing dashboard mounting for police and ambulances
- Ideal for challenging environments with water, corrosion, and dust exposure
- Analytics capabilities for customized surveillance solutions in transportation
|
Models |
AXIS P3925-LRE RJ45 |
|
Image Sensor |
1/2.9” Progressive scan RGB CMOS |
|
Lens |
6.0 mm, F1.9 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.07 lux at 30 IRE F1.9 |
|
Shutter Speed |
1/33500 s to 2 s |
|
Camera Angle Adjustment |
Pan ±30°, tilt 15 - 90°, rotation ±175° |
|
Model |
ARTPEC-7 |
|
Memory |
1 GB RAM, 512 MB Flash |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
1280x960 to 160x120 |
|
WDR |
Forensic WDR |
|
Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Compression, brightness, sharpness, contrast, white balance, Forensic WDR, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic overlay, 20 individual polygonal privacy mask, mirroring of images, defogging, electronic image stabilization |
|
Pan/Tilt/Zoom |
Digital PTZ, preset positions, guard tour, control queue |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
|
Event Conditions |
Device status: above operating temperature, above or below |
|
Event Actions |
Guard tours |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Pixel counter |
|
Applications |
Included |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 EN 45545-2, NFPA 130c Environment IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of Network NIST SP500–267 Cybersecurity |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1x (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66/67-, NEMA 250 4X-, IP6K9K- and IK10+-rated aluminum casing with AR-coated tempered glass |
|
Sustainability |
PVC Free |
|
Mounting |
Outside vehicles and rolling stock |
|
Power |
Camera: Power over Ethernet (PoE) |
|
Connectors |
RJ45: male, 10BASE-T/100BASE-TX |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 20 m (65.6 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card with UHS Speed Class U1 |
|
Operating Conditions |
Normal: -40 °C to 55°C (-40 °F to 131°F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, Environment IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, Network NIST SP500–267 |
|
Dimensions |
160 x 116 x 63 mm (6.30 x 4.57 x 2.48 in) |
|
Weight |
RJ45: 770 g (1.70 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, lens tool, Resistorx® L-key, masking kit |
|
Optional Accessories |
Lenses |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
