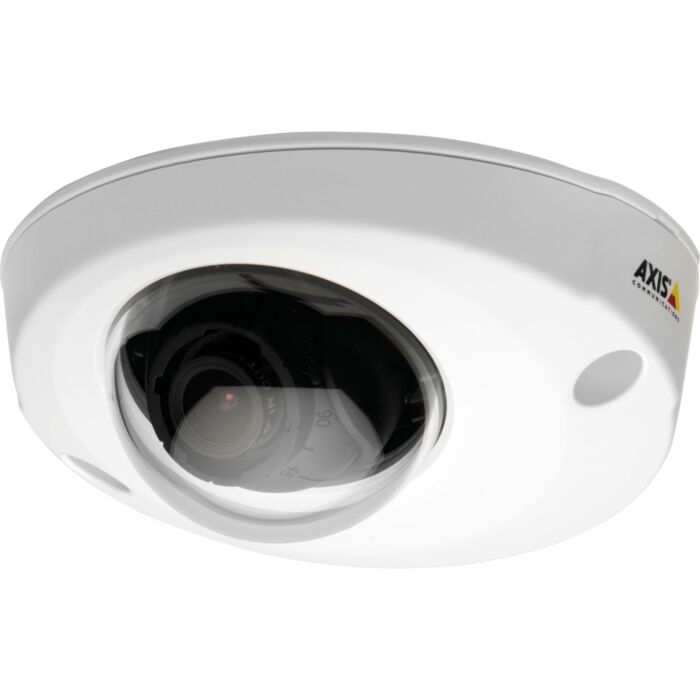

AXIS P3905-R Mk II Network Camera
AXIS P3905-R Mk II Network Camera: Cutting-Edge Mobile Surveillance
The AXIS P3905-R Mk II Network Camera stands as a pinnacle in the realm of mobile video surveillance, specifically engineered for deployment on vehicles such as buses, trains, subway cars, and emergency vehicles. Its robust construction, fortified against dust, water, vibrations, and temperature fluctuations, ensures unwavering performance in challenging environments. The camera's HDTV 1080p resolution, in conjunction with Wide Dynamic Range (WDR) and Axis Lightfinder technology, delivers unparalleled image clarity even in swiftly changing light conditions. The innovative Traffic Light mode enhances color differentiation in extremely dark scenes.
Designed with compliance in mind, AXIS P3905-R Mk II adheres to stringent transportation-industry regulations, including EN50155 standards, ensuring fire-safety and reliability. The camera’s versatility is showcased through optional outdoor housing, M12 or RJ45 connectors, and a choice of barebone versions. Axis Zipstream technology takes center stage, reducing storage and bandwidth usage by up to 50%, without compromising forensic detail. This feature makes it an ideal choice for cost-conscious deployments with a focus on data efficiency.
Installation is seamless, supported by a lens tool that simplifies achieving a level image with the desired field of view. Upgrading from earlier versions is effortless, cementing the camera's reputation for user-friendly adaptability in diverse configurations. Elevate your mobile surveillance capabilities with the AXIS P3905-R Mk II, where cutting-edge technology meets rugged reliability.
Features:
- HDTV 1080p surveillance with Zipstream
- Rugged design for challenging conditions
- Compliance with EN50155 standards
- WDR and Lightfinder technologies for optimal image quality
- Traffic Light mode for enhanced color delineation
- Wide range of horizontal field of view options
- Quick and reliable installation with included lens tool
Applications:
- Transportation industry surveillance
- Onboard video monitoring for buses, trains, and emergency vehicles
- Industrial machine vision applications
- Security in challenging environmental conditions
|
Models |
AXIS P3905-R Mk II RJ45 |
|
Image Sensor |
1/2.9" progressive scan RGB CMOS |
|
Lens |
3.6 mm, F2.0 |
|
Light Sensitivity |
HDTV 1080p 25/30 fps with Lightfinder |
|
Shutter Speed |
1/32500 s to 2 s |
|
Camera Angle Adjustment |
Pan ±30°, tilt 15 - 90°, rotation ±175° |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
|
Resolutions |
1920x1080 to 160x90 |
|
WDR |
WDR - forensic capture |
|
Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264 and Motion JPEG |
|
Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, text and image overlay, 20 individual privacy mask, mirroring of images, Traffic Light mode |
|
Pan/Tilt/Zoom |
Digital PTZ, preset positions, guard tour, control queue |
|
Security |
Password protection, IP address filtering, HTTPSa encryption, network access control, digest authentication, user access log, centralized certificate management |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
|
Event Conditions |
Analytics, time scheduled, edge storage events |
|
Event Actions |
Record video: SD card and network share |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Pixel counter |
|
Applications |
Included |
|
Casing |
Aluminum and polycarbonate casing |
|
Mounting |
Inside vehicles and rolling stock |
|
Memory |
512 MB RAM, 256 MB Flash |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 2.9 W, max 3.6 W |
|
Connectors |
RJ45: male, 10BASE-T/100BASE-TX |
|
Storage |
Support for microSD/microSDHC/microSDXC card and encryption Support for recording to network-attached storage (NAS) |
|
Operating Conditions |
Normal: -40 °C to 60 °C (-40 °F to 140 °F) Maximum (intermittent): 70 °C (158 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC/EN/UL 62368-1, EN 45545, UN ECE R118, parts of NFPA 130d, IS 13252 Environment IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66/67, NEMA 250 Type 4X, IEC/EN 62262 IK08, Network NIST SP500–267 |
|
Dimensions |
Height: 49 mm (1 15/16 in) ø 109 mm (4 3/16 in) |
|
Weight |
RJ45: 241 g (0.53 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, top cover tool, lens tool, Allen key Resistorx® |
|
Optional Accessories |
Lenses |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
